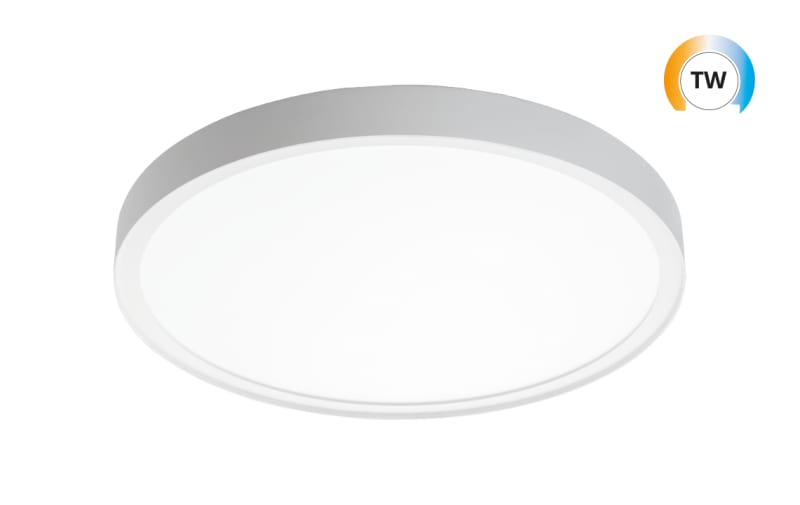

DISC 480 White TW Jointim 2000-4000K
Part number606116EAN / GTIN7021986061161HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606116 DISC 480 WHITE TW LEDDIM 2000-4000K, 36W, Ra>80, SDCM3, L80/B20 100.000, KL II, IP20, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 606116
- EAN / GTIN
- 7021986061161
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Colour temperature
- 4000 K
- Efficacy
- 108 lm/W
- Lumen
- 3900lm (@4000K)
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 36W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 20, B16: 32, C10: 20, C16: 32
- Type of light source
- LED
- Luminous flux
- 3900lm (@4000K)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0.07
- Stroboscopic flicker (SVM)
- 0.84
- Photobiological safety
- RG 0
- Type
- TW LEDDim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986061161
- SAP 1200596598
- Code 82977315
Product Documentation
Document preview: DISC 480 White TW Jointim 2000-4000K (606116) — Specification sheet
