SG Armaturen

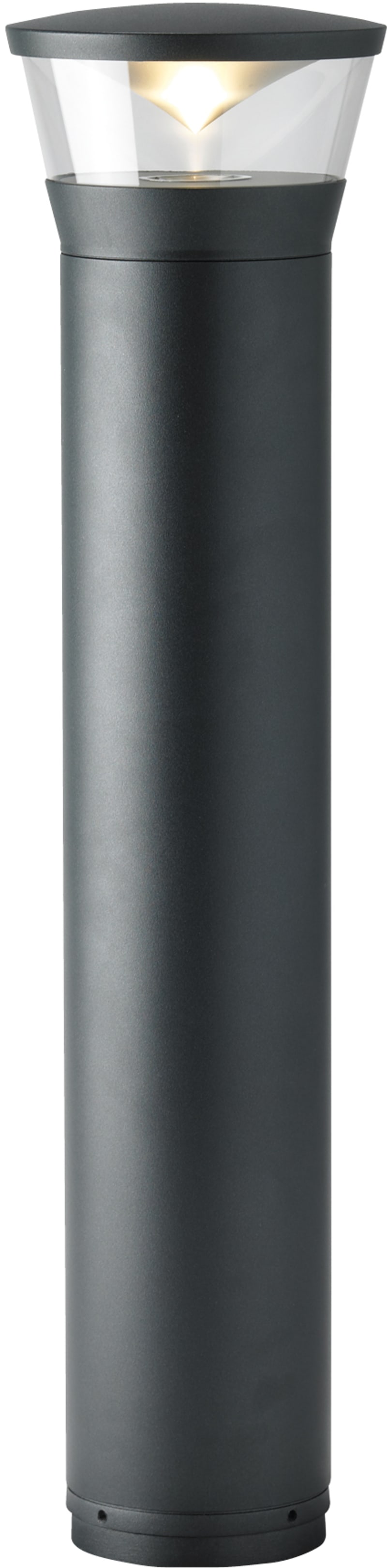

Circled Bollard SOFT 16W/940 Black
Part number8246093857EAN / GTIN5703821176491HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246093857 CircLED Bollard Soft 16W 4000K Black.
Technical Specifications
- Manufacturer part number (MPN)
- 8246093857
- EAN / GTIN
- 5703821176491
- Sales unit
- pcs
- Power
- 16 W
- Efficacy
- 48 lm/W
- Lumen
- 770lm
- IP Class
- IP65
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L80/B10>
- Mounting
- Onto surfaces or ground anchor, Outdoor
- System wattage
- 16W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 770lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Indirect
- UGR
- UGR<25
- Type
- On/Off
- Luminaire class
- Class II
- IK Class
- IK09
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- B
- Housing
- Die-cast aluminium
- Colour
- Black (20% gloss)
- Optics
- Polycarbonat (PC)
- Height (mm) H
- 900
- Diameter (mm) D
- 220
- Weight (kg) gross/net
- 10.4 / 10
- Packaging dimensions (mm)
- 965 x 265 x 282
- Protection class according to IEC 61140
- II
- Width
- 220 mm
- Height
- 900 mm
- Conductor cross section
- 6 mm²
- RAL-number
- 9004
- Housing colour
- Black
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 90-100
- Diameter
- 220 mm
- Luminous intensity
- 770 cd
- Number of poles
- 2
- Length
- 900 mm
- Height/depth
- 900 mm
- Housing material
- Aluminium
- Material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Material cover
- Plastic, transparent
- Impact strength
- IK09
- Degree of protection (IP)
- IP65
- Suitable for number of light sources
- 1
- Beam angle
- > 80° - Extreme wide beam
- Max. system power
- 16 W
- Rated luminous flux according to IEC 62722-2-1
- 770 lm
- Colour of light
- White
- Type of wiring
- Suitable for loop-through wiring
- Rated life time L80/B10 at 25 °C
- 50000 h
- Luminaire efficacy
- 48 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Device emplacement
- Outdoor positioning
- Power factor
- 100
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 5703821176491
- SAP 1200056105
- Code 81904637
Product Documentation
Document preview: Circled Bollard SOFT 16W/940 Black (8246093857) — Specification sheet
