SG Armaturen

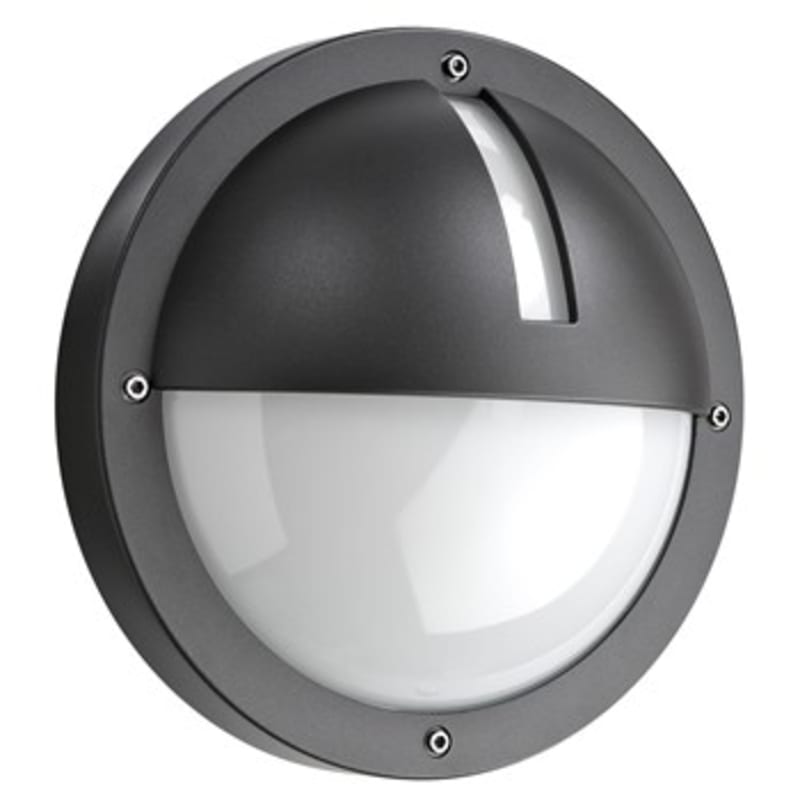

UNO Graphite 11,5W/830 IP65 Twilight
Part number643644EAN / GTIN7021986436440HS code8536.90
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 643644 Uno graphite 1100 LED 3000K with twilight relay 230V.
Technical Specifications
- Manufacturer part number (MPN)
- 643644
- EAN / GTIN
- 7021986436440
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP65
- Power
- 11.5 W
- Efficacy
- 55 lm/W
- Lumen
- 440lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 440lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
- Type
- Twilight
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Module
- 1100
- Connection
- Screwless terminal block
- Diameter (mm) D
- 270
- Depth (D)
- 130
- Weight (kg) gross/net
- 1.72 / 1.485
- Packaging dimensions (mm)
- 270 x 270 x 142
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986436440
- SAP 1000704783
- Code 8659736
Product Documentation
Document preview: UNO Graphite 11,5W/830 IP65 Twilight (643644) — Specification sheet
