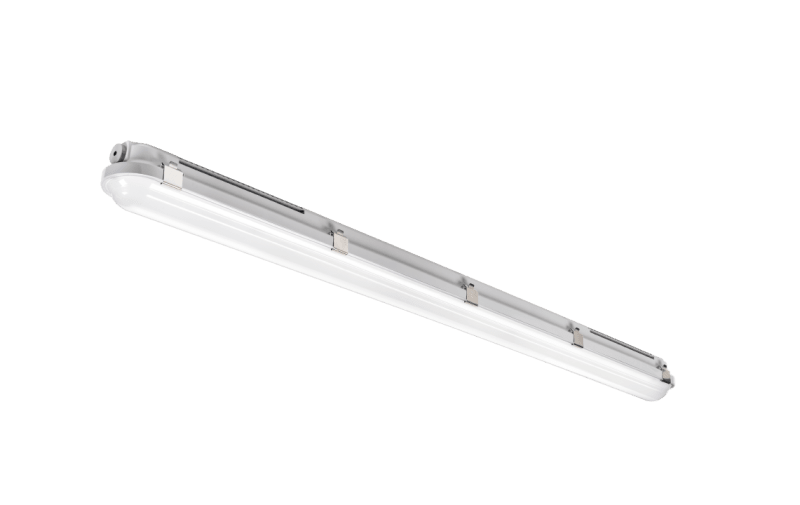

TYSNES66 1200 34W/8400 DALI

SG Armaturen 120039 TYSNES 66 1200 4000K DALI, 34W, 5510lm, Ra>80, SDCM 3, L80/B20>100.000, IK10, IP66.

Manufacturer part number (MPN)

120039

EAN / GTIN

7021981200398

Sales unit

pcs

Package quantity

8 pcs

Power

34 W

Efficacy

162 lm/W

Lumen

5510lm

IP Class

IP66

Colour temperature

4000K

Colour rendering (Ra)

Ra>80

Lifetime

100,000 L80/B20>

Mounting

Surface, Indoor

System wattage

34W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 14, B16: 24, C10: 25, C16: 40

Leakage current (mA)

0.29

Type of light source

LED

Light source included

Yes

Luminous flux

5510lm

Programmable with CLO

Yes (affects lumen output)

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Opal

Beam angle

117°

UGR

UGR<25

Type

DALI-2

Luminaire class

Class I

IK Class

IK10

Fire protection class

850°C - 30s

Contains light source of energy class

C

Breeam

Fulfils Hea 01 for flicker free lighting

Food Safety approved (IFS and HACCP)

Yes

Housing

UV-stabilized polycarbonate

Colour

Grey

Optics

UV-stabilized polycarbonate

Module

1200

Connection

5-pole screwless terminal block with 5x2,5mm² through wiring

Length (mm) L

1200

Width (mm) W

85

Height (mm) H

80

Weight (kg) gross/net

1.68 / 1.53

Packaging dimensions (mm)

1225 x 85 x 90

Country of origin

China

HS Code

9405.11

• EAN 7021981200398
• SAP 1200695506
• Code 83556993
