SG Armaturen
TUBE Micro Table Black 8W/927
Part number320814EAN / GTIN7021983208149HS code9405.21
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

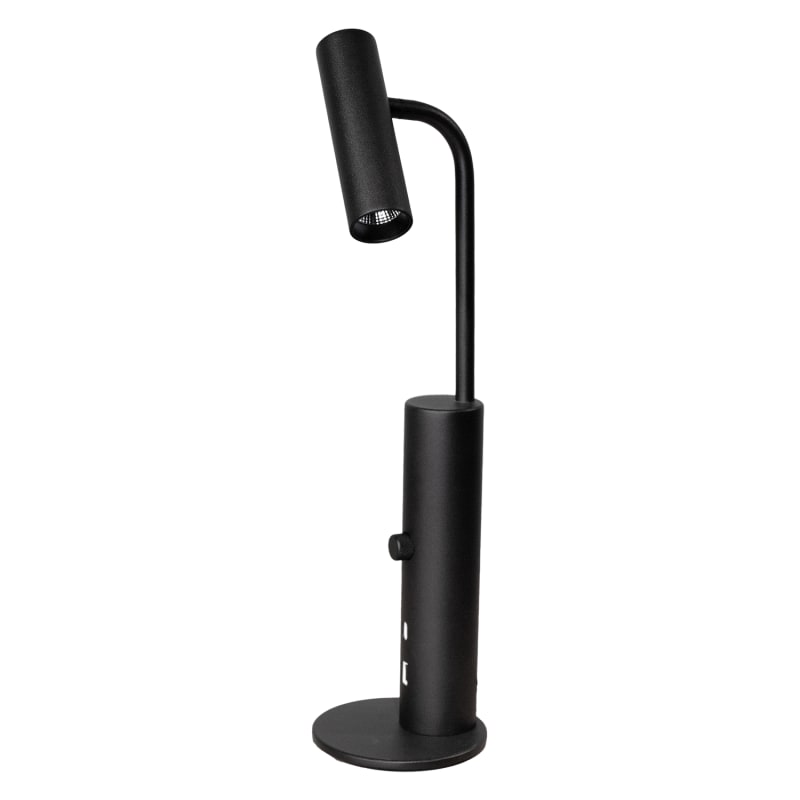

SG Armaturen 320814 TUBE MICRO TABLE BLACK 2700K, 8W, 350lm, Ra 98, SDCM 2, L90/B10 50000, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 320814
- EAN / GTIN
- 7021983208149
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 8 W
- Efficacy
- 44 lm/W
- Lumen
- 350lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 8W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 180, B16: 290, C10: 180, C16: 290
- Type of light source
- LED
- Luminous flux
- 350lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 36°
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0.08
- Stroboscopic flicker (SVM)
- 0.01
- Type
- Integrated dimmer
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Length (mm) L
- 471
- Width (mm) W
- 120
- Height (mm) H
- 120
- Weight (kg) gross/net
- 2.12 / 1.492
- Packaging dimensions (mm)
- 525 x 165 x 165
- Mounting method
- Stand (base)
- Protection class according to IEC 61140
- II
- Width
- 120 mm
- Housing colour
- Black
- Dimmable
- Yes
- Voltage type
- DC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 90-100
- Length
- 471 mm
- Height/depth
- 120 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Desk luminaire
- Suitable for number of light sources
- 1
- Max. system power
- 8 W
- Rated luminous flux according to IEC 62722-2-1
- 350 lm
- Colour of light
- White
- Colour consistency (McAdam ellipse)
- SDCM2
- No dim function
- Yes
- Light distributor
- Reflector
- Luminaire efficacy
- 44 lm/W
- Operation by Bluetooth
- No
- Dimming DALI-2
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Compatible with Casambi
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.21
Cross References
- EAN 7021983208149
- SAP 1200854461
- Code 84075270
Product Documentation
Document preview: TUBE Micro Table Black 8W/927 (320814) — Specification sheet
