SG Armaturen

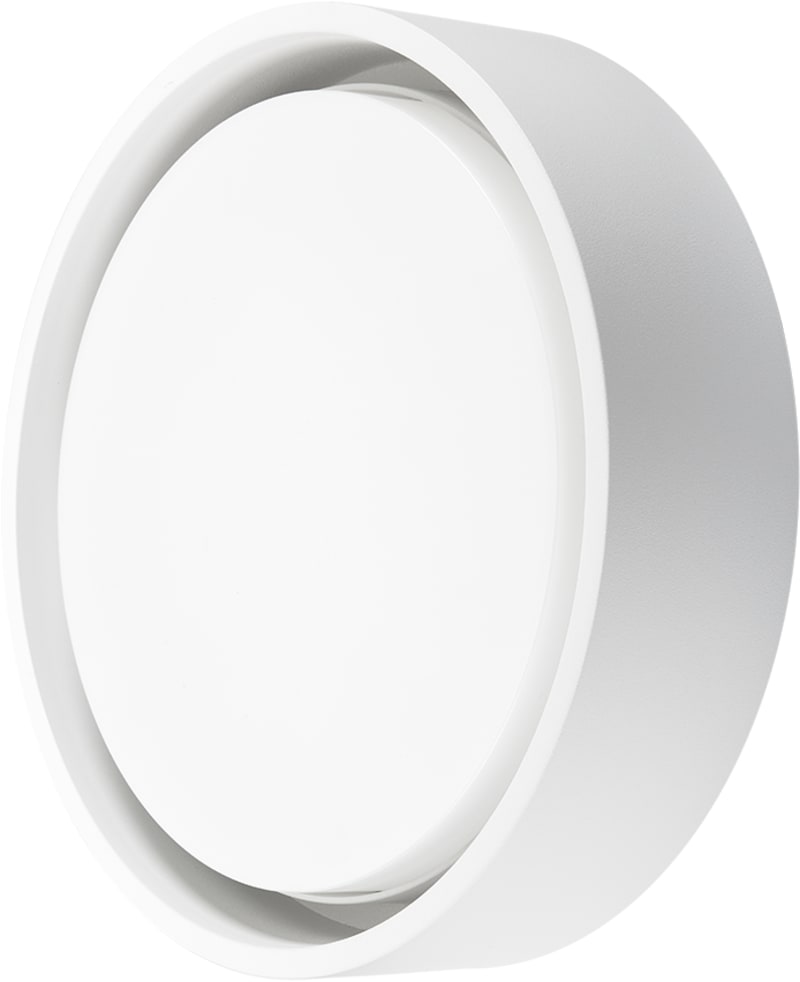

Frame Round MAXI White 17W/830 Sensor
Part number605143EAN / GTIN7021986051438HS code8536.90
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605143 FRAME ROUND MAXI WHITE LED.
Technical Specifications
- Manufacturer part number (MPN)
- 605143
- EAN / GTIN
- 7021986051438
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 17 W
- Efficacy
- 131 lm/W
- Lumen
- 2220lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2220lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Sensor
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 325
- Weight (kg) gross/net
- 3.1 / 2.7
- Packaging dimensions (mm)
- 332 x 332 x 92
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986051438
- SAP 1200117305
- Code 81972253
Product Documentation
Document preview: Frame Round MAXI White 17W/830 Sensor (605143) — Specification sheet
More from SG Armaturen
SG Armaturen
WAX Flood 27° 45W 4000K Black IP66
8246091503
SG Armaturen

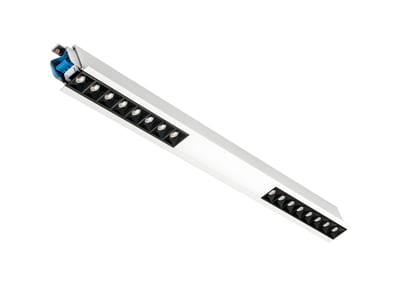

Lineal Recessed Cubic 840 White 4K DALI
8246096252
SG Armaturen

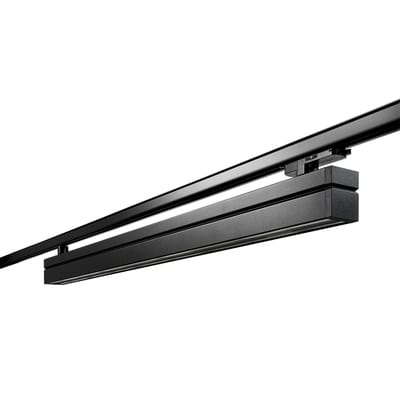

Sector PRO 3T Black 70W/830 DALI
8246096414
SG Armaturen

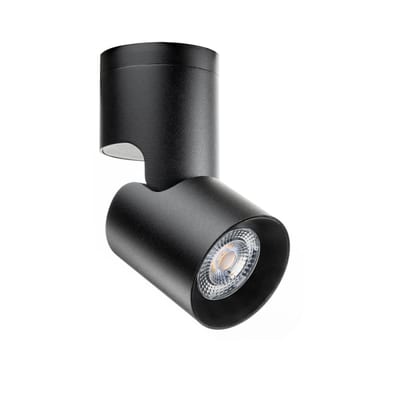

Aneto MINI S Black 2700K
320986
SG Armaturen

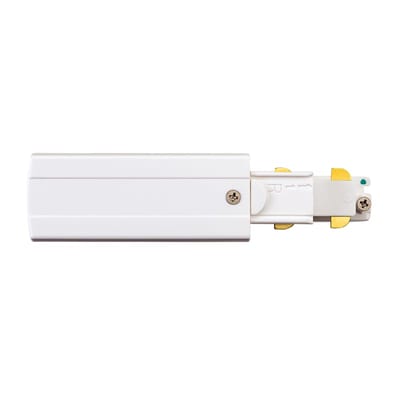

Shopline 3T DALI Endetilkobl H (r) White
312508
SG Armaturen

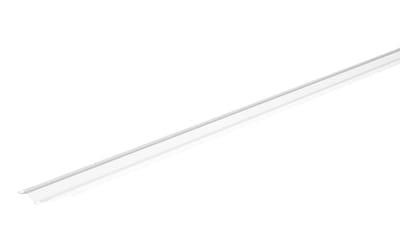

ANTI BALL TOP Cover 1500 156mm
8249044887
SG Armaturen

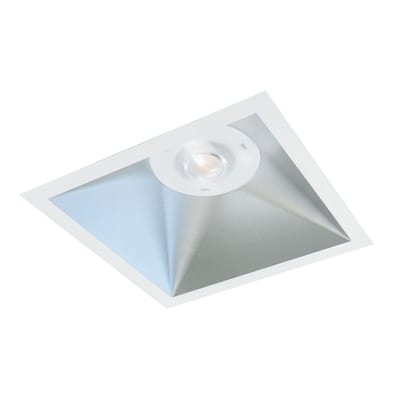

RAX SOFT Square 200 Satin 19W/840
212581
SG Armaturen

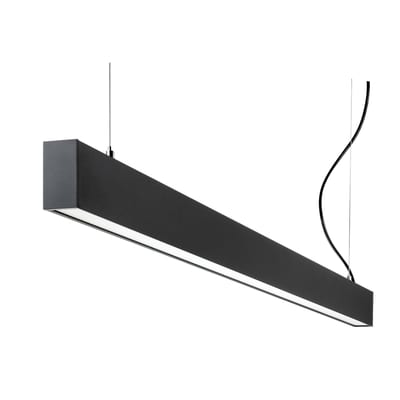

Inspire 1200 Black Prism 29W/830
