SG Armaturen

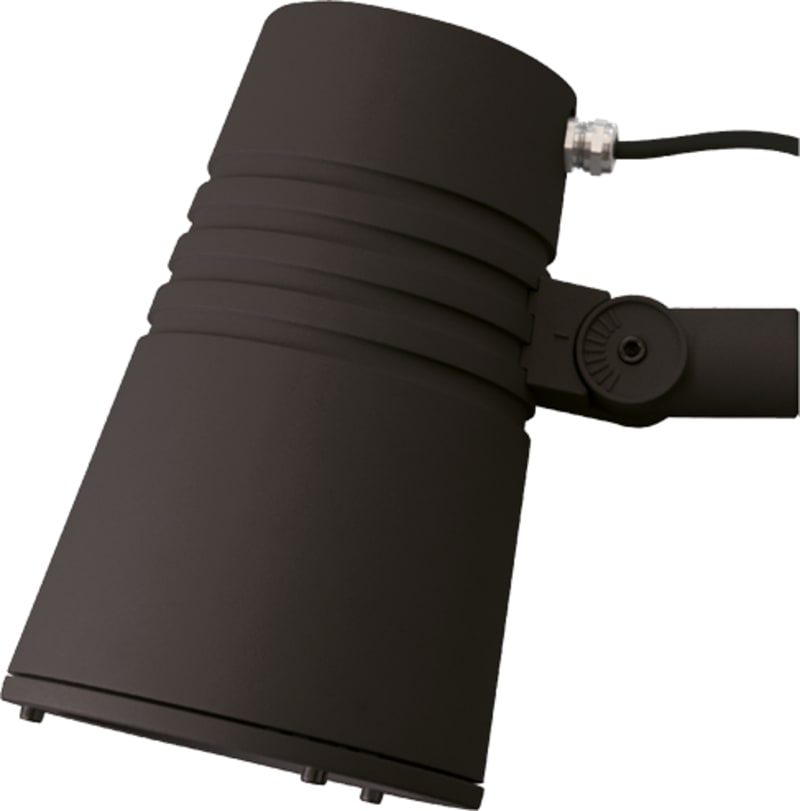

WAX Flood 27° 45W 4000K Black IP66
Part number8246091503EAN / GTIN5703821173247
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246091503 Wax Flood 27° 45W - Ra>80 - CD IP65 Class II - 4000K Black.
Technical Specifications
- Manufacturer part number (MPN)
- 8246091503
- EAN / GTIN
- 5703821173247
- Sales unit
- pcs
- IP rating
- IP66
- Power
- 45 W
- Efficacy
- 103 lm/W
- Lumen
- 3500lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Pole, wall, bollard or earthing rod, Outdoor
- System wattage
- 34W
- Voltage
- 220-240V
- Type of light source
- LED
- Luminous flux
- 3500lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector Flood 27dg.
- Beam angle
- 27°
- ULOR (<1%)
- Yes, up to 59° tilt angle
- Type
- Lumistep LS8 50% Dim
- Luminaire class
- Class II
- IK Class
- IK07
- Surge protection
- Integrated (min. 4 kV)
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Die-cast aluminium
- Colour
- Black (20% gloss)
- Optics
- Tempered glass
- Cable
- Cable 2x1mm² 10m
- Wind projected area
- 0,0403m² - Max 5,3 kg
- Height (mm) H
- 268
- Diameter (mm) D
- 180
- Weight (kg) gross/net
- 4.7 / 4.5
- Packaging dimensions (mm)
- 275 x 275 x 275
Cross References
- EAN 5703821173247
- SAP 1200056086
- Code 81904646
Product Documentation
Document preview: WAX Flood 27° 45W 4000K Black IP66 (8246091503) — Specification sheet
More from SG Armaturen
SG Armaturen
Lineal Recessed Cubic 840 White 4K DALI
8246096252
SG Armaturen
Sector PRO 3T Black 70W/830 DALI
8246096414
SG Armaturen
Aneto MINI S Black 2700K
320986
SG Armaturen
Shopline 3T DALI Endetilkobl H (r) White
312508
SG Armaturen
ANTI BALL TOP Cover 1500 156mm
8249044887
SG Armaturen
RAX SOFT Square 200 Satin 19W/840
212581
SG Armaturen
Inspire 1200 Black Prism 29W/830
212852

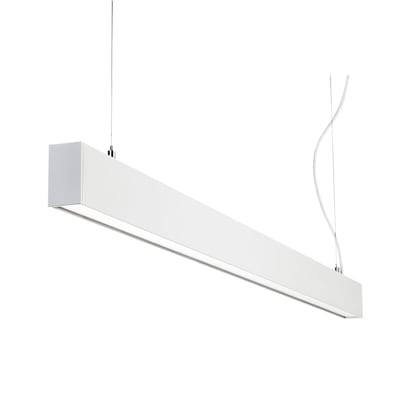

SG Armaturen
