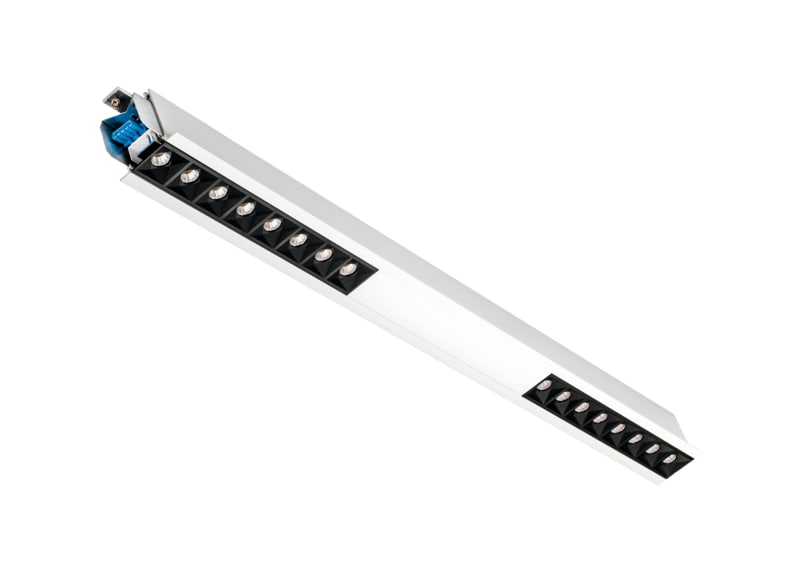

Lineal Recessed Cubic 840 White 4K DALI
Part number8246096252EAN / GTIN5703821181341HS code9405.11
Lighting & Electrical Accessories
LED Panels
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246096252 LINEAL RECESSED CUBIC 840 WHITE 4K DALI, 27W, 2220lm, Ra>80, IP20, KLI.
Technical Specifications
- Manufacturer part number (MPN)
- 8246096252
- EAN / GTIN
- 5703821181341
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Efficacy
- 82 lm/W
- Lumen
- 2220lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 27W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Leakage current (mA)
- 0.01
- Luminous flux
- 2220lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Cubic Optic Black
- UGR
- UGR<19
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Polycarbonat (PC)
- Module
- 840
- Connection
- 5-pole Winsta mini with 5x1,5mm2 through wiring
- Length (mm) L
- 841
- Width (mm) W
- 62
- Height (mm) H
- 62
- Ceiling void depth (mm)
- 105
- Weight (kg) gross/net
- 2 / 1.8
- Packaging dimensions (mm)
- 970 x 82 x 72
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821181341
- SAP 1200621116
- Code 83029720
Product Documentation
Document preview: Lineal Recessed Cubic 840 White 4K DALI (8246096252) — Specification sheet
