SG Armaturen

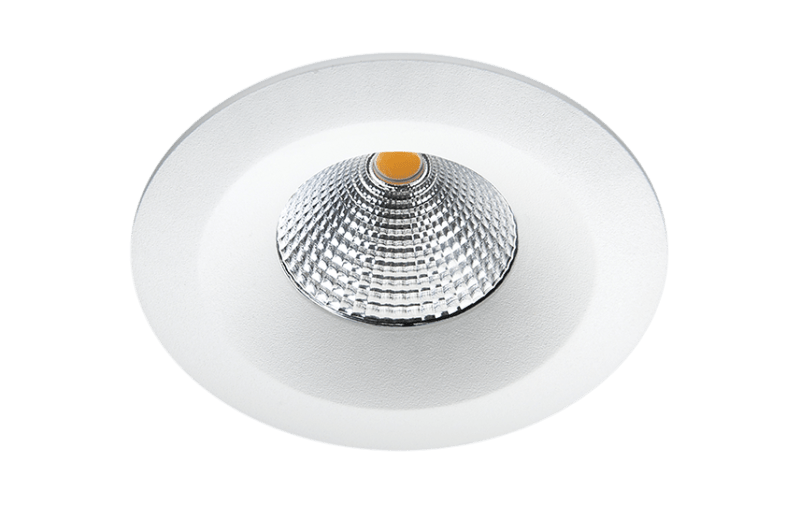

Uniled Isosafe White 7W/930
Part number904301EAN / GTIN7021989043010HS code8543.70
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 904301 Low-profile downlight which can be mounted direct in insulation.
Technical Specifications
- Manufacturer part number (MPN)
- 904301
- EAN / GTIN
- 7021989043010
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 7 W
- Efficacy
- 81 lm/W
- Lumen
- 690lm
- Wattage
- 7W
- IP Class
- IP54
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 8.5W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 77, B16: 123, C10: 77, C16: 123
- Type of light source
- LED
- Luminous flux
- 690lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Matte white (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Height (mm) H
- 37
- Diameter (mm) D
- 94
- Cut-out (mm)
- 76
- Ceiling void depth (mm)
- 35
- Weight (kg) gross/net
- 0.48 / 0.4
- Packaging dimensions (mm)
- 115 x 100 x 95
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7021989043010
- SAP 1000801085
- Code 81456320
Product Documentation
Document preview: Uniled Isosafe White 7W/930 (904301) — Specification sheet
More from SG Armaturen
SG Armaturen
Junistar Isosafe Brushed Steel 7W/D2W
901232
SG Armaturen
Duett Graphite 10W/827 IP65
623393
SG Armaturen
Herning Bollard 900 Ø60 Black
623975
SG Armaturen
Frame 1+1,5X Black (78161)
SG Armaturen
Prelude SQ Black 16W/927 IP44
111388
SG Armaturen

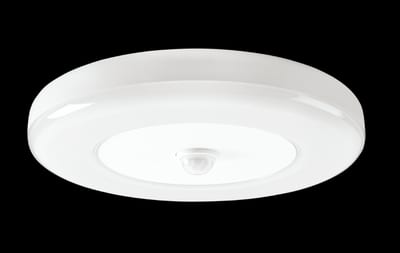

ETNE 10W/840 820LM PIR Sensor
143095
SG Armaturen

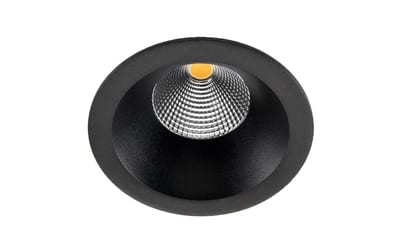

SOFT Isosafe Black 6W D2W
903223
SG Armaturen

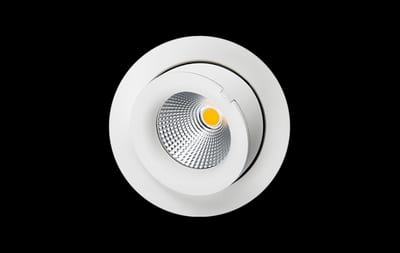

Junistar EXCL. White 9W/930
