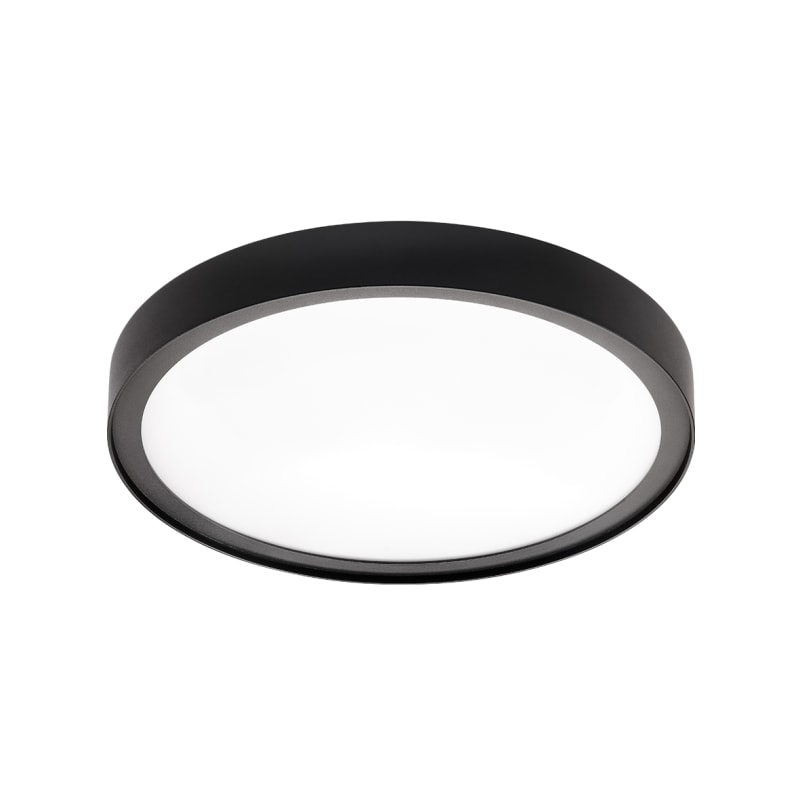

DISC 360 Black 3000K Sensor DIM
Part number606225EAN / GTIN7021986062250HS code8536.90
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606225 DISC 360 BLACK 3000K SENSOR DIM, 21W, 2430lm, Ra>80, SDCM3, L80/B20 100.000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606225
- EAN / GTIN
- 7021986062250
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Efficacy
- 116 lm/W
- Lumen
- 2430lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 21W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 2430lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,09
- Stroboscopic flicker (SVM)
- 0,05
- Type
- Sensor Dim
- Sensor type
- Pure motion sensor, independent of lux level
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 57
- Diameter (mm) D
- 360
- Weight (kg) gross/net
- 2.7 / 2.5
- Packaging dimensions (mm)
- 375 x 380 x 60
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986062250
- SAP 1200854471
- Code 84075260
Product Documentation
Document preview: DISC 360 Black 3000K Sensor DIM (606225) — Specification sheet
More from SG Armaturen
SG Armaturen
Stripline END CAP KIT Corner Black
391451
SG Armaturen
ZIP TUBE Pendant MINI 555mm (320526)
SG Armaturen

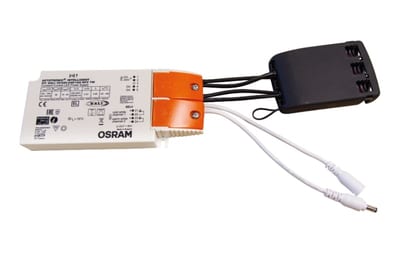

Driverkit Sense TW DALI DT8 800MA
820314
SG Armaturen

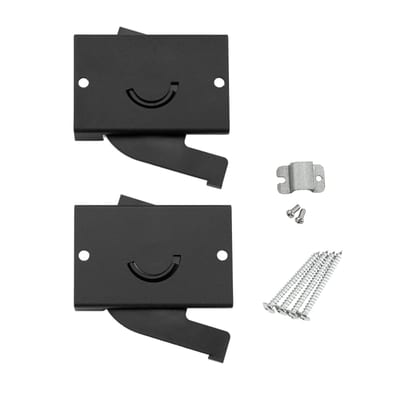

Lineal 80 Surface Bracket Black
320942
SG Armaturen

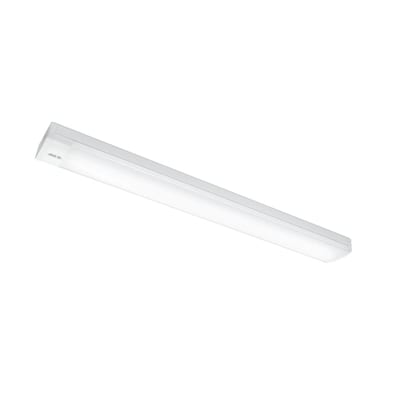

Hurdal MAXI Connect 1200 37W/840
113145
SG Armaturen

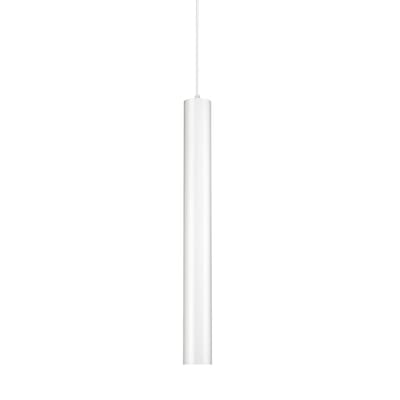

ZIP TUBE Pendant MINI 555mm (320524)
SG Armaturen

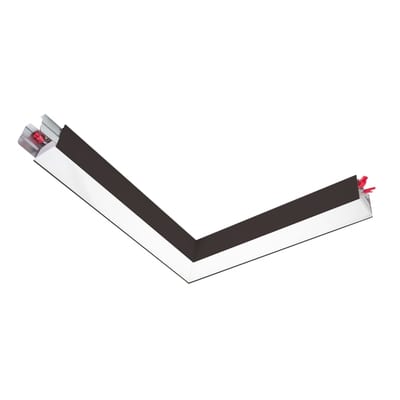

Lineal 80 Corner D Black DALI
320932
SG Armaturen

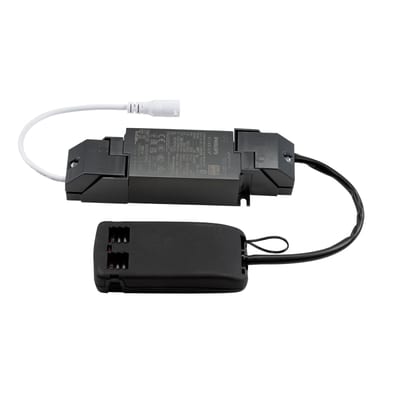

Connect Driver KIT Wireless 700MA
