SG Armaturen

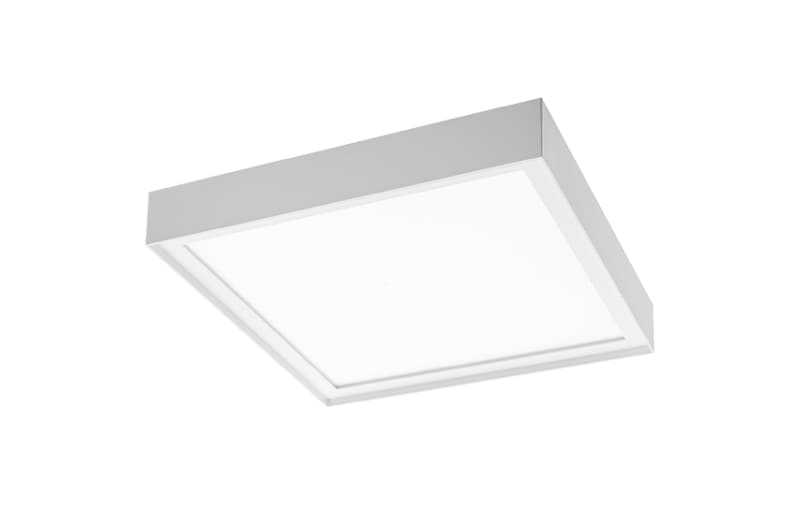

DISC 285X285 White 22W/830 DALI
Part number606059EAN / GTIN7021986060591HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606059 DISC 285X285 WHITE 3000K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 606059
- EAN / GTIN
- 7021986060591
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 22 W
- Efficacy
- 114 lm/W
- Lumen
- 2280lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 20W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 35, B16: 55, C10: 57, C16: 92
- Type of light source
- LED
- Luminous flux
- 2280lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Length (mm) L
- 283
- Width (mm) W
- 283
- Height (mm) H
- 55
- Weight (kg) gross/net
- 2.53 / 2.098
- Packaging dimensions (mm)
- 293 x 298 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986060591
- SAP 1200374551
- Code 82387212
Product Documentation
Document preview: DISC 285X285 White 22W/830 DALI (606059) — Specification sheet
More from SG Armaturen
SG Armaturen
Herning MINI Pole Head 3/4K
623982
SG Armaturen
Facet D/In White 35W/840 Pull cord (8246090342)
SG Armaturen

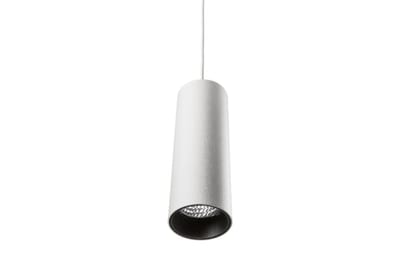

TUBE ECO Pendant White 23W/930 DALI
314489
SG Armaturen

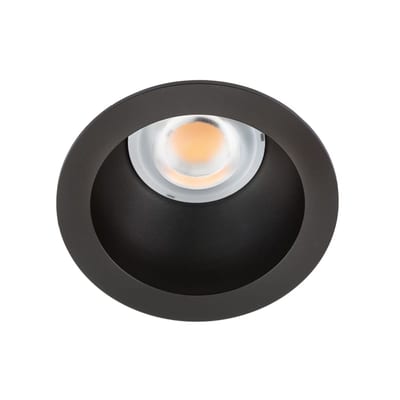

RAX SOFT 100 Black 1800 4000K Ra>80
212963
SG Armaturen

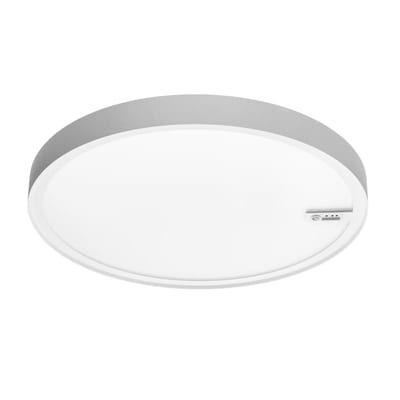

DISC 480 Connect White 3000K Ra>90
606239
SG Armaturen

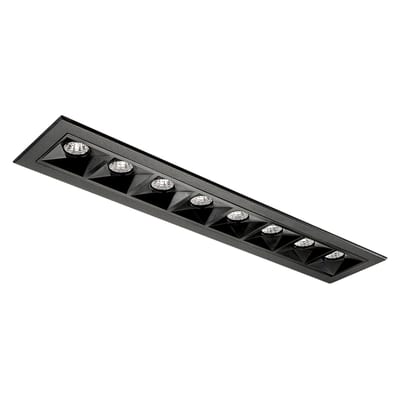

Inspire R 300 Black 15W/940
212431
SG Armaturen

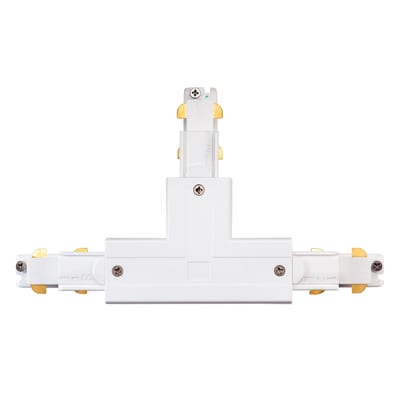

Shopline 3T DALI T-Joint V (L1) White
312524
SG Armaturen

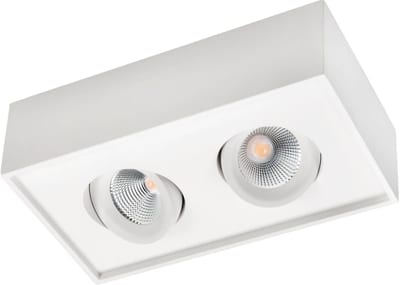

CUBE LUX White 2X7W/927 DALI
