SG Armaturen

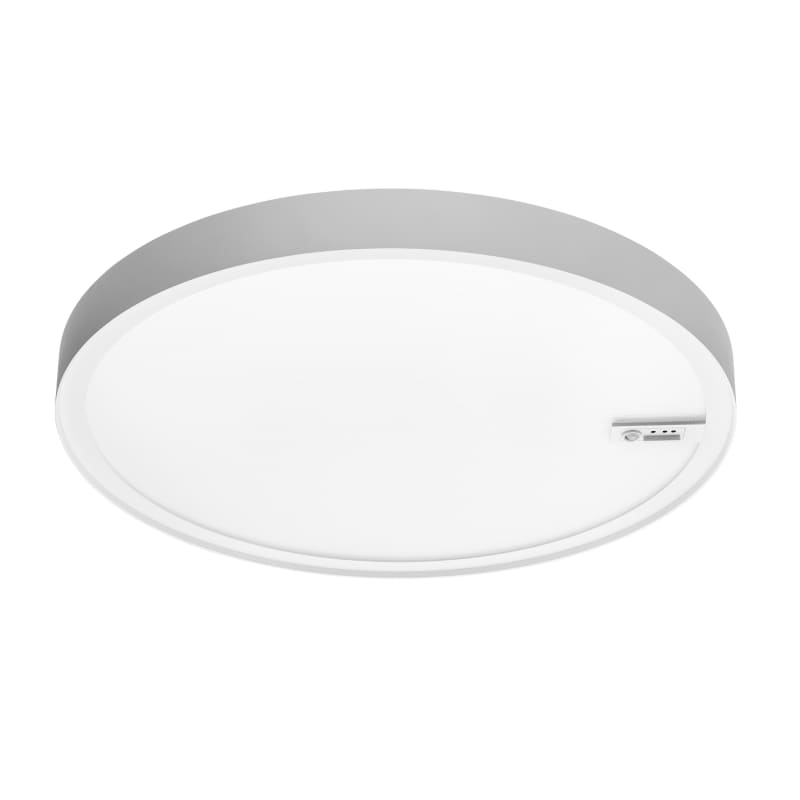

DISC 480 Connect White 3000K Ra>90
Part number606239EAN / GTIN7021986062397HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606239 DISC 480 CONNECT WHITE 3000K RA>90, 36W, 3026lm, Ra>90, SDCM 3, L80/B20>100,000, IK10, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 606239
- EAN / GTIN
- 7021986062397
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Colour temperature
- 3000 K
- Colour rendering index
- Ra >90
- Efficacy
- 107 lm/W
- Lumen
- 3100lm
- IP Class
- IP20
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 29W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 20, B16: 32, C10: 33, C16: 54
- Leakage current (mA)
- 0.50
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 3100lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Type
- Connect
- Luminaire class
- Class II
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White
- Optics
- Acrylic (PMMA)
- Module
- 480
- Connection
- 3 pole Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 470
- Weight (kg) gross/net
- 4.845 / 4.433
- Packaging dimensions (mm)
- 490 x 485 x 60
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062397
- SAP 1200888903
- Code 84131585
Product Documentation
Document preview: DISC 480 Connect White 3000K Ra>90 (606239) — Specification sheet
