SG Armaturen

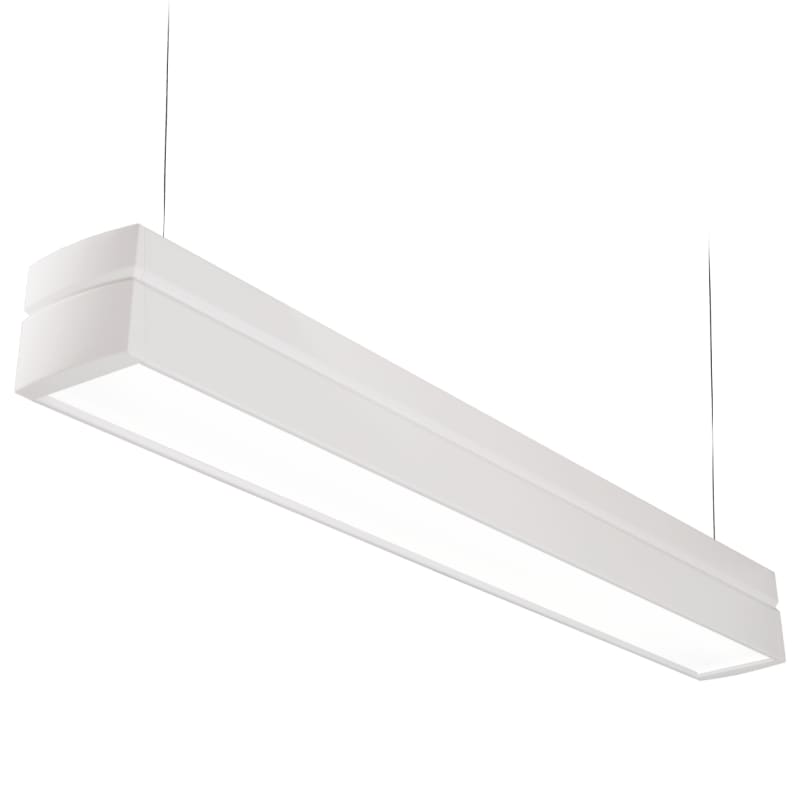

Facet II 1700 D/In White 52W/830 DALI
Part number8241000572EAN / GTIN5703821205276HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8241000572 FACET II D/In 52W 8450lm 3000K Ra>80 CD-DA.
Technical Specifications
- Manufacturer part number (MPN)
- 8241000572
- EAN / GTIN
- 5703821205276
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 52 W
- Efficacy
- 163 lm/W
- Lumen
- 8450lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 52W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0.08
- Type of light source
- LED
- Luminous flux
- 8450lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 58/42%
- Optic
- Lens C, prismatic Conical
- UGR
- UGR<19
- Photobiological safety
- RG 1
- Type
- DALI-2
- Luminaire class
- Class I
- Contains light source of energy class
- D
- Housing
- Sheet steel
- Colour
- White (RAL 9010, 20% gloss)
- Optics
- Acrylic (PMMA)
- Module
- 1700
- Wire set
- 2x2m wire kit w/loop M4
- Cable
- Cable 5x0,75mm² 2,5m white
- Length (mm) L
- 1756
- Width (mm) W
- 112
- Height (mm) H
- 80
- Weight (kg) gross/net
- 7.9 / 7.7
- Packaging dimensions (mm)
- 1790 x 114 x 90
- Operation by Bluetooth
- No
- With movement sensor
- No
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Steel
- Housing colour
- White
- Voltage type
- AC/DC
- Type of control gear
- LED operating device current-controlled
- Dimming LineSwitch
- No
- Dimming Its Wave Reduction
- No
- No dim function
- No
- Colour consistency (McAdam ellipse)
- SDCM3
- Light outlet
- Direct/indirect
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- I
- Emergency power supply integrated
- No
- Max. system power
- 52 W
- Rated luminous flux according to IEC 62722-2-1
- 8450 lm
- Colour of light
- White
- Luminaire efficacy
- 163 lm/W
- Colour rendering index CRI
- 80-89
- Power factor
- 100
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 112 mm
- Height/depth
- 80 mm
- Length
- 1756 mm
- Type of wiring
- Ending
- Number of poles
- 5
- Conductor cross section
- 0.75 mm²
- Dimmable
- Yes
- With light sensor
- No
- With presence detector
- No
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821205276
- SAP 1200730401
- Code 83859176
Product Documentation
Document preview: Facet II 1700 D/In White 52W/830 DALI (8241000572) — Specification sheet
