SG Armaturen

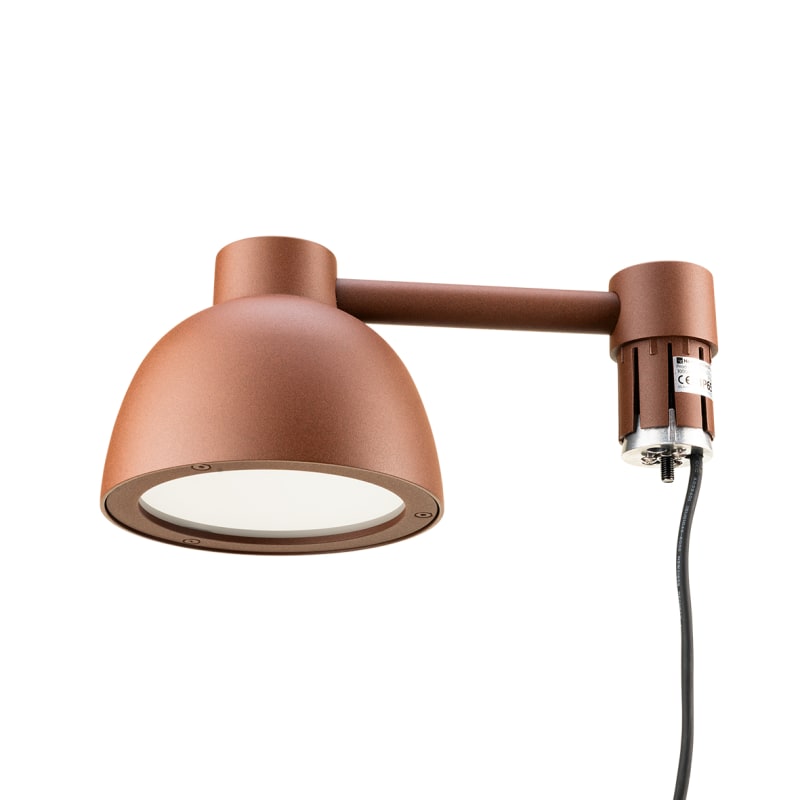

Herning MINI Pole Head 3/4K
Part number623982EAN / GTIN7021986239829HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623982 HERNING MINI POLE HEAD Ø60 CORTEN 3000/4000K, Ra>80, SDCM3, L80/B20 50.000, IK06, IP65.
Technical Specifications
- Manufacturer part number (MPN)
- 623982
- EAN / GTIN
- 7021986239829
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Efficacy
- 73/78/72/76lm/W
- Lumen
- 580/620/1220/1300lm
- Wattage
- 8W/17W
- IP Class
- IP65
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Pole, wall, bollard or earthing rod, Outdoor
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 30, B16: 47, C10: 50, C16: 80
- Type of light source
- LED
- Luminous flux
- 580/620/1220/1300lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Glass
- UGR
- UGR<22/25
- Photobiological safety
- RG 1
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK06
- Contains light source of energy class
- E/E/E/E
- Housing
- Aluminium
- Module
- Ø60
- Cable
- Cable 2x1mm² 5,0m
- Length (mm) L
- 342
- Width (mm) W
- 182
- Height (mm) H
- 144
- Weight (kg) gross/net
- 2.55 / 2.02
- Packaging dimensions (mm)
- 340 x 190 x 200
- Protection class according to IEC 61140
- II
- Width
- 182 mm
- Conductor cross section
- 2.5 mm²
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 3 m
- Number of poles
- 2
- Length
- 220 mm
- Height/depth
- 155 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Material cover
- Glass opal
- Impact strength
- IK06
- Degree of protection (IP)
- IP65
- Suitable for number of light sources
- 1
- Max. system power
- 17 W
- Colour of light
- White
- Remote control
- None
- Colour consistency (McAdam ellipse)
- SDCM3
- Luminaire efficacy
- 76 lm/W
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986239829
- SAP 1200985701
- Code 84311270
Product Documentation
Document preview: Herning MINI Pole Head 3/4K (623982) — Specification sheet
More from SG Armaturen
SG Armaturen
Facet D/In White 35W/840 Pull cord (8246090342)
SG Armaturen
TUBE ECO Pendant White 23W/930 DALI
314489
SG Armaturen
RAX SOFT 100 Black 1800 4000K Ra>80
212963
SG Armaturen
DISC 480 Connect White 3000K Ra>90
606239
SG Armaturen
Inspire R 300 Black 15W/940
212431
SG Armaturen
Shopline 3T DALI T-Joint V (L1) White
312524
SG Armaturen
CUBE LUX White 2X7W/927 DALI
902566
SG Armaturen

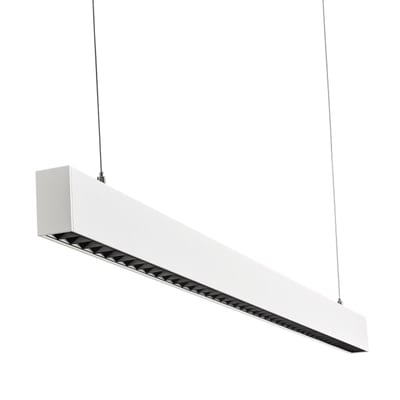

Inspire 1200 White 34W/840 DIM 1× PULL CORD
212475
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 623982?
- 623982 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 623982.
- What is the HS code for 623982?
- The customs tariff (HS) code for 623982 is 9405.42.
- Who manufactures 623982?
- 623982 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 623982?
- Yes — the 623982 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 623982?
- The minimum order quantity is 1.
- Is 623982 available?
- Yes — 623982 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
