SG Armaturen
DCL Wall Outlet, White
Part number77610EAN / GTIN7021987761015HS code8536.69
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

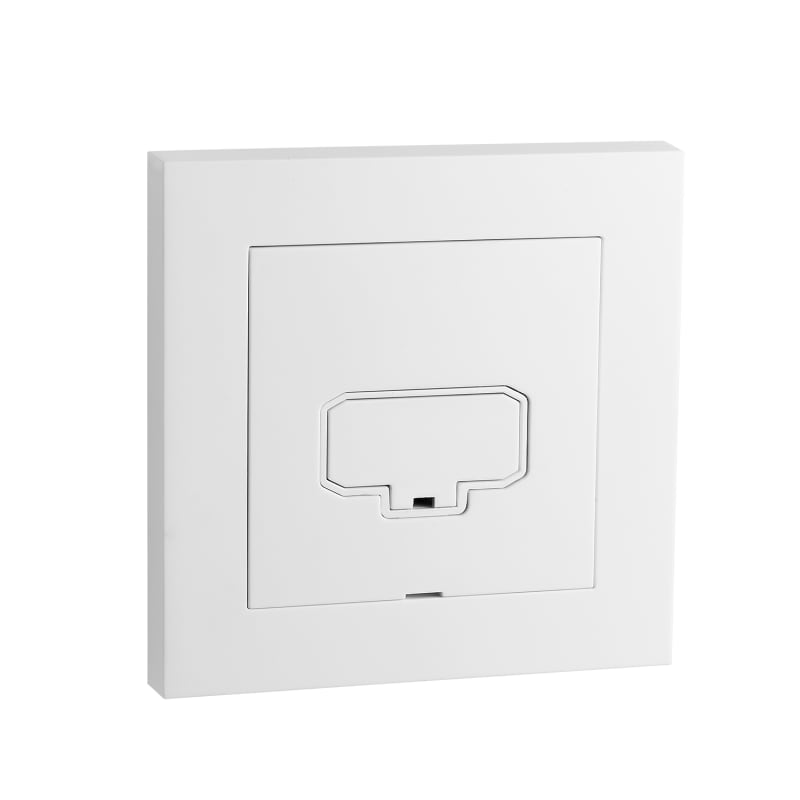

SG Armaturen 77610 DCL wall outlet, white.
Technical Specifications
- Manufacturer part number (MPN)
- 77610
- EAN / GTIN
- 7021987761015
- Sales unit
- pcs
- Package quantity
- 6 pcs
- IP Class
- IP20
- Mounting
- Indoor
- Voltage
- 250V
- Frequency (Hz)
- 50/60Hz
- Housing
- Polycarbonat (PC)
- Colour
- White (RAL 9003)
- Halogen free
- Yes
- Length (mm) L
- 84
- Width (mm) W
- 84
- Height (mm) H
- 38
- Weight (kg) gross/net
- 0.105 / 0.08
- Packaging dimensions (mm)
- 84 x 84 x 38
- Number per pack
- 6
- Nominal current
- 6 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Model
- DCL
- Number of units
- 1
- Lockable
- No
- With hinged lid
- No
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 1
- Number of phases
- 2
- With enhanced contact protection
- No
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9003
- Concurrently switching neutral conductor
- Yes
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP21
- Device width
- 84 mm
- Device height
- 10 mm
- Device depth
- 29 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Number of active contacts (flat)
- 2
- Min. depth of built-in installation box
- 30 mm
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- With built-in bluetooth speaker
- No
- Protective contact
- Flat
- Number of loop throughs
- 1
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7021987761015
- SAP 1200730388
- Code 83859185
Product Documentation
Document preview: DCL Wall Outlet, White (77610) — Specification sheet
