SG Armaturen

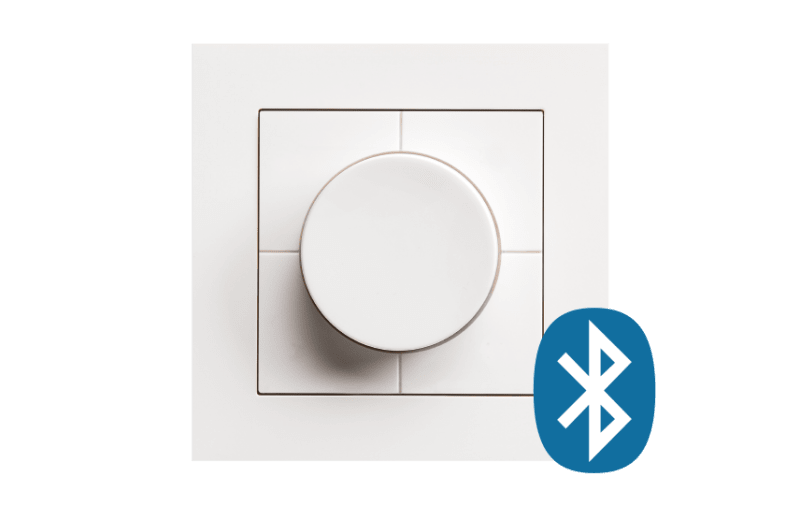

Jointim Smart Master White
Part number820386EAN / GTIN7021988203866HS code8538.90
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820386 LEDDIM MASTER.
Technical Specifications
- Manufacturer part number (MPN)
- 820386
- EAN / GTIN
- 7021988203866
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Product segment
- Smart home
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with complete housing
- Colour
- White
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 1 W
- Frequency
- 50–60 Hz
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9003
- Serial dimmer
- Yes
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal power
- 2.4–400 VA
- Nominal voltage
- 220–240 V
- Control voltage
- 220–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 84 mm
- Device height
- 84 mm
- Device depth
- 48 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 29 mm
- App control via Bluetooth
- Yes
- Nominal power resistive load
- 400 W
- Nominal power capacitive load
- 400 VA
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 320 W
- Min. brightness controllable
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7021988203866
- SAP 1200549261
- Code 82882200
Product Documentation
Document preview: Jointim Smart Master White (820386) — Specification sheet
More from SG Armaturen
SG Armaturen
Metro DECO Graphite GU10 2X4,5W/827
623701
SG Armaturen
Junistar SOFT Black 9W/927
903213
SG Armaturen
TUBE ECO 3T White 26W/930 32°
312475
SG Armaturen

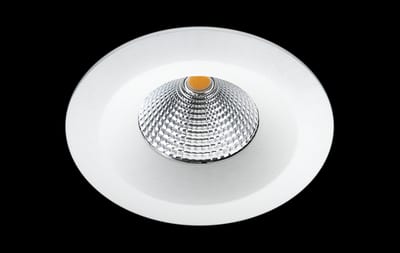

Uniled Isosafe White 7W/927
904201
SG Armaturen

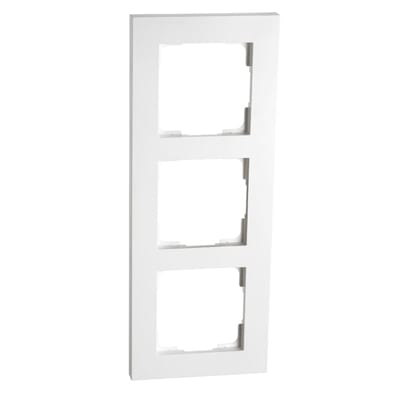

Frame 90mm 3X White (78140)
SG Armaturen

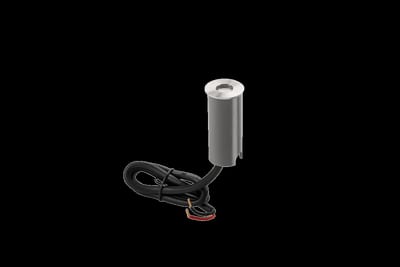

LUNA MINI 24V 1,5W/830 62LM
630016
SG Armaturen

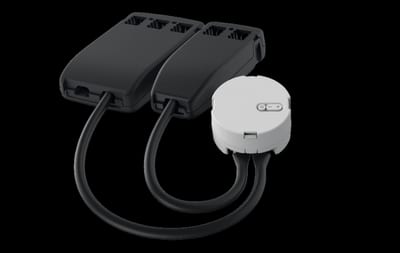

DALI FOR Phase-cut PILL
820382
SG Armaturen

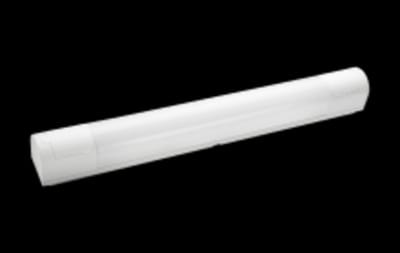

Prelude White 15W/927 IP44 2XPLUG
