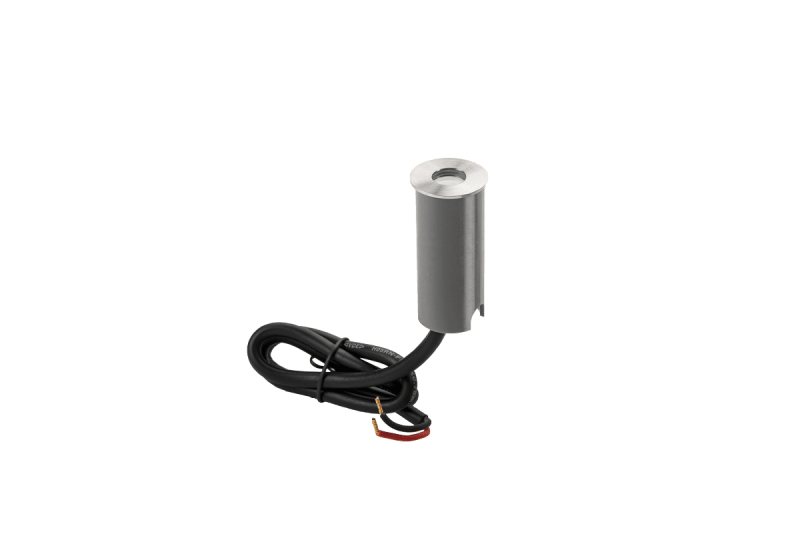

LUNA MINI 24V 1,5W/830 62LM

SG Armaturen 630016 L80/B20>50 000 hours, 92lm, 62 lm/W, IK10, IP67.

Manufacturer part number (MPN)

630016

EAN / GTIN

7021986300161

Sales unit

pcs

Package quantity

120 pcs

Voltage

24 V

Power

1.5 W

Luminous flux

62 lm

Efficacy

61 lm/W

Lumen

92lm

IP Class

IP67

Colour temperature

3000K

Colour rendering (Ra)

Ra>80

Lifetime

50,000 L80/B20>

Mounting

Recessed, Outdoor

System wattage

1.5W

Type of light source

LED

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Lens

UGR

UGR<22

Photobiological safety

RG 1

Type

Dimmable, depending on the driver

Luminaire class

Class III

IK Class

IK06

Contains light source of energy class

D

Housing

Aluminium and stainless steel

Colour

Graphite

Optics

Acrylic (PMMA)

Length (mm) L

46

Width (mm) W

28

Height (mm) H

46

Cut-out (mm)

25

Weight (kg) gross/net

0.145 / 0.132

Packaging dimensions (mm)

100 x 65 x 50

Protection class according to IEC 61140

III

Width

28 mm

Outer diameter

28 mm

Lamp holder

None

Conductor cross section

1 mm²

Housing colour

Anthracite

Dimmable

No

Voltage type

DC

Suitable for lamp power

1.5 W

Type of control gear

LED operating device voltage-controlled

Adjustable

No

Colour rendering index CRI

80-89

Built-in width

25 mm

Built-in diameter

25 mm

Number of poles

2

Length

28 mm

Height/depth

46 mm

Lamp type

LED not exchangeable

Built-in length

25 mm

Electrical connection with connector system

No

Material cover

Glass transparent

Impact strength

IK06

Over rollable

Yes

Nominal voltage

24 V

Degree of protection (IP)

IP67

With light source

Yes

Max. load

320 kg

Suitable for number of light sources

1

With control gear

No

Beam angle

41-80° - Wide beam

Max. system power

1.5 W

Rated luminous flux according to IEC 62722-2-1

92 lm

Colour of light

White

Constant light output (CLO)

No

IFTTT support available

No

Type of wiring

Ending

LED nominal current at constant current

300 mA

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Its Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Light distributor

Diffuser lens/optic/panel

Luminaire efficacy

61 lm/W

Dimming DSI

No

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

A++

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Dimming DALI-2

No

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Exchangeable control gear

No

Compatible with Casambi

No

Built-in height/depth

56 mm

Country of origin

China

HS Code

9405.42

• EAN 7021986300161
• SAP 1200243991
• Code 82204934
