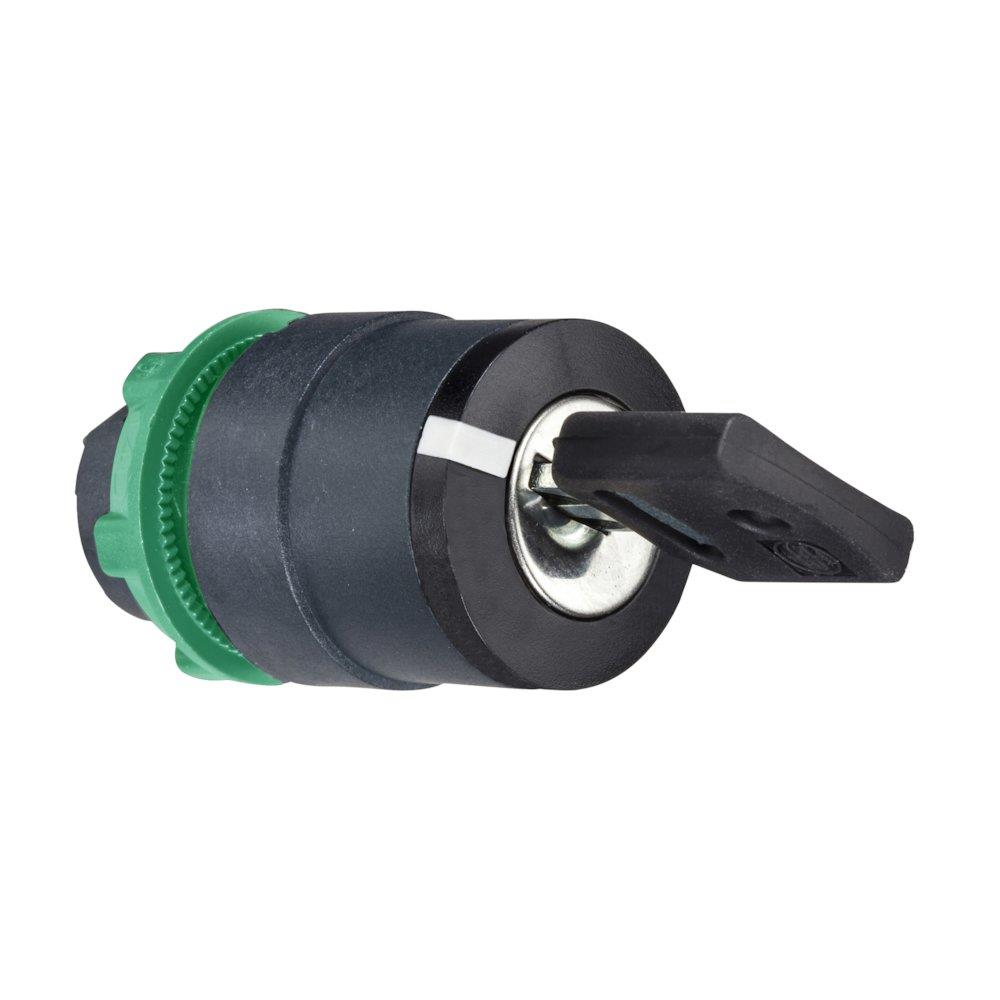

Schneider ZB5 Key Handle - Harmony XB5, 3PCS 3389110136548

Schneider ZB5 Key Handle. Rotary switches and key switches (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB5, number of posts 3 pcs. Supplied under manufacturer part number ZB5AG3D, EAN 3389110136548, HS code 8538.90, country of origin France.

Product type

Rotary switches and key switches

Product group

Push buttons and signal units

Series

Harmony XB5

Number of posts

3 pcs

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

0.5317 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

ZB5AG3D

Range of product

Harmony XB5

Product or component type

Head for key selector switch

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

stay put

Operator profile

Black key switch

Operator position information

3 positions +/- 45°

Type of keylock

Dom 8D1

Key withdrawal position

Center

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

72 mm

Product weight

0.057 kg

Mechanical durability

1000000 cycles

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C3 for <6 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts using single blocks in rear mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-1; UL 508; IEC 60947-5-1; JIS C8201-5-1; IEC 60947-5-4; CSA C22.2 No 14; JIS C8201-1

Product certifications

DNV; CSA; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

EAN

3389110136548

HS Code

8538.90
