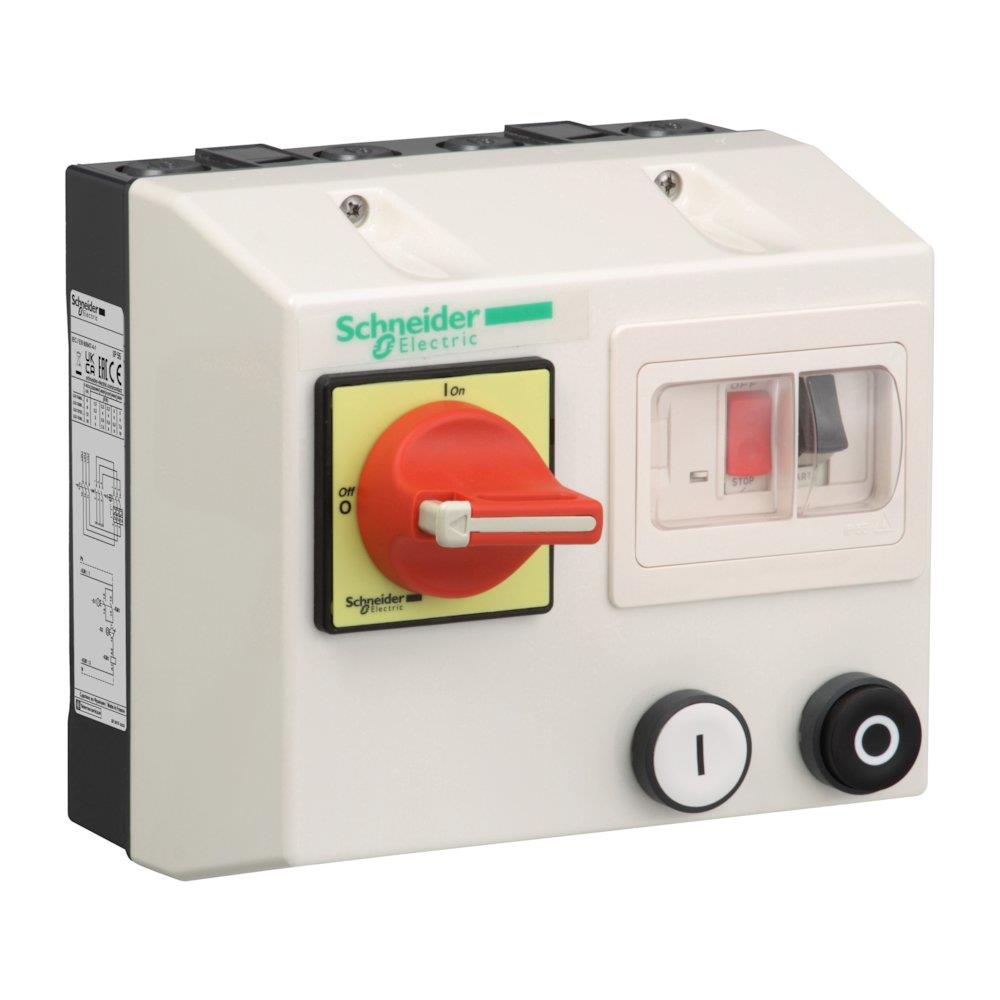

Schneider LG1D Motor Starter - 230V, 5.5kW, 65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider LG1D Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 230 V, power 5.5 kW, protection class (ip) 65. Supplied under manufacturer part number LG1D122P716, EAN 3389110775815, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 230 V
- Power
- 5.5 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Octamethylcyclotetrasiloxane, Octrizole
- Carbon footprint (EPD)
- 19.3165 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LG1D122P716
- Range
- TeSys
- Product name
- TeSys LG
- Device short name
- LG1D
- Product or component type
- Enclosed DOL starter
- Device application
- Safety
- Utilisation category
- AC-3
- Device composition
- Contactor; Switch disconnector; Circuit-breaker
- Motor power kW
- 3 kW at 220/230 V AC 50/60 Hz; 5.5 kW at 400/415 V AC 50/60 Hz; 5.5 kW at 440 V AC 50/60 Hz
- Thermal protection adjustment range
- 9…14 A
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- Control type
- Push-button start white I; Push-button stop black O; Rotary handle emergency stop red
- Cable entry number
- 4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom
- Width
- 175 mm
- Height
- 165 mm
- Depth
- 165 mm
- Product weight
- 1.27 kg
- Standards
- IEC 60947-4-1; IEC 60204-1
- Product certifications
- CE; UKCA
- Material
- Polycarbonate
- IK degree of protection
- IK07 conforming to IEC 60529
- IP degree of protection
- IP55 conforming to IEC 60529
- Environmental characteristic
- Standard environment
- Warranty (in months)
- 18
- EAN
- 3389110775815
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110775815
- MPN LG1D122P716
More from Schneider Electric
Schneider Electric

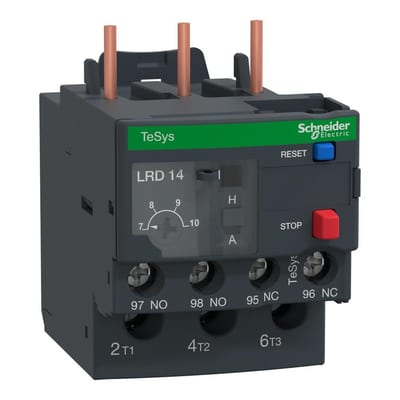

Schneider LRD Thermal Relay - TeSys D, 7 - 10A
LRD14TQ
Schneider Electric

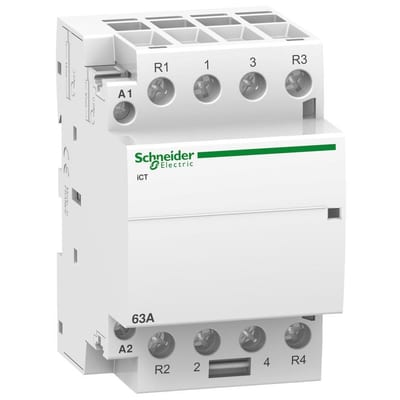

Schneider ACTI9 iCT Contactor - 63A, 4P, 2NO - 2NC, 230 ACV, 54
A9C20868
Schneider Electric

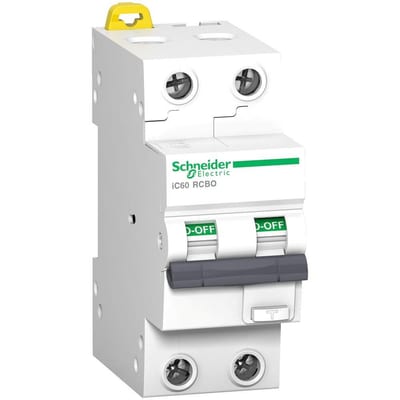

Schneider ACTI9 IC60 RCBO Combination switch HPFI - ACTI9 IC60 RCBO, 30A, 2P, C, Asi, 30MA
A9D27225
Schneider Electric

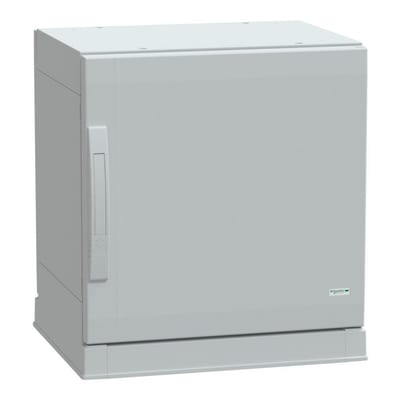

Schneider Thalassa PLA Floor Cabinet - 500 x 500mm, 420mm
NSYPLAZ554G
Schneider Electric

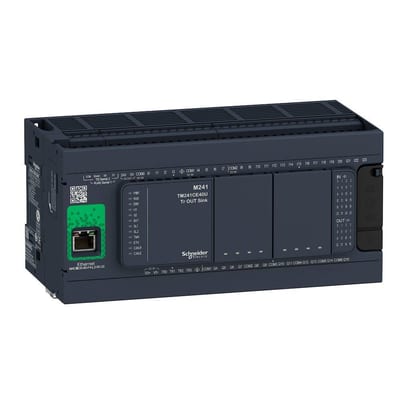

Schneider TM241 PLC - 230V, 24, 4
3606480648847
Schneider Electric

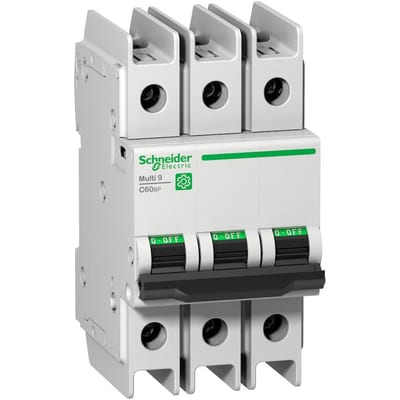

Schneider MULTI9 C60BP Circuit breaker - MULTI9 C60, 35A, 3P, D
M9F43335
Schneider Electric

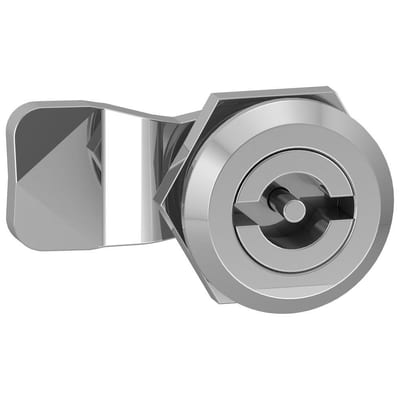

Schneider PanelSeT S3X Lock Insert - PanelSet S3X, PanelSet S3X, stainless steel 316L
NSYSTDCX2H
Schneider Electric

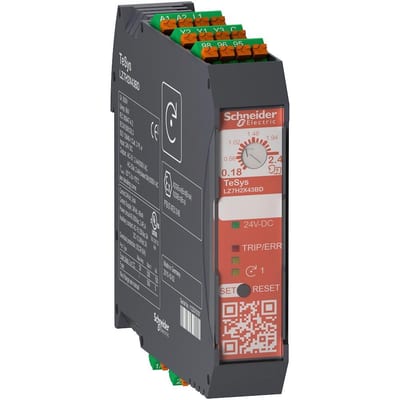

Schneider LZ7H Safety Motor Starter direct - 400V, 0.75kW 3606485421025
