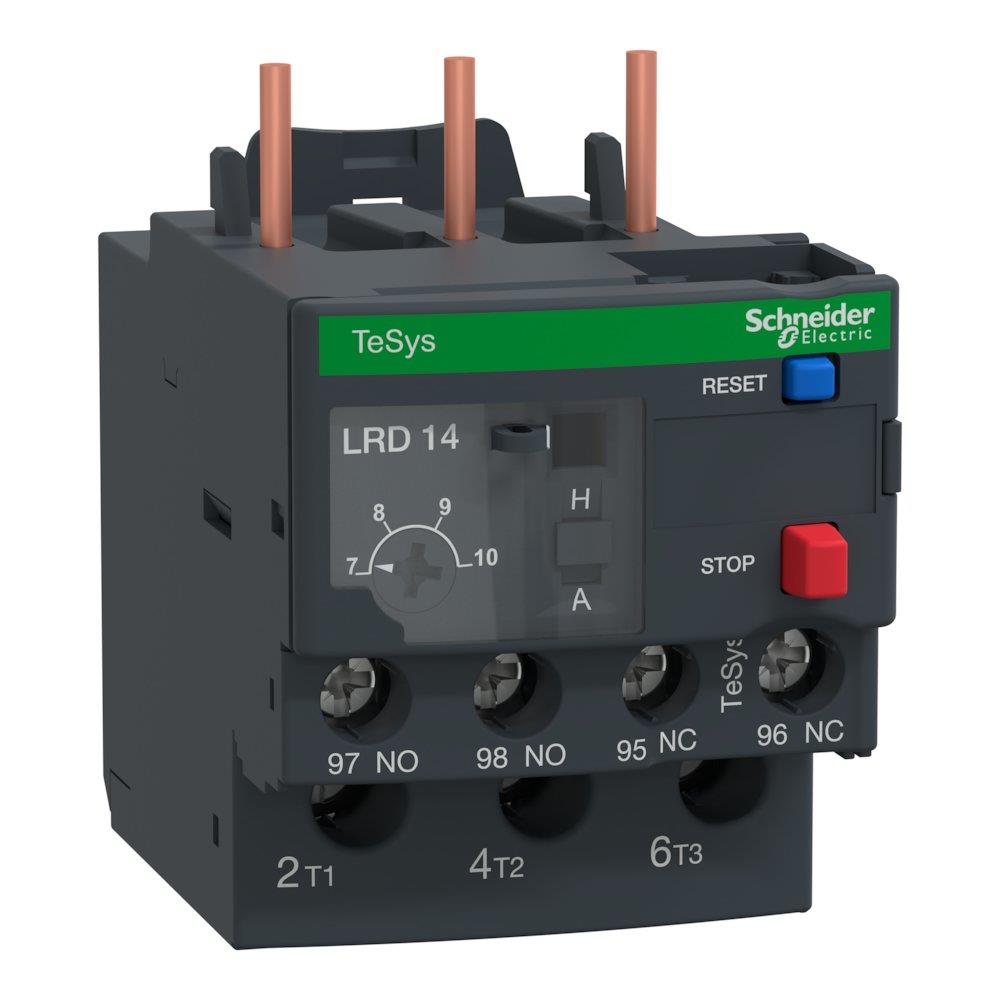

Schneider LRD Thermal Relay - TeSys D, 7 - 10A

Schneider LRD Thermal Relay. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, setting range 7 to 10 A. Supplied under manufacturer part number LRD14TQ, EAN 3389110625417, HS code 8536.49, country of origin France.

Product type

Contactors and thermal relays

Product group

Components for panels and boxes

Series

TeSys D

Setting range

7 to 10 A

REACH SVHC substance above 0.1%

Lead

Sales unit

Pack

Carbon footprint (EPD)

2.0638 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85364900

HS code

8536.49

Manufacturer part number

LRD14TQ

Range

TeSys; TeSys Deca

Product name

TeSys LRD; TeSys Deca

Product or component type

Differential thermal overload relay

Device short name

LRD

Relay application

Motor protection

Product compatibility

LC1D25; LC1D38; LC1D12; LC1D09; LC1D32; LC1D18

Network type

DC; AC

Thermal overload class

Class 10A conforming to IEC 60947-4-1

Thermal protection adjustment range

7…10 A

[Ui] rated insulation voltage

Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL; Power circuit: 690 V conforming to IEC 60947-4-1

Network frequency

0...400 Hz

Mounting support

Plate, with specific accessories; Rail, with specific accessories; Under contactor

Tripping threshold

1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[Ith] conventional free air thermal current

5 A for signalling circuit

Permissible current

3 A at 120 V AC-15 for signalling circuit; 0.22 A at 125 V DC-13 for signalling circuit

[Ue] rated operational voltage

690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Associated fuse rating

4 A gG for signalling circuit; 4 A BS for signalling circuit

[Uimp] rated impulse withstand voltage

6 kV

Phase failure sensitivity

Tripping current I 30 % of Ir on one phase, the others at Ir conforming to IEC 60947-4-1

Control type

Red push-button: stop; Blue push-button: reset

Temperature compensation

-20…60 °C

Tightening torque

Control circuit: 1.7 N.m - on screw clamp terminals; Power circuit: 1.7 N.m - on screw clamp terminals

Height

66 mm

Width

45 mm

Depth

70 mm

Product weight

0.124 kg

Quantity per set

Set of 10

Climatic withstand

conforming to IACS E10

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…60 °C without derating conforming to IEC 60947-4-1

Ambient air temperature for storage

-60…70 °C

Dielectric strength

1.89 kV at 50 Hz conforming to IEC 60947-1

Standards

EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4; GB/T 14048.5; EN 50495

Product certifications

IEC; UL; CSA; CCC; EAC; BV; RINA; DNV-GL; LROS (Lloyds register of shipping); ATEX INERIS; UKCA

Number of Units in Package 1

1

Number of Units in Package 2

36

Warranty (in months)

18

EAN

3389110625417

HS Code

8536.49

• EAN 3389110625417
• MPN LRD14TQ
