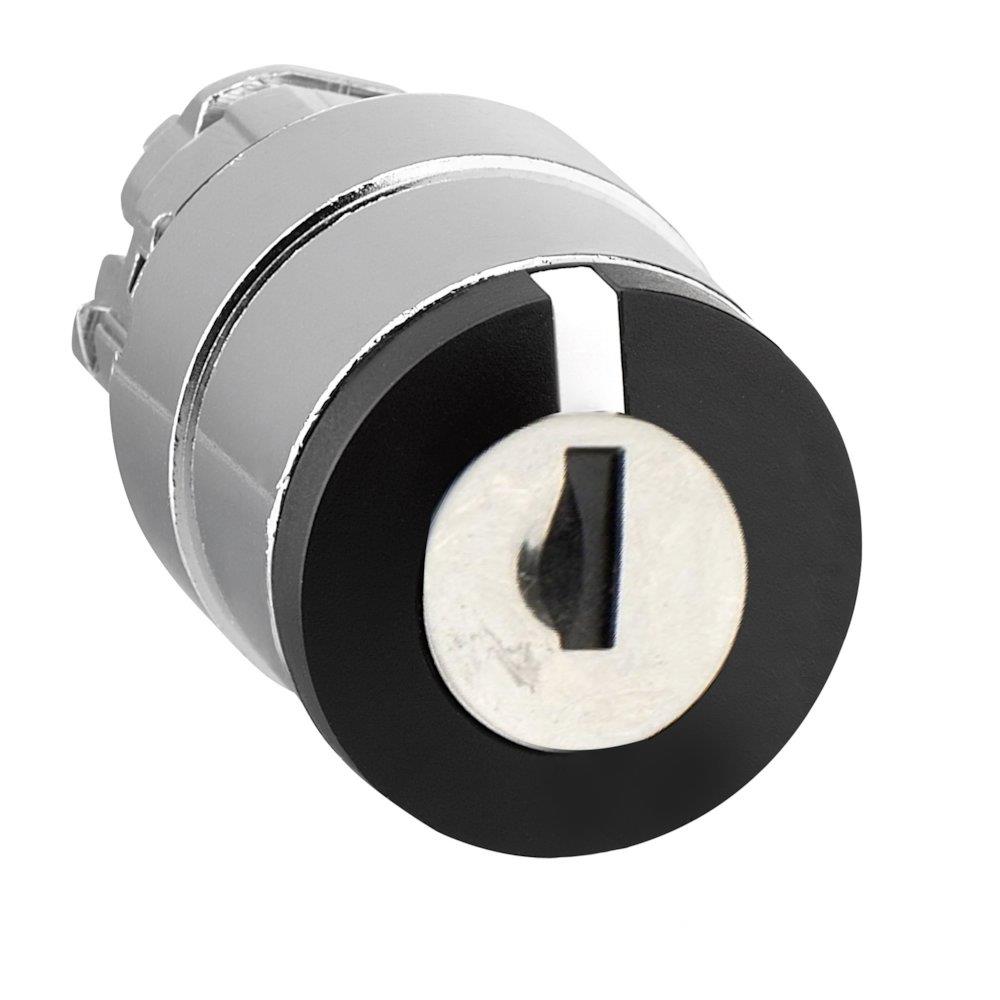

Schneider ZB4 Key Handle - Harmony XB4, 3PCS 3389110109290

Schneider ZB4 Key Handle. Rotary switches and key switches (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, number of posts 3 pcs. Supplied under manufacturer part number ZB4BG05, EAN 3389110109290, HS code 8538.90, country of origin France.

Product type

Rotary switches and key switches

Product group

Push buttons and signal units

Series

Harmony XB4

Number of posts

3 pcs

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

0.8174 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

ZB4BG05

Range of product

Harmony XB4

Product or component type

Head for key selector switch

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Return

Right to centre

Operator profile

Black key switch

Type of operator

Spring return

Operator position information

3 positions +/- 45°

Type of keylock

Key 455

Key withdrawal position

Left and center

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

72 mm

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 with keyhole cover ZBGP conforming to IEC 50102

Standards

GB 14048.5; EN/IEC 60947-5-1; EN/IEC 60947-5-5; EN/IEC 60947-5-4; UL 508; CSA C22.2 No 14; EN/IEC 60947-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

EAN

3389110109290

HS Code

8538.90

• EAN 3389110109290
• MPN ZB4BG05
