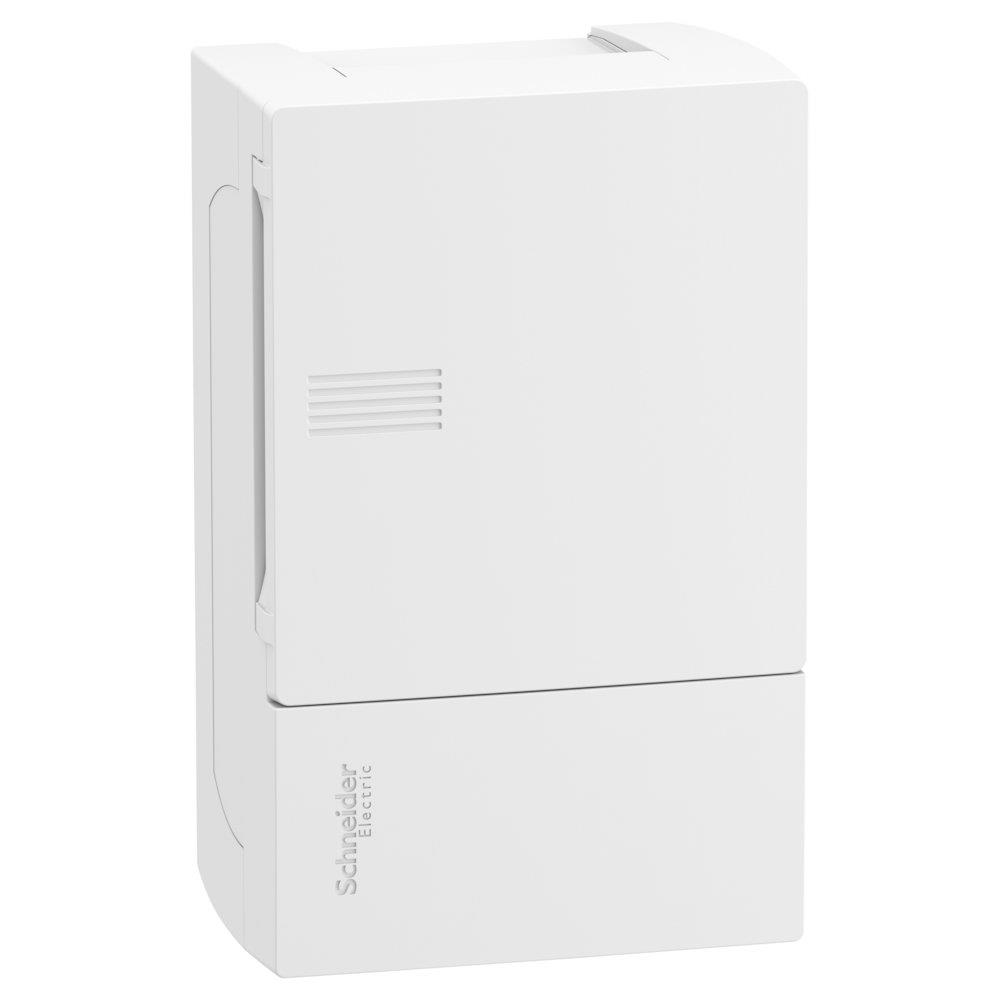

Schneider RESI9 MP Group Panel white - 1 x 4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Resi9 MP Group Panel white. Group and scoreboards (Electrical Engineering / Tables, cabinets, and boxes). Principal data: module size 1 x 4. Supplied under manufacturer part number MIP12104, EAN 3606480147784, HS code 8538.10, country of origin Italy.
Technical Specifications
- Product type
- Group and scoreboards
- Product group
- Tables, cabinets, and boxes
- Module size
- 1 x 4
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack
- Carbon footprint (EPD)
- 44.5000 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 85381000
- HS code
- 8538.10
- Manufacturer part number
- MIP12104
- GTIN (EAN)
- 3606480147784
- Range
- Resi9
- Product name
- Resi9 MP
- Product or component type
- Enclosure
- enclosure type
- Modular enclosure
- Nb of 18 mm modules per row
- 4
- Nb of horizontal rows
- 1
- Type of door
- Plain
- Width
- Outside: 124 mm
- Height
- Outside: 198 mm
- Depth
- Outside : 95 mm
- Enclosure mounting
- Surface
- 9 mm pitches
- 8
- Total number of 18 mm modules
- 4
- [In] rated current
- 50 A
- Type of rail
- 35 mm asymmetrical rail
- Mounting plate description
- Without mounting plate
- cable entry
- 1 bare flange; 1 trunking flange
- Terminal block function
- Earth / neutral
- Number of terminal blocks
- 1 earth (screwed) with 4 outgoers; 1 neutral (screwed) with 4 outgoers
- Distribution block outgoers
- 1 x 16 mm² for earth; 1 x 16 mm² for neutral; 1 x 6 mm² for earth; 1 x 6 mm² for neutral; 2 x 10 mm² for earth; 2 x 10 mm² for neutral
- Enclosure material
- Back part: technoplastic; Door: technoplastic; Front face: technoplastic
- Internal depth
- 74 mm
- Colour
- Door: white (RAL 9003); Front face: white (RAL 9003)
- Market segment
- Small commercial; Residential
- Standards
- IEC 60670-1; IEC 60670-24
- Quality labels
- IMQ
- Fire resistance
- Door: 650 °C; Back part: 650 °C; Front face: 650 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Ambient air temperature for operation
- -25…60 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480147784
- MPN MIP12104
