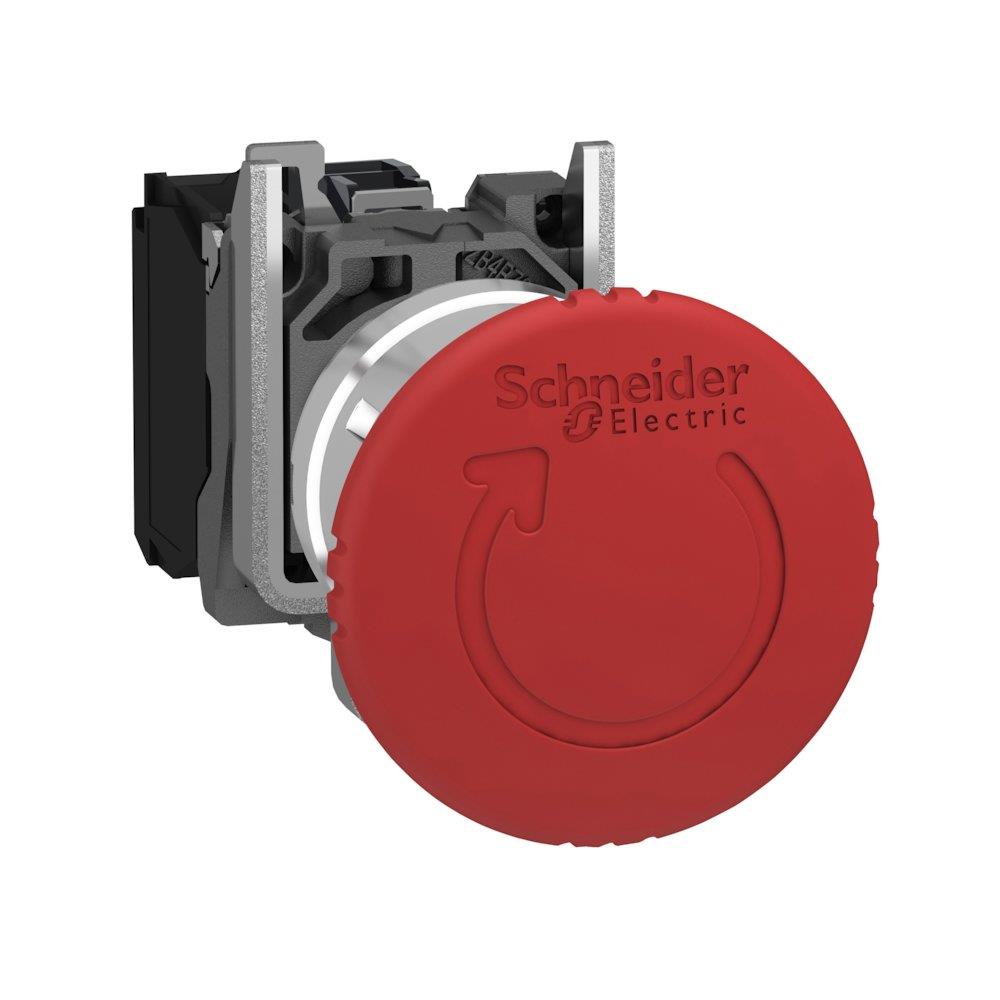

Schneider XB4 Emergency Stop Button - Harmony XB4, 40mm, red, 2NC

Schneider XB4 Emergency Stop Button. Pedal pressure and emergency stop button (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, diameter 40 mm, color Red, contact type 2NC. Supplied under manufacturer part number XB4BS84462, EAN 3606481068743, HS code 8536.50, country of origin Czechia.

Product type

Pedal pressure and emergency stop button

Product group

Push buttons and signal units

Series

Harmony XB4

Diameter

40 mm

Color

Red

Contact type

2NC

Carbon footprint (EPD)

1.0453 kg CO2e per pcs

Country of origin

Czechia

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

XB4BS84462

Range of product

Harmony XB4

Product or component type

Emergency switching off push-button; Emergency stop push-button

Device short name

XB4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Head type

Standard

Reset

Turn to release

Operator profile

Red mushroom Ø 40 mm, unmarked

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, = 1 x 0.34 mm² without cable end conforming to IEC 60947-1

Height

47 mm

Width

40 mm

Depth

85 mm

Product weight

0.126 kg

Device mounting

Fixing hole - diameter: 22.5 mm +/- 0.2 mm

Fixing mode

By fixing collar recommended torque: 1 N.m (+/- 0.2 N.m)

Contacts usage

Monitoring contact; Standard contacts

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.5 mm (NC changing electrical state); 4.3 mm (total travel)

Operating force

47 N

Mechanical durability

300000 cycles

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (AgNi); Silver alloy (AgSnO2)

Short-circuit protection

6 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

6 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1; 4 kV conforming to 86/188/EEC

[Ie] rated operational current

1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 0.11 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

300000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, AC-15, 3 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, DC-13, 0.3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 300000 cycles, DC-13, 1 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 3.4 mA in clean environment conforming to IEC 60947-5-4

Device presentation

Complete product

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E

IK degree of protection

IK06 conforming to IEC 60068-2-75

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-5; IEC 60204-1; IEC 60947-5-4; IEC 60364-5-53; ISO 13850; UL 60947-5-1; CSA C22.2 No 60947-5-1; JIS C8201-1; JIS C8201-5-1; GB/T 14048.5; BS EN 60947-5-1; GOST IEC 60947-5-1

Product certifications

CSA; BV; UL listed; LROS (Lloyds register of shipping); DNV; CE; CCC; CB Scheme; UKCA; EAC

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

80

Warranty (in months)

18

EAN

3606481068743

HS Code

8536.50
