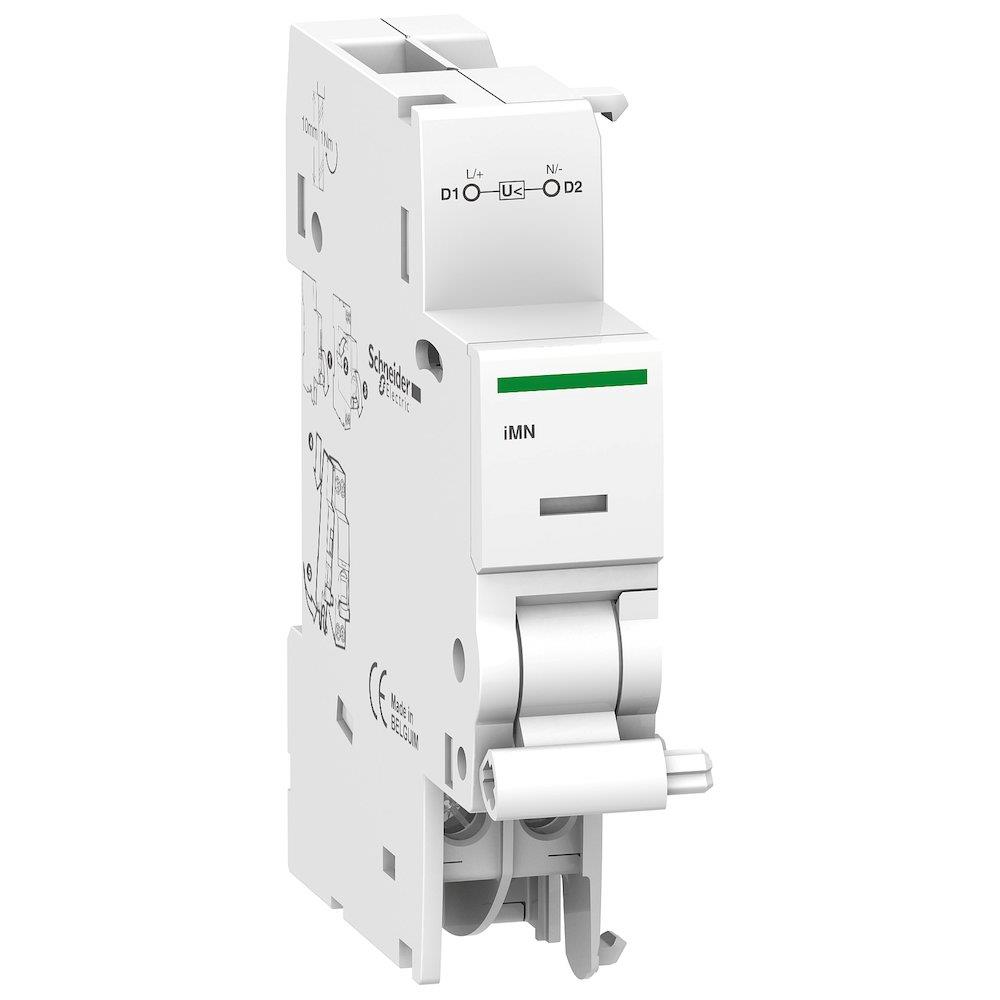

Schneider ACTI9 IC60 Undervoltage Coil

Schneider Acti9 iC60 Undervoltage Coil. Accessories for fuses (Electrical Engineering / Components for panels and boxes / Fuses and accessories). Supplied under manufacturer part number A9A26959, EAN 3606480087981, HS code 8536.30, country of origin Belgium.

Product type

Accessories for fuses

Product group

Components for panels and boxes

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

0.5514 kg CO2e per pcs

Country of origin

Belgium

Customs tariff code (EU CN)

85363010

HS code

8536.30

Manufacturer part number

A9A26959

range of product

Acti9

Product or component type

Undervoltage release

Device short name

iMN

[Uc] control circuit voltage

115 V AC 400 Hz

Control type

Standard

9 mm pitches

2

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Local signalling

Action indicator

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top and bottom: YES

Width

18 mm

Colour

White

Connections - terminals

Clamp terminal - 1 cable(s) 7 mm² - rigid; Clamp terminal - 2 cable(s) 2.6 mm² - rigid; Clamp terminal - 1 cable(s) 5 mm² - flexible; Clamp terminal - 2 cable(s) 2.6 mm² - flexible with cable end

Tightening torque

1 N.m

Standards

EN/IEC 60947-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

72

Warranty (in months)

18

EAN

3606480087981

HS Code

8536.30
