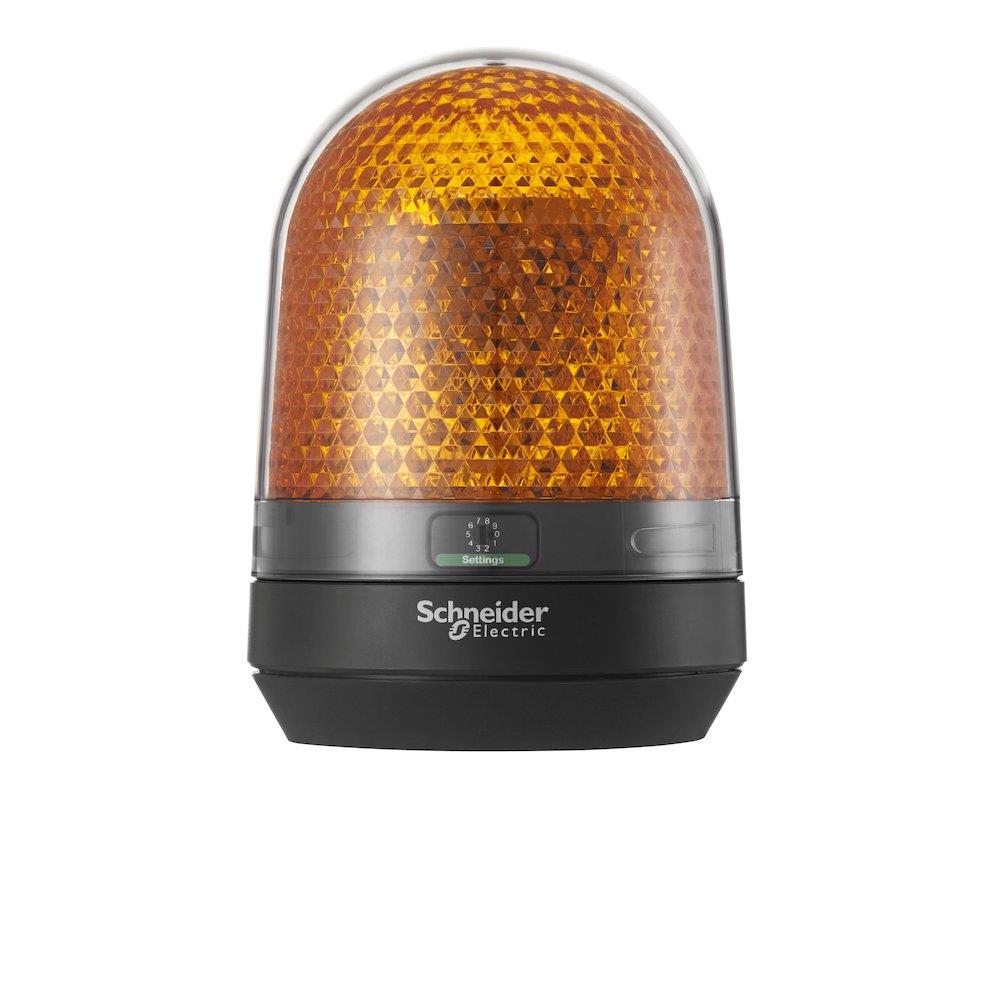

Schneider XVR3 Signal lamp - Harmony XVR, 24V, Orange
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider XVR3 Signal lamp. Signal units (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XVR, voltage 24 V, color Orange. Supplied under manufacturer part number XVR3B05, EAN 3606480611780, HS code 8531.80, country of origin China.
Technical Specifications
- Product type
- Signal units
- Product group
- Push buttons and signal units
- Series
- Harmony XVR
- Voltage
- 24 V
- Color
- Orange
- REACH SVHC substance above 0.1%
- Cyclopentamethicone, Decamethylcyclopentasiloxane, Lead tetroxide, Lead-monoxide, Octamethylcyclotetrasiloxane, Octrizole
- Carbon footprint (EPD)
- 3.7935 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 85318070
- HS code
- 8531.80
- Manufacturer part number
- XVR3B05
- Range of product
- Harmony XVR
- Product or component type
- Beacon
- Device short name
- XVR3
- Beacon or indicator bank unit type
- LED unit
- Mounting diameter
- 100 mm
- Light source
- LED, orange
- Device application
- Automated guided vehicle (AGV); Bulldozer; Forklift
- Signalling type
- Flashing; Rotating; Blinking
- Assembly style
- Ready assembled
- Material
- PC (polycarbonate): lenses; PBT (polybutylene terephthalate) + PC (polycarbonate): body; EPDM (ethylene propylene diene monomer): base
- [Us] rated supply voltage
- 12...24 V DC
- [Ue] rated operational voltage
- 10...30 V DC
- Inrush current
- 3 A
- Power consumption in W
- 2.8 W
- Marking
- CE
- Installation direction
- Upright indoor; Sideways indoor; Inverted indoor; Upright outdoor
- Electrical insulation class
- Class II
- Current consumption
- 3000 mA
- Length
- 100 mm
- Width
- 100 mm
- Height
- 139 mm
- Product weight
- 0.484 kg
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -35…70 °C
- Relative humidity
- 35…85 % without condensation
- Vibration resistance
- 4.6 gn (sideways); 4.6 gn (inverted); 7.1 gn (upright)
- IP degree of protection
- IP65 (upright); IP23 (sideways); IP23 (inverted)
- Warranty (in months)
- 18
- EAN
- 3606480611780
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480611780
- MPN XVR3B05
