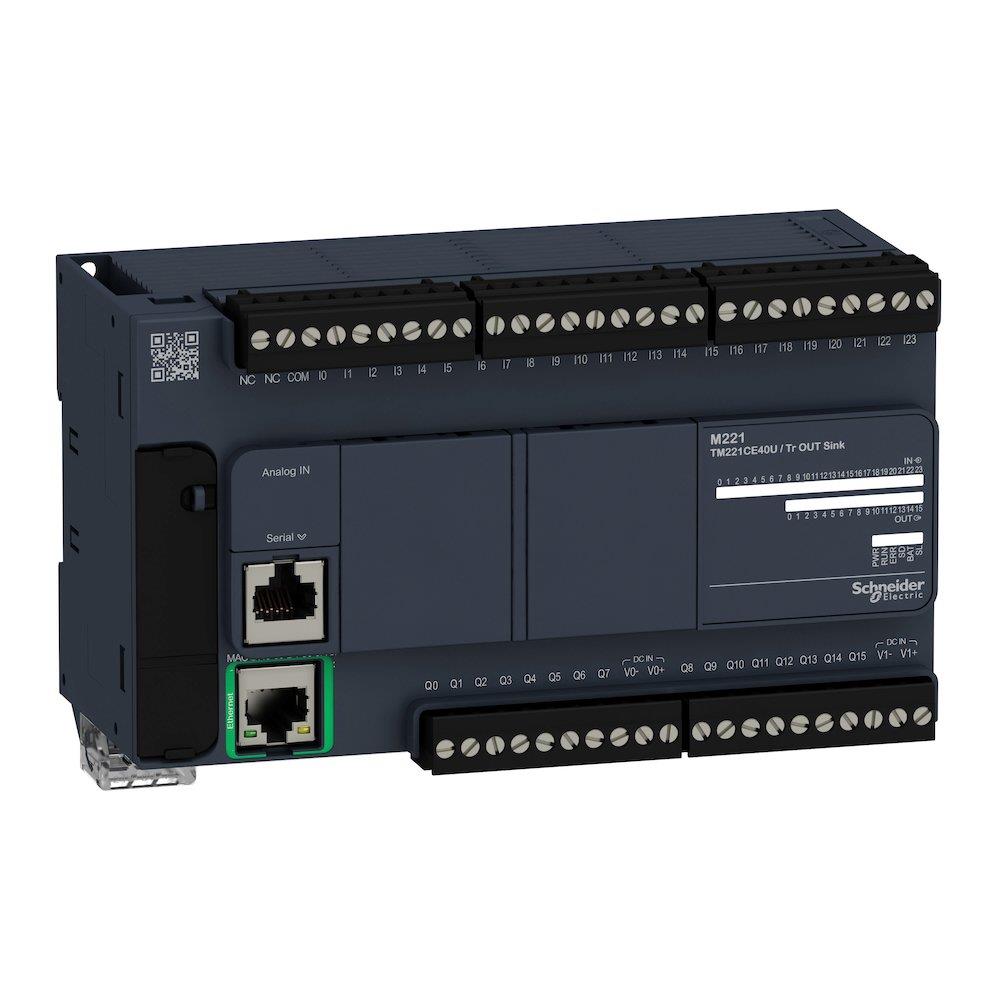

Schneider Modicon TM221 Controller - 24V, 24, 16, 2

Schneider Modicon TM221 Controller. PLC (Electrical Engineering / Industry and automation). Principal data: supply voltage 24 V, number of digital inputs 24, number of digital outputs 16, number of analogue outputs 2. Supplied under manufacturer part number TM221CE40U, EAN 3606485408644, HS code 8537.10, country of origin Taiwan.

Product type

PLC

Product group

Industry and automation

Supply voltage

24 V

Number of digital inputs

24

Number of digital outputs

16

Number of analogue outputs

2

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

6.4307 kg CO2e per pcs

Country of origin

Taiwan

Customs tariff code (EU CN)

85371091

HS code

8537.10

Manufacturer part number

TM221CE40U

Range of product

Modicon M221

Product or component type

Logic controller

[Us] rated supply voltage

24 V DC

Discrete input number

24, discrete input 4 fast input conforming to IEC 61131-2 Type 1

Analogue input number

2 at 0...10 V

Discrete output type

Transistor

Discrete output number

16 transistor 4 fast output

Discrete output voltage

24 V DC

Discrete output current

0.5 A

Discrete I/O number

40

Maximum number of I/O expansion module

7 (local I/O-Architecture); 14 (remote I/O-Architecture)

Supply voltage limits

20.4…28.8 V

Inrush current

35 A

Maximum power consumption in W

17 W at 24 V (with max number of I/O expansion module); 4.9 W at 24 V (without I/O expansion module)

Power supply output current

0.52 A 5 V for expansion bus; 0.3 A 24 V for expansion bus

Discrete input logic

Sink or source (positive/negative)

Discrete input voltage

24 V

Discrete input voltage type

DC

Analogue input resolution

10 bits

LSB value

10 mV

Conversion time

1 ms per channel + 1 controller cycle time for analogue input analog input

Permitted overload on inputs

+/- 30 V DC for 5 min (maximum) for analog input; +/- 13 V DC (permanent) for analog input

Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Discrete input current

7 mA for discrete input; 5 mA for fast input

Input impedance

3.4 kOhm for discrete input; 100 kOhm for analog input; 4.9 kOhm for fast input

Response time

35 µs turn-off, I2...I5 terminal(s) for input; 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input; 35 µs turn-on, other terminals terminal(s) for input; 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input; 100 µs turn-off, other terminals terminal(s) for input; 300 µs turn-on, turn-off, other terminals terminal(s) for output; 5 µs turn-on, turn-off, Q0...Q3 terminal(s) for output

Configurable filtering time

0 ms for input; 3 ms for input; 12 ms for input

Discrete output logic

Negative logic (sink)

Maximum current per output common

4 A

Output frequency

0.1 kHz for output at Q4...Q15; 100 kHz for fast output (PWM/PLS mode) at Q0...Q3

Absolute accuracy error

+/- 1 % of full scale for analog input

Maximum leakage current

0.1 mA for transistor output

Maximum voltage drop

<1 V

Mechanical durability

20000000 cycles for transistor output

Maximum tungsten load

<12 W for output and fast output

Protection type

Without protection

Memory capacity

256 kB for user application and data RAM with 10000 instructions; 256 kB for internal variables RAM

Data backed up

256 kB built-in flash memory for backup of application and data

Data storage equipment

2 GB SD card (optional)

Battery type

BR2032 or CR2032X lithium non-rechargeable

Backup time

1 year at 25 °C (by interruption of power supply)

Execution time for 1 KInstruction

0.3 ms for event and periodic task

Execution time per instruction

0.2 µs Boolean

Exct time for event task

60 µs response time

Maximum size of object areas

8000 %MW memory words; 255 %TM timers; 512 %KW constant words; 255 %C counters; 512 %M memory bits

Realtime clock

With

Clock drift

<= 30 s/month at 25 °C

Regulation loop

Adjustable PID regulator up to 14 simultaneous loops

Positioning functions

Position PTO 4 axe(s)pulse/direction mode (100 kHz); Position PTO 2 axe(s)CW/CCW mode (100 kHz)

Function available

PLS; PWM; Frequency generator

Counting input number

4 fast input (HSC mode) at 100 kHz 32 bits

counter function

A/B; Single phase; Pulse/direction

Integrated connection type

USB port with mini B USB 2.0 connector; Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface ; Ethernet with RJ45 connector

Supply

(serial)serial link supply: 5 V, <200 mA

Transmission rate

1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232; 480 Mbit/s for USB

Communication port protocol

USB port: USB - SoMachine-Network; Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network; Ethernet

Port Ethernet

10BASE-T/100BASE-TX 1 port with 100 m copper cable

Communication service

DHCP client; Modbus TCP slave device; Ethernet/IP adapter; Modbus TCP server; Modbus TCP client

Local signalling

1 LED (green) for PWR; 1 LED (green) for RUN; 1 LED (red) for module error (ERR); 1 LED (green) for SD card access (SD); 1 LED (red) for BAT; 1 LED per channel (green) for I/O state; 1 LED (green) for SL; Ethernet network activity (green) for ACT; Ethernet network link (yellow) for Link (Link Status)

Electrical connection

removable screw terminal block for inputs; removable screw terminal block for outputs; terminal block, 3 terminal(s) for connecting the 24 V DC power supply; connector, 4 terminal(s) for analogue inputs; Mini B USB 2.0 connector for a programming terminal

Maximum cable distance between devices

Shielded cable: <10 m for fast input; Unshielded cable: <30 m for output; Unshielded cable: <30 m for digital input; Unshielded cable: <1 m for analog input; Shielded cable: <3 m for fast output

Insulation

Between input and internal logic at 500 V AC; Between fast input and internal logic at 500 V AC; Non-insulated between inputs; Between output and internal logic at 500 V AC; Non-insulated between analogue input and internal logic; Non-insulated between analogue inputs

Marking

CE

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Depth

70 mm

Width

160 mm

Product weight

0.78 kg

Standards

IEC 61131-2; UL 508; CAN/CSA C22.2 No. 213; IACS E10; ANSI/ISA 12-12-01

Product certifications

LR; cULus; EAC; DNV-GL; ABS; RCM; CE; UKCA; cULus HazLoc

Environmental characteristic

Ordinary and hazardous location

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2; 4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3; 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3; 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4; 2 kV (relay output) conforming to IEC 61000-4-4; 1 kV (I/O) conforming to IEC 61000-4-4; 1 kV (Ethernet line) conforming to IEC 61000-4-4; 1 kV (serial link) conforming to IEC 61000-4-4

Surge withstand

2 kV power lines (AC) common mode conforming to IEC 61000-4-5; 2 kV relay output common mode conforming to IEC 61000-4-5; 1 kV I/O common mode conforming to IEC 61000-4-5; 1 kV shielded cable common mode conforming to IEC 61000-4-5; 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5; 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5; 1 kV relay output differential mode conforming to IEC 61000-4-5; 0.5 kV power lines (DC) common mode conforming to IEC 61000-4-5

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6; 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL); 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to IEC 55011; Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to IEC 55011; Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to IEC 55011; Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to IEC 55011; Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to IEC 55011

Immunity to microbreaks

10 ms

Ambient air temperature for operation

-10…55 °C (horizontal installation); -10…35 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage)

IP degree of protection

IP20 with protective cover in place

Pollution degree

<= 2

Operating altitude

0...2000 m

Storage altitude

0…3000 m

Vibration resistance

3.5 mm at 5…8.4 Hz on symmetrical rail; 3.5 mm at 5…8.4 Hz on panel mounting; 1 gn at 8.4…150 Hz on symmetrical rail; 1 gn at 8.4…150 Hz on panel mounting

Shock resistance

147 m/s² for 11 ms

Warranty (in months)

18

EAN

3606485408644

HS Code

8537.10

• EAN 3606485408644
• MPN TM221CE40U
