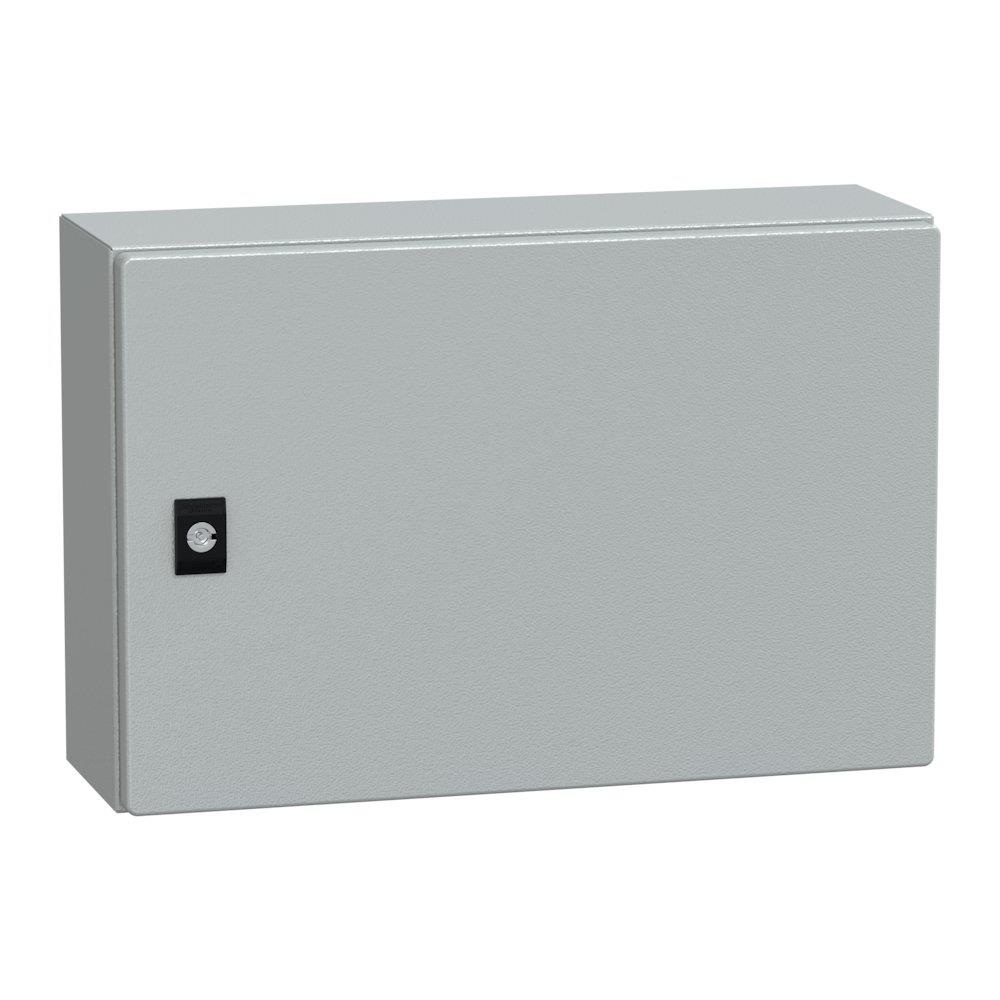

Schneider Spacial CRN Wall cabinet - 300 x 450mm, 150mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Spacial CRN Wall cabinet. Wall cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: size 300 x 450 mm, depth 150 mm. Supplied under manufacturer part number NSYCRN345150, EAN 3606480212475, HS code 9403.20, country of origin Spain.
Technical Specifications
- Product type
- Wall cabinets
- Product group
- Tables, cabinets, and boxes
- Size
- 300 x 450 mm
- Depth
- 150 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 20.6498 kg CO2e per pcs
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 94032080
- HS code
- 9403.20
- Manufacturer part number
- NSYCRN345150
- Range
- PanelSeT
- Product name
- PanelSeT CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 300 mm
- Enclosure nominal width
- 450 mm
- Enclosure nominal depth
- 150 mm
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate: top and bottom
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- body type
- Sides made from a single folded section; Back welded with double profile forming a protected sealed area
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Type of gland plate
- Standard
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- cUL; UL; DNV-GL
- Product weight
- 5.611 kg
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Warranty (in months)
- 18
- EAN
- 3606480212475
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480212475
- MPN NSYCRN345150
More from Schneider Electric
Schneider Electric
Schneider MULTI9 C60 OEM Loop Rail - 3606481192813
M9XUP206
Schneider Electric
Schneider Modicon TM5 Expansion Module - 3606489661915
TM5NEIP1
Schneider Electric
Schneider XB6 Push Button - Harmony XB6, red, 1NO - 1NC
XB6AA45B
Schneider Electric
Schneider RESI9 XP Terminal block blue - 3606489580032
LGYT1N05
Schneider Electric
Schneider Thalassa PLA Floor Cabinet - 1000 x 1000mm, 420mm
NSYPLA10104G
Schneider Electric
Schneider GV4PE Motor Protection - TeSys D, 2A
GV4PE02S
Schneider Electric

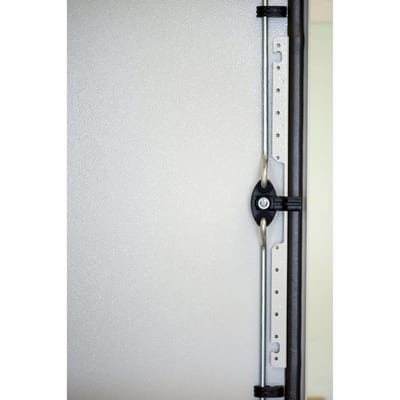

Schneider Spacial S3D Latch complete with lock and rods
NSYBTAS3D120
Schneider Electric

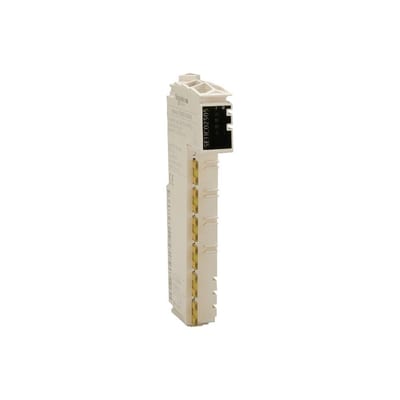

Schneider Modicon TM5 Counting Module - TM5SE1MISC20005, 24V, 2
