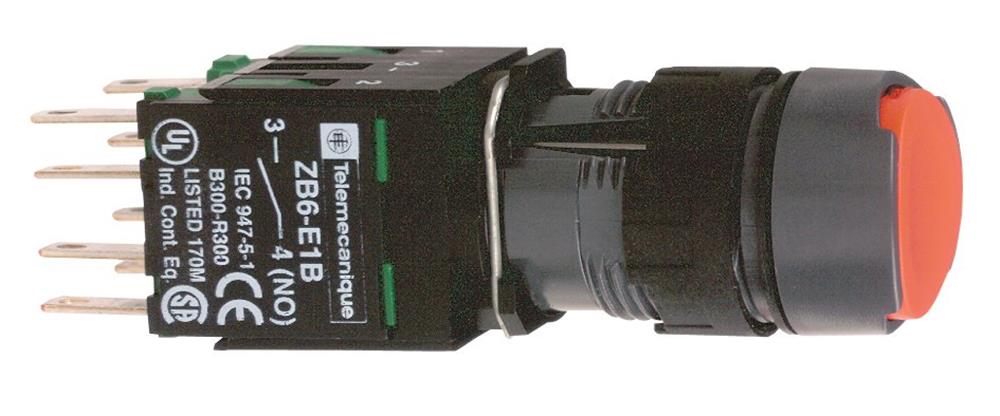

Schneider XB6 Push Button - Harmony XB6, red, 1NO - 1NC

Schneider XB6 Push Button. Push buttons (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XB6, color Red, contact type 1NO -1NC. Supplied under manufacturer part number XB6AA45B, EAN 3389110764345, HS code 8536.50, country of origin France.

Product type

Push buttons

Product group

Push buttons and signal units

Series

Harmony XB6

Color

Red

Contact type

1NO -1NC

Diameter

16 mm

Sales unit

Carton

Carbon footprint (EPD)

0.0856 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

XB6AA45B

Range of product

Harmony XB6

Product or component type

Complete push-button

Device short name

XB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red flush, unmarked

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Faston connectors, connection size: 2.8 x 0.5 mm

CAD overall width

18 mm

CAD overall height

18 mm

CAD overall depth

57 mm

Terminals description ISO n°1

(13-14)NO; (21-22)NC

Product weight

0.022 kg

Operating position

Any position

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1 mm (NO changing electrical state); 2 mm (NC changing electrical state); 3.5 mm (total travel)

Operating force

3.5 N NO changing electrical state; 4.5 N NC changing electrical state

Mechanical durability

2000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94

Standards

IEC 60947-5-5; IEC 60947-5-1; CSA C22.2 No 14; JIS C 852; JIS C 4520; IEC 60947-1; UL 508

Product certifications

CSA; GOST; CCC; UL

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

75

Warranty (in months)

18

EAN

3389110764345

HS Code

8536.50
