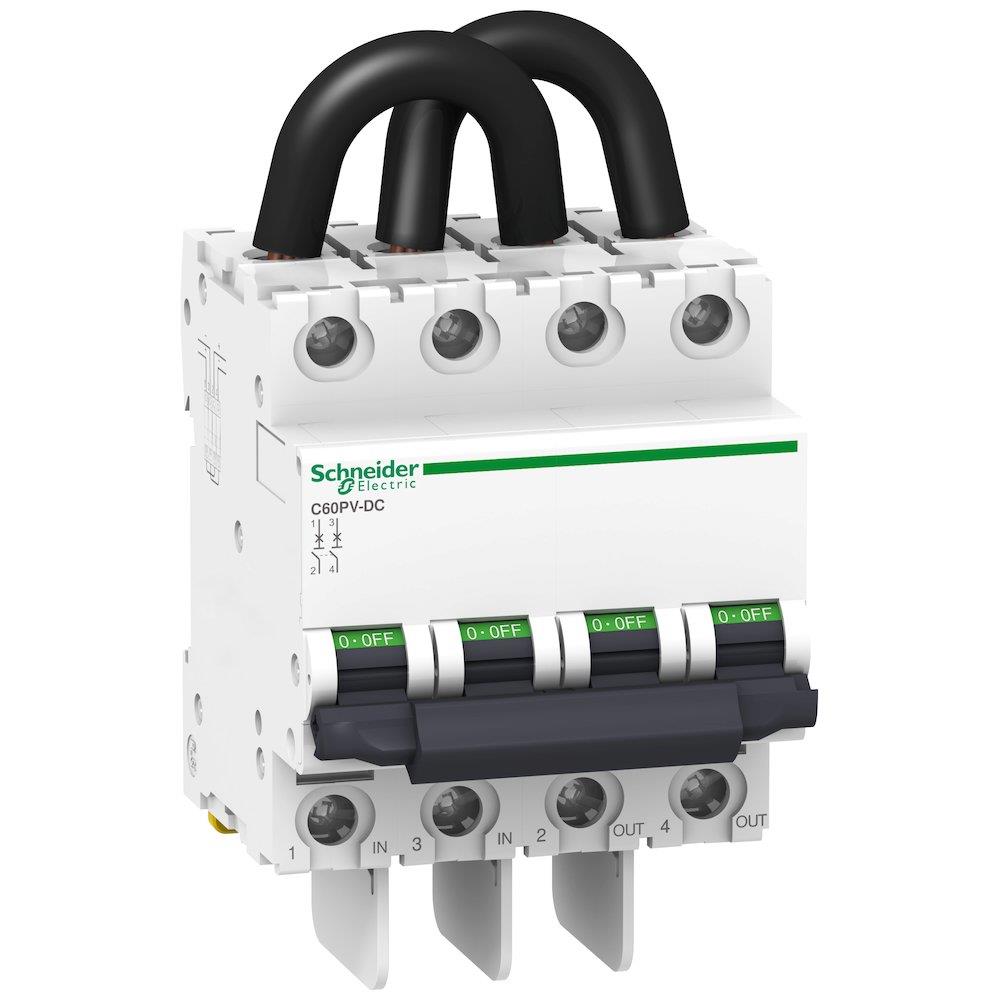

Schneider ACTI9 C60PV-DC Circuit breaker - ACTI9 C60, 25A, 2P, B

Schneider Acti9 C60PV-DC Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 C60, current rating 25 A, number of poles 2P, tripping characteristic B. Supplied under manufacturer part number A9N61660, EAN 3606480504112, HS code 8536.20, country of origin China.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Acti9 C60

Current rating

25 A

Number of poles

2P

Tripping characteristic

B

Width

72 mm

Carbon footprint (EPD)

0.8500 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

China

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

A9N61660

GTIN (EAN)

3606480504112

Range of product

C60

Product or component type

Miniature circuit-breaker

Device short name

C60PV-DC

Poles description

2P

Number of protected poles

2

Network type

DC

Curve code

B

Utilisation category

Category A conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60947-2

[In] rated current

25 A

Voltage Drop

488 mV 19.5 mOhm 12.2 W 25 A

[Ue] rated operational voltage

800 V DC

Magnetic tripping limit

5.5 x In

Breaking capacity

3 kA Icu at 650 V DC; 1.5 kA Icu at 800 V DC

[Ics] rated service breaking capacity

1.5 kA 100 % - 800 V DC; 3 kA 100 % - 650 V DC

[Ui] rated insulation voltage

1000 V DC

[Uimp] rated impulse withstand voltage

6 kV

Polarity sensitivity

No (can protect against bi-directional current)

Contact position indicator

Yes

Control type

Toggle

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

8

Height

132.7 mm

Depth

77.4 mm

Product weight

0.545 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

1500 cycles L/R = 2 ms

Locking options description

Padlocking in OFF position

Connections - terminals

Tunnel terminal (downside) 1…25 mm² rigid; Tunnel terminal (downside) 1…16 mm² flexible; Pre-wired cable (upside)

Wire stripping length

14 mm

Tightening torque

2.5 N.m

Market segment

Residential; Small commercial

Compatibility code

C60PV-DC

Standards

EN/IEC 60947-2

Pollution degree

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.20
