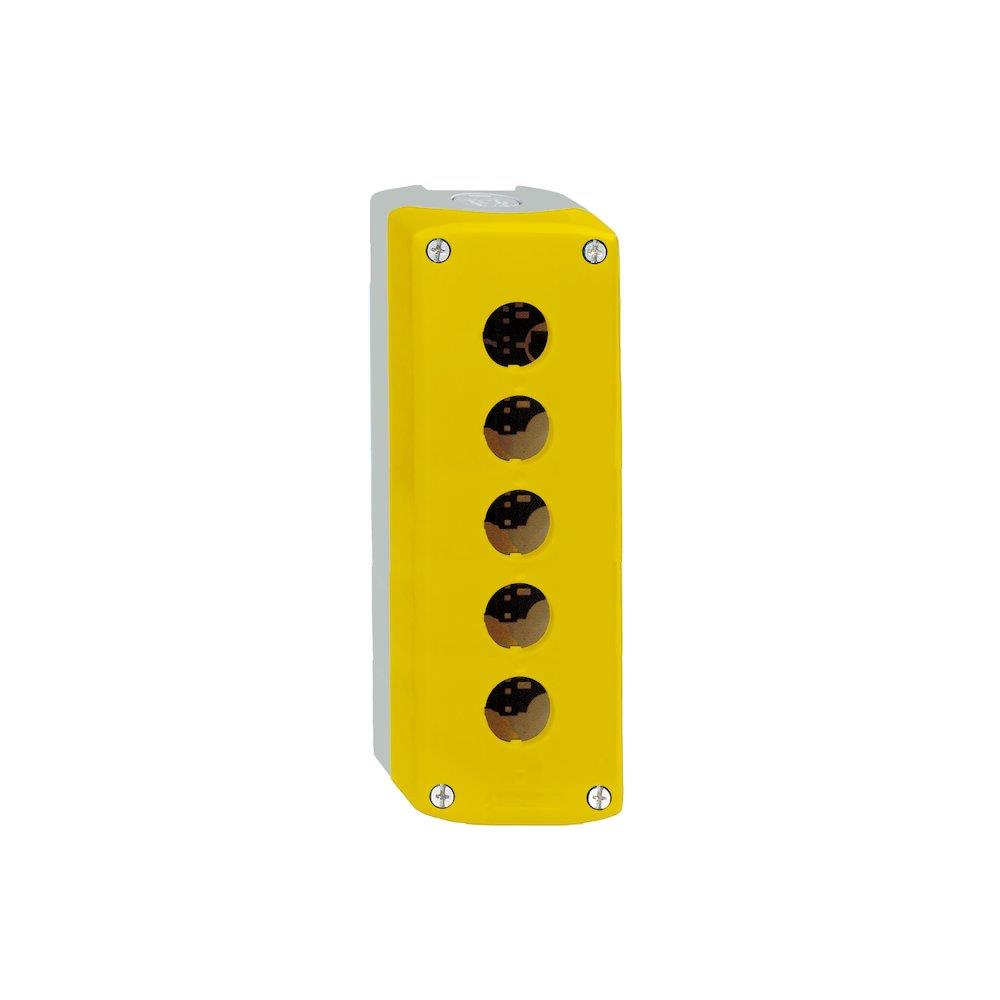

Schneider XALK Push button box - Harmony XALK, yellow 3389110127348
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider XALK Push button box. Push button box empty (Electrical Engineering / Push buttons and signal units / Push button boxes). Principal data: series Harmony XALK, color Yellow. Supplied under manufacturer part number XALK05, EAN 3389110127348, HS code 3926.90, country of origin Czechia.
Technical Specifications
- Product type
- Push button box empty
- Product group
- Push buttons and signal units
- Series
- Harmony XALK
- Color
- Yellow
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 2.1367 kg CO2e per pcs
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 39269097
- HS code
- 3926.90
- Manufacturer part number
- XALK05
- Range of product
- Harmony XALK
- Product or component type
- Empty control station
- Device short name
- XALK
- Product destination
- For XB5 Ø 22 mm control and signalling units
- Control station application
- Emergency stop function; Emergency switching off function
- Number of cut-out
- 5 cut-outs
- Colour of base of enclosure
- Light grey (RAL 7035)
- Colour of cover
- Yellow (RAL 1021)
- Material
- Polycarbonate
- Cable entry
- 2 knock-outs for cable entry, clamping capacity: 14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Assembly style
- For customer assembly
- Number of horizontal rows
- 1
- Number of vertical rows
- 5
- Product weight
- 0.322 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mounting of block
- Rear mounting; Front mounting
- Main group
- 5 cut-outs
- Group of product
- Standard yellow
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- NEMA degree of protection
- NEMA 13; NEMA 4X
- IK degree of protection
- IK03 conforming to IEC 62262
- Standards
- UL 508; IEC 60947-5-1; IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; IEC 60947-5-5; CSA C22.2 No 14; JIS C8201-1
- Warranty (in months)
- 18
- EAN
- 3389110127348
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3389110127348
- MPN XALK05
