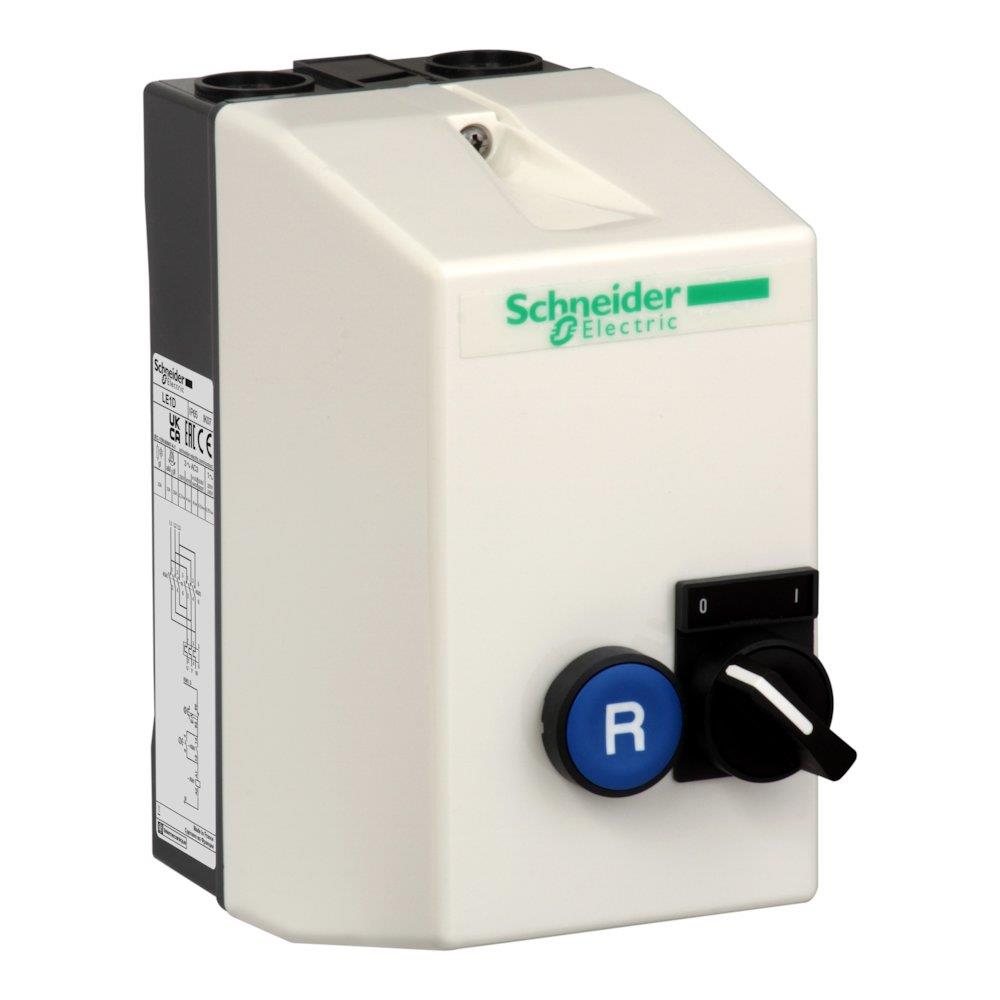

Schneider LE1D Motor Starter - 230V, 7.5kW, 65

Schneider LE1D Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 230 V, power 7.5 kW, protection class (ip) 65. Supplied under manufacturer part number LE1D18P7A13, EAN 3389110578300, HS code 8537.10, country of origin France.

Product type

Motor starters

Product group

Components for panels and boxes

Voltage

230 V

Power

7.5 kW

Protection class (IP)

65

REACH SVHC substance above 0.1%

Octamethylcyclotetrasiloxane

Carbon footprint (EPD)

10.1186 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85371098

HS code

8537.10

Manufacturer part number

LE1D18P7A13

Range

TeSys

Product name

TeSys LE

Device short name

LE1D

Product or component type

Enclosed DOL starter

Device application

Standard

Utilisation category

AC-3

Device composition

Thermal overload relay ordered separately; Contactor

Control type

Push-button reset blue R; Selector switch 2 positions start/stop O-I

Motor power kW

10 kW at 500 V AC 50/60 Hz; 10 kW at 660/690 V AC 50/60 Hz; 4 kW at 220/230 V AC 50/60 Hz; 9 kW at 415 V AC 50/60 Hz; 9 kW at 440 V AC 50/60 Hz; 7.5 kW at 380/400 V AC 50/60 Hz

[Uc] control circuit voltage

230 V AC 50/60 Hz

[Ith] Conventional free air thermal current

17 A

Cable entry number

2 ISO20 top; 2 ISO25 top; 2 ISO20 bottom; 2 ISO25 bottom

Width

101 mm

Height

201 mm

Depth

160 mm

Product weight

1.015 kg

Standards

IEC 60947-4-1; UL 60947-4-1

Product certifications

CB Scheme; UL; CE; UKCA

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 60529

Ambient air temperature for operation

-5…40 °C

Material

Polycarbonate

Environmental characteristic

Standard environment

Warranty (in months)

18

EAN

3389110578300

HS Code

8537.10

• EAN 3389110578300
• MPN LE1D18P7A13
