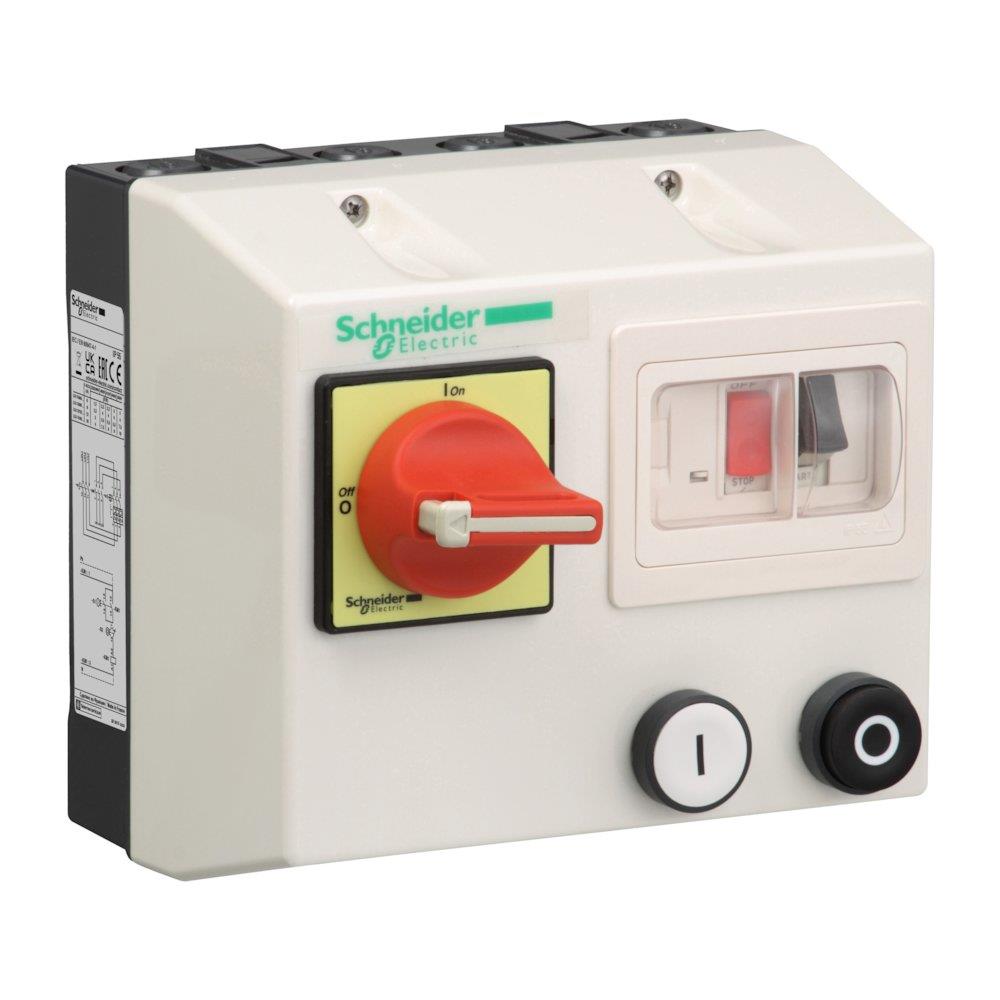

Schneider LG1K Motor Starter - 220V, 4kW, 65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider LG1K Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 220 V, power 4 kW, protection class (ip) 65. Supplied under manufacturer part number LG1K095M714, EAN 3389110655872, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 220 V
- Power
- 4 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Octamethylcyclotetrasiloxane, Octrizole
- Carbon footprint (EPD)
- 20.2373 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LG1K095M714
- Range
- TeSys
- Product name
- TeSys LG
- Device short name
- LG1K
- Product or component type
- Enclosed DOL starter
- Device application
- Safety
- Utilisation category
- AC-3
- Device composition
- Contactor; Switch disconnector; Circuit-breaker
- Motor power kW
- 4 kW at 400/415 V AC 50/60 Hz; 4 kW at 440 V AC 50/60 Hz; 1.5 kW at 220/230 V AC 50/60 Hz
- Thermal protection adjustment range
- 6…10 A
- [Uc] control circuit voltage
- 220/230 V AC 50/60 Hz
- Control type
- Push-button start white I; Push-button stop black O; Rotary handle emergency stop red
- Cable entry number
- 4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom
- Width
- 175 mm
- Height
- 165 mm
- Depth
- 165 mm
- Product weight
- 1.12 kg
- Standards
- IEC 60947-4-1; IEC 60204-1
- Product certifications
- CE; UKCA
- Material
- Polycarbonate
- IK degree of protection
- IK07 conforming to IEC 60529
- IP degree of protection
- IP55 conforming to IEC 60529
- Environmental characteristic
- Standard environment
- Warranty (in months)
- 18
- EAN
- 3389110655872
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3389110655872
- MPN LG1K095M714
More from Schneider Electric
Schneider Electric
Schneider Thalassa PLA Base - 200 x 1244mm, grey, PE ( Polyester )
NSYZA2126G
Schneider Electric

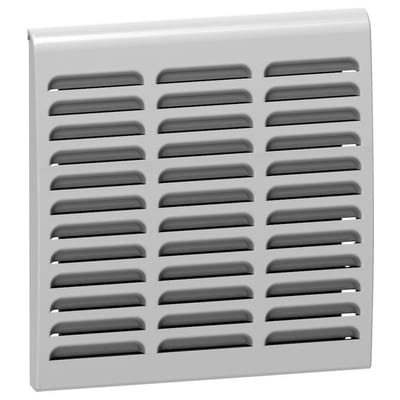

Schneider ClimaSys CA Grate - 223mm, 223mm
NSYCAG223LFHD
Schneider Electric
Schneider GV4AU MN Undervoltage Coil - TeSys 3606485444840
GV4AU247
Schneider Electric

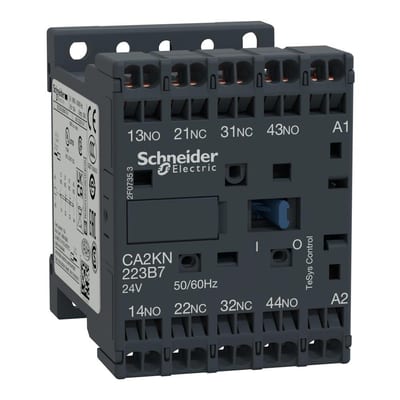

Schneider CA2K Control Relay - TeSys K, 2NO - 2NC, 230V
CA2KN223P7
Schneider Electric

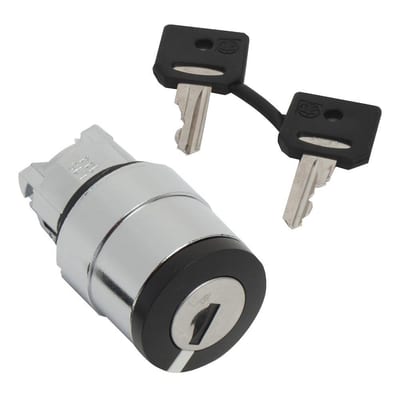

Schneider ZB4 Key Handle - Harmony XB4, 3PCS 3389110122305
ZB4BG714
Schneider Electric

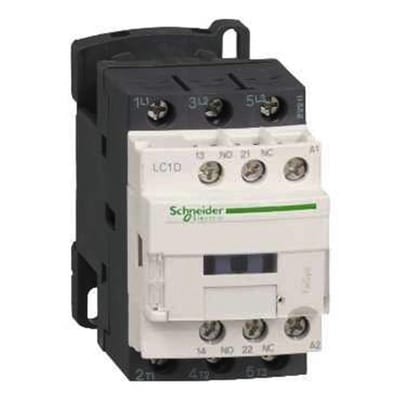

Schneider LC1D Contactor - TeSys D, 9A, 3P, 24 DCV
3389110353075
Schneider Electric

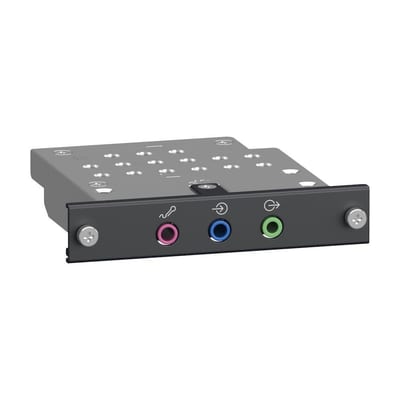

Schneider Harmony P6 Interface Module - HMIYP6MPAU
Schneider Electric

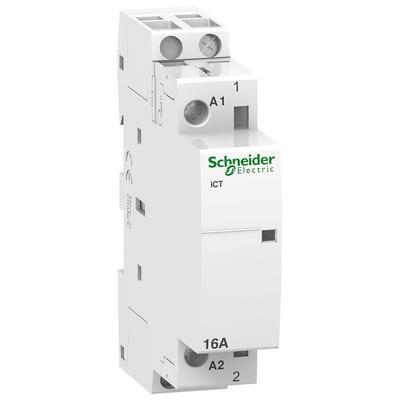

Schneider ACTI9 iCT Contactor - 16A, 1P, 1NO, 48 ACV, 18
