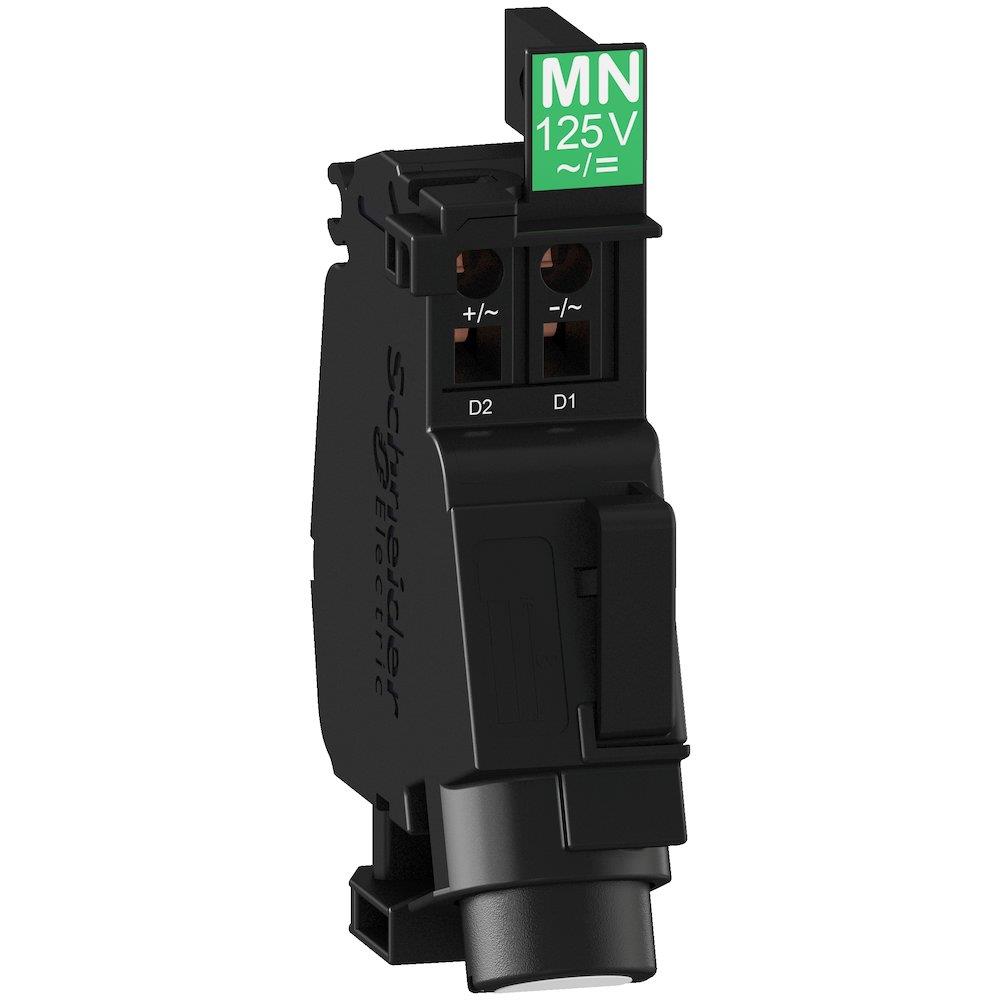

Schneider GV4AU MN Undervoltage Coil - TeSys 3606485444840

Schneider GV4AU MN Undervoltage Coil. Motor protection and accessories (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys. Supplied under manufacturer part number GV4AU247, EAN 3606485444840, HS code 8536.30, country of origin France.

Product type

Motor protection and accessories

Product group

Components for panels and boxes

Series

TeSys

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

0.8210 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

France

Customs tariff code (EU CN)

85363010

HS code

8536.30

Manufacturer part number

GV4AU247

Range

TeSys

Device short name

MN

Product or component type

Voltage release

Device application

Control

Range compatibility

TeSys TeSys GV4; TeSys TeSys BV4

Voltage release type

Undervoltage release

[Uc] control circuit voltage

220...240 V AC 50 Hz; 208...240 V AC 60 Hz

[Ui] rated insulation voltage

240 V conforming to IEC 60947-1

Threshold tripping voltage

< 0.35 Un failsafe opening; 0.35...0.7 Un possible opening; 0.85...1.1 Un enabled closing

mounting mode

Internal mounting

Maximum inrush power in VA

7 VA

Maximum hold-in power consumption in VA

7 VA

Mechanical durability

20000 cycles

Operating time

< 50 ms

Connections - terminals

Spring terminals 1 0.5…1.5 mm² - cable stiffness: flexible without cable end

Wire stripping length

8 mm

Quantity per set

Set of 1

Warranty (in months)

18

EAN

3606485444840

HS Code

8536.30

• EAN 3606485444840
• MPN GV4AU247
