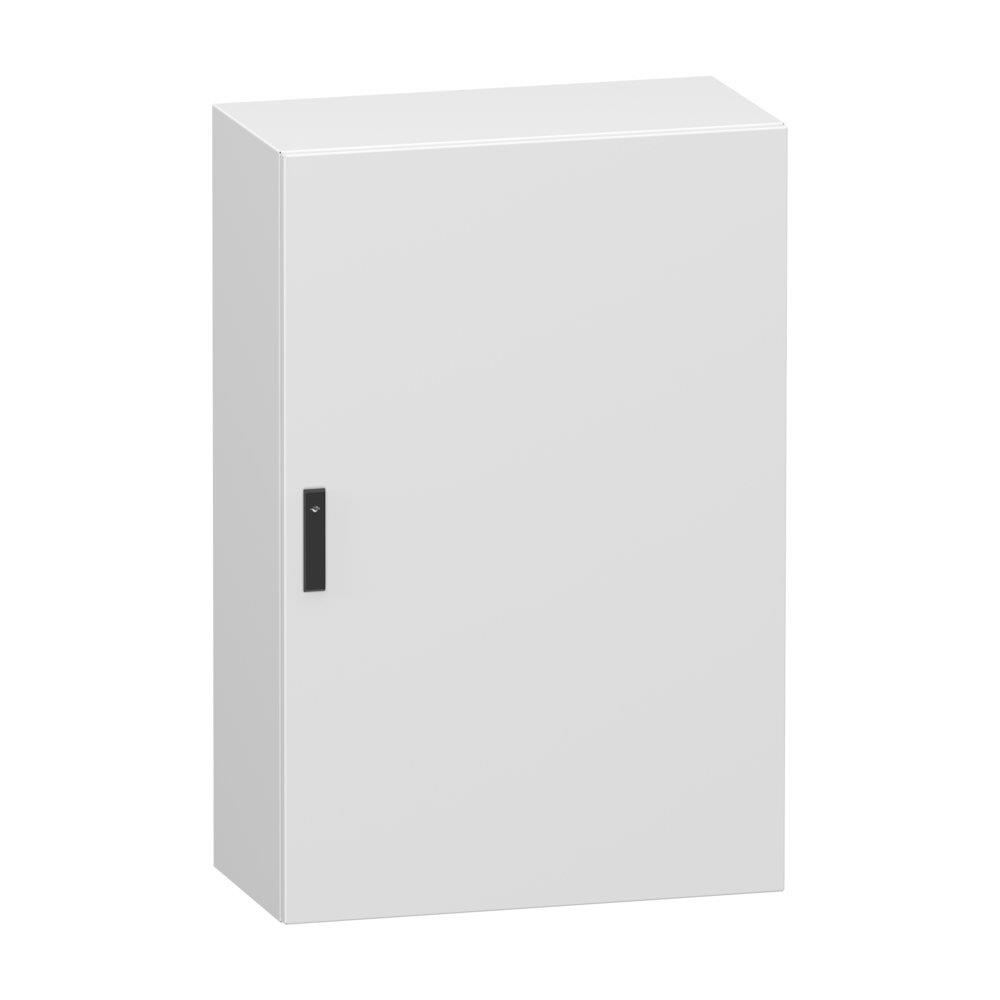

Schneider Spacial CRN Wall cabinet - 1200 x 800mm, 400mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Spacial CRN Wall cabinet. Wall cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: size 1200 x 800 mm, depth 400 mm. Supplied under manufacturer part number NSYCRN128400, EAN 3606485891316, HS code 9403.20, country of origin Spain.
Technical Specifications
- Product type
- Wall cabinets
- Product group
- Tables, cabinets, and boxes
- Size
- 1200 x 800 mm
- Depth
- 400 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 188.6782 kg CO2e per pcs
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 94032080
- HS code
- 9403.20
- Manufacturer part number
- NSYCRN128400
- Range
- PanelSeT
- Product name
- PanelSeT CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1200 mm
- Enclosure nominal width
- 800 mm
- Enclosure nominal depth
- 400 mm
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 2 cable gland plate: bottom
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- body type
- Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 5 mm double-bar
- Type of gland plate
- Standard
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- cUL; UL
- Product weight
- 52.7 kg
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Warranty (in months)
- 18
- EAN
- 3606485891316
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485891316
- MPN NSYCRN128400
