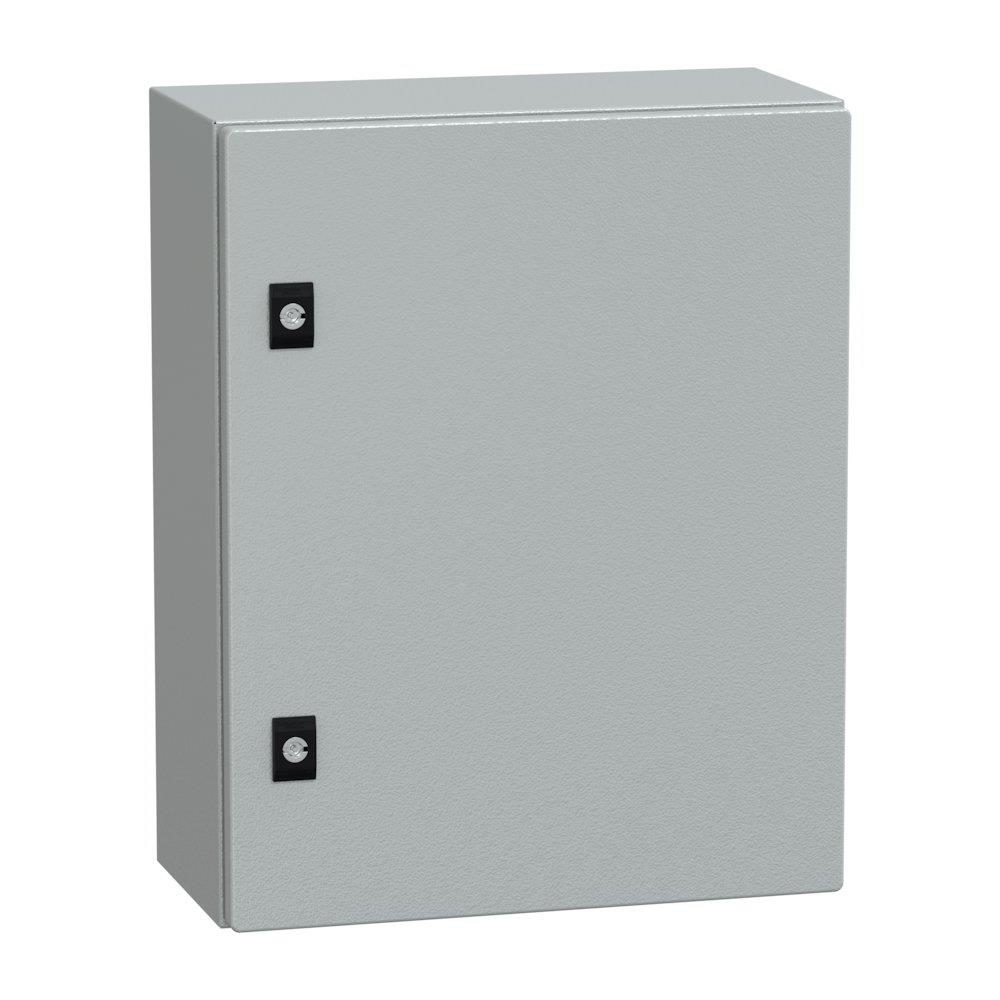

Schneider Spacial CRN Wall cabinet - 500 x 400mm, 200mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Spacial CRN Wall cabinet. Wall cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: size 500 x 400 mm, depth 200 mm. Supplied under manufacturer part number NSYCRN54200P, EAN 3606480212277, HS code 9403.20, country of origin Spain.
Technical Specifications
- Product type
- Wall cabinets
- Product group
- Tables, cabinets, and boxes
- Size
- 500 x 400 mm
- Depth
- 200 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 41.9285 kg CO2e per pcs
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 94032080
- HS code
- 9403.20
- Manufacturer part number
- NSYCRN54200P
- Range
- PanelSeT
- Product name
- PanelSeT CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 500 mm
- Enclosure nominal width
- 400 mm
- Enclosure nominal depth
- 200 mm
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 cable gland plate; 1 door with lock; 1 mounting plate
- Door type
- Plain
- Mounting plate description
- Plain
- body type
- Sides made from a single folded section; Back welded with double profile forming a protected sealed area
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Type of gland plate
- Standard
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws; Mounting plate by fixing element
- Material
- Enclosure: steel; Mounting plate: galvanised steel
- Surface finish
- Enclosure: epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL; cUL; DNV-GL
- Product weight
- 10.928 kg
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Warranty (in months)
- 18
- EAN
- 3606480212277
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480212277
- MPN NSYCRN54200P
