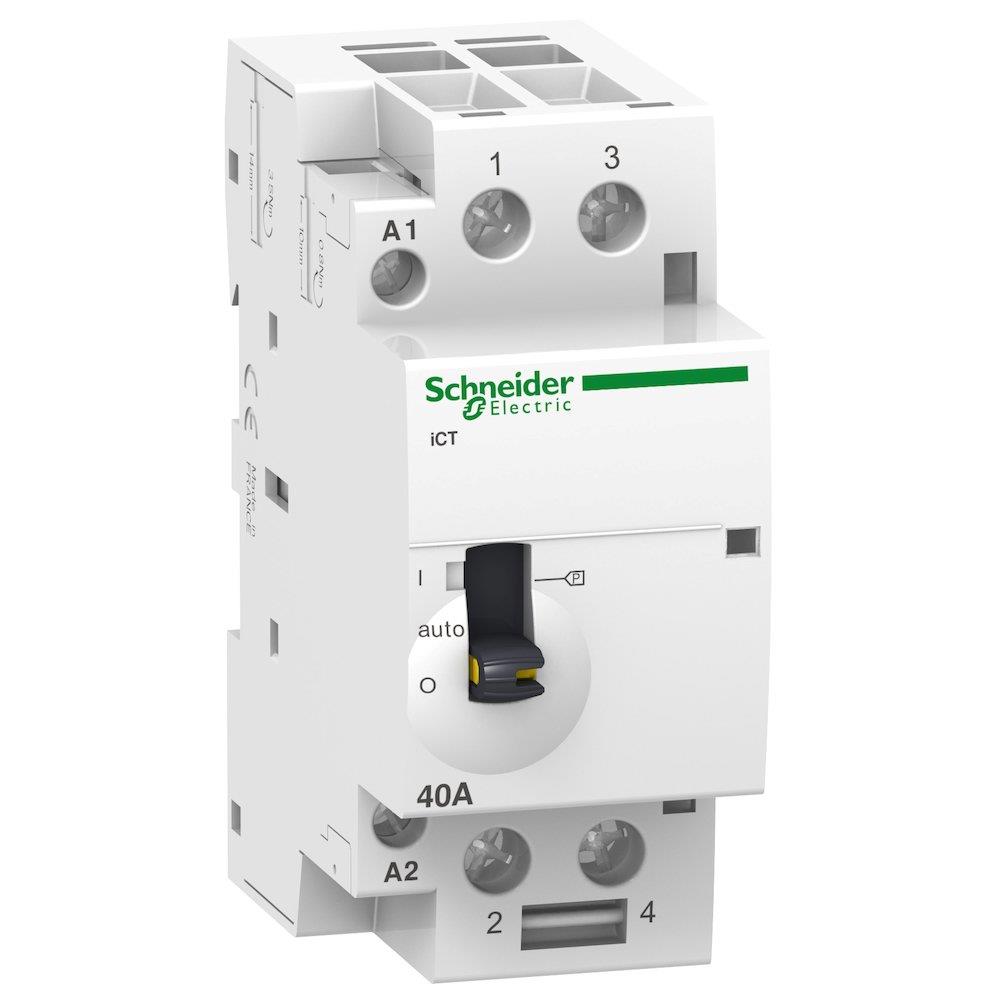

Schneider ACTI9 iCT Contactor on/off - 40A, 2P, 2NO, 24 ACV, 18

Schneider Acti9 iCT Contactor on/off. Modular contactor (Electrical Engineering / Components for panels and boxes). Principal data: current 40 A, number of poles 2P, contact type 2NO, voltage 24 V AC. Supplied under manufacturer part number A9C21142, EAN 3606480375255, HS code 8536.41, country of origin France.

Product type

Modular contactor

Product group

Components for panels and boxes

Current

40 A

Number of poles

2P

Contact type

2NO

Voltage

24 V AC

Module size

18

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

10.0204 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85364190

HS code

8536.41

Manufacturer part number

A9C21142

range of product

Acti9

Product name

Acti9 iCT

Product or component type

Contactor

Device short name

iCT

Device application

Motor-heating-lighting

Poles

2P

[Ie] rated operational current

40 A AC-7A; 15 A AC-7B

Pole contact composition

2 NO

Network type

AC

Control type

Remote and manual control

[Uc] control circuit voltage

24 V AC 50 Hz

Network frequency

50 Hz

[Ue] rated operational voltage

250 V AC 50 Hz

Maximum power

1.6 W at 250 V AC

[Ui] rated insulation voltage

500 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

4 kV

Control signal type

Maintained

Switching frequency

100 switching operations/day

Local signalling

Action indicator

Hold-in power consumption in VA

4.6 VA

Inrush power in VA

34 VA

mounting mode

Clip-on

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

4

Height

85 mm

Width

36 mm

Depth

73.5 mm

Colour

White

Mechanical durability

1000000 cycles

Electrical durability

100000 cycles IEC/EN 61095 40 A 50 Hz AC-7A; 30000 cycles IEC/EN 61095 15 A 50 Hz AC-7B; 30000 cycles IEC/EN 61095 50 Hz AC-7C; 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1; 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3; 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a; 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b

Connections - terminals

Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid; Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid; Power circuit: tunnel type terminals1 cable(s) 6…16 mm² flexible; Power circuit: tunnel type terminals1 cable(s) 6…25 mm² rigid; Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible

Tightening torque

Control circuit: 0.8 N.m; Power circuit: 3.5 N.m

Product compatibility

IATEt; IACTp; IACTc; IACTs

Compatibility code

ICT

Market segment

Residential; Small commercial

Standards

IEC/EN 61095

Noise level

30 dB

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

2

Tropicalisation

2 conforming to EN 60947-4-1; 2 conforming to EN 61095; 2 conforming to IEC 1095

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-5…60 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

36

Warranty (in months)

18

EAN

3606480375255

HS Code

8536.41
