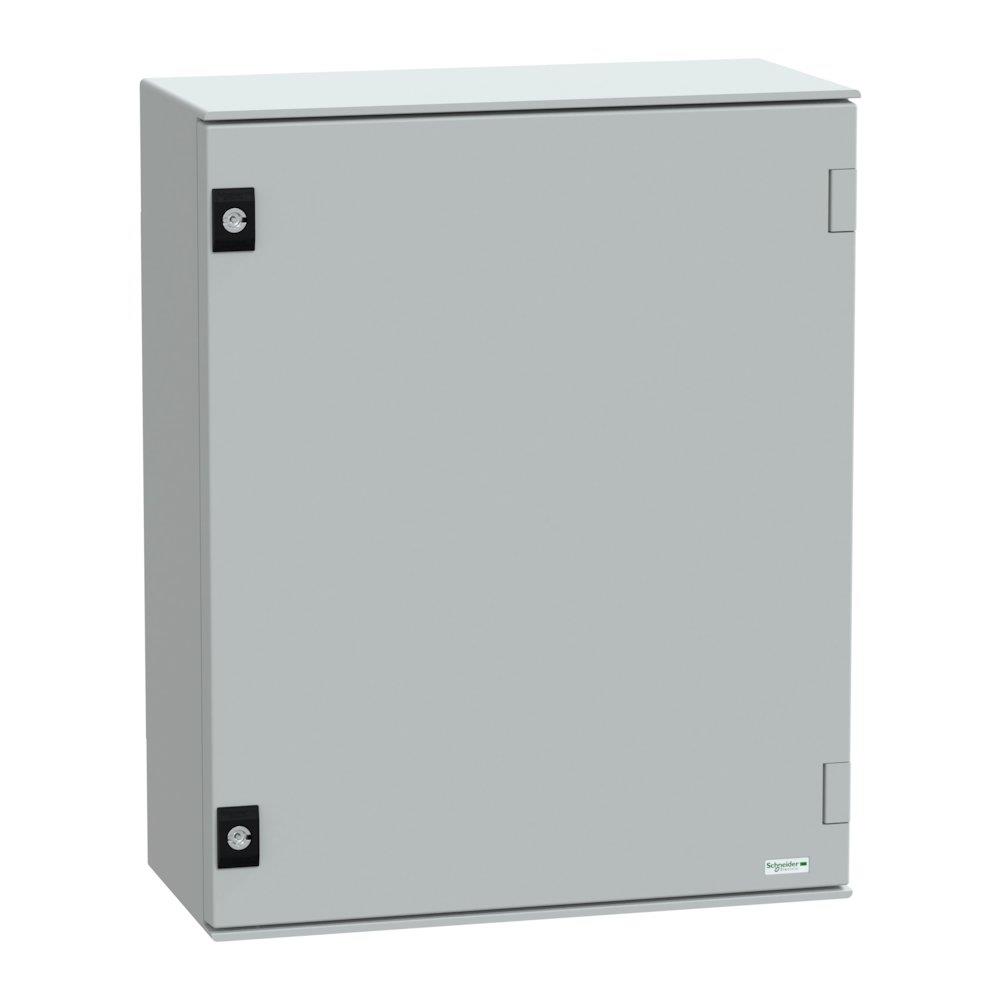

Schneider Thalassa PLM Wall cabinet - 530 x 430mm, 200mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Thalassa PLM Wall cabinet. Wall cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: size 530 x 430 mm, depth 200 mm. Supplied under manufacturer part number NSYPLM54PG, EAN 3606480776595, HS code 9403.70, country of origin Spain.
Technical Specifications
- Product type
- Wall cabinets
- Product group
- Tables, cabinets, and boxes
- Size
- 530 x 430 mm
- Depth
- 200 mm
- REACH SVHC substance above 0.1%
- Lead, Terphenyl
- Carbon footprint (EPD)
- 20.8000 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 94037000
- HS code
- 9403.70
- Manufacturer part number
- NSYPLM54PG
- Range
- PanelSeT
- Device short name
- PLM
- Enclosure type
- Multi-purpose
- Category
- Compact enclosure
- Nominal height
- 530 mm
- Nominal width
- 430 mm
- Nominal depth
- 200 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 door; 1 mounting plate; 2 lock
- Door type
- Plain
- Lock type
- 3 mm double-bar lock
- Number of locks
- 2
- Mounting plate description
- Plain steel
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Mounting plate by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- NEMA classification 4X; NEMA classification 13; IEC 62208
- Product certifications
- UL
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for operation
- -40…80 °C
- Warranty (in months)
- 18
- EAN
- 3606480776595
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776595
- MPN NSYPLM54PG
