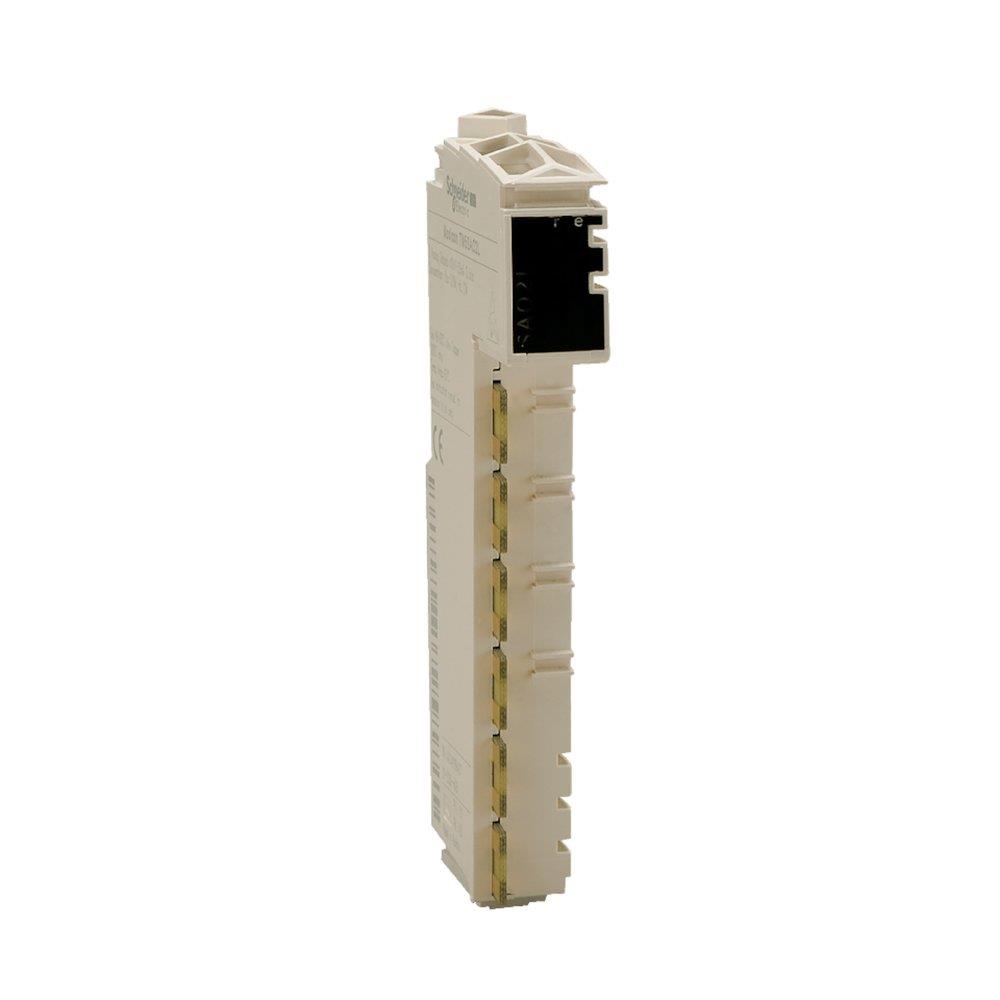

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: number of analogue outputs 4. Supplied under manufacturer part number TM5SAO4H, EAN 3595864074825, HS code 8538.90, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Number of analogue outputs

4

Carbon footprint (EPD)

0.3401 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

TM5SAO4H

Range of product

Modicon TM5

Product or component type

Analog output module

Product compatibility

Logic controller; Motion controller

Range compatibility

Modicon M258; Modicon LMC058

Analogue output number

4

Measurement resolution

305.176 µV, +/- 10 V; 610.352 nA, 0...20 mA

Colour

White

Response time

<= 1 ms

Temperature coefficient

0.01 %FS/°C, analogue output type: current; 0.01 %FS/°C, analogue output type: voltage

Supply

Internal

[Us] rated supply voltage

24 V DC -15...20 %

Sampling duration

50 µs

Analogue output type

Current: 0...20 mA; Voltage: +/- 10 V

Response time on output

<= 1 ms

Type of cable

Shielded cable

Measurement error

< 0.04 % of full scale +/- 10 V 25 °C; < 0.04 % of full scale 0...20 mA 25 °C

Non-linearity

< 0.005 %FS, analogue output type: current; < 0.005 %FS, analogue output type: voltage

Typical current consumption

2 mA at 5 V DC

Power dissipation in W

1.51 W

Isolation between channels

None

Isolation between channels and bus

500 Vrms AC

Local signalling

1 LED green for power supply; 1 LED red for power supply; 4 LEDs yellow for output status

Housing colour

White

Height

99 mm

Width

12.5 mm

Depth

75 mm

Product weight

0.025 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; C-Tick; CULus; GOST-R

Standards

IEC 61131-2; CSA C22.2 No 213; UL 508; CSA C22.2 No 142

Ambient air temperature for operation

0…55 °C without derating (horizontal installation); 0…60 °C with derating factor (horizontal installation); 0…50 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

5…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Warranty (in months)

18

EAN

3595864074825

HS Code

8538.90
