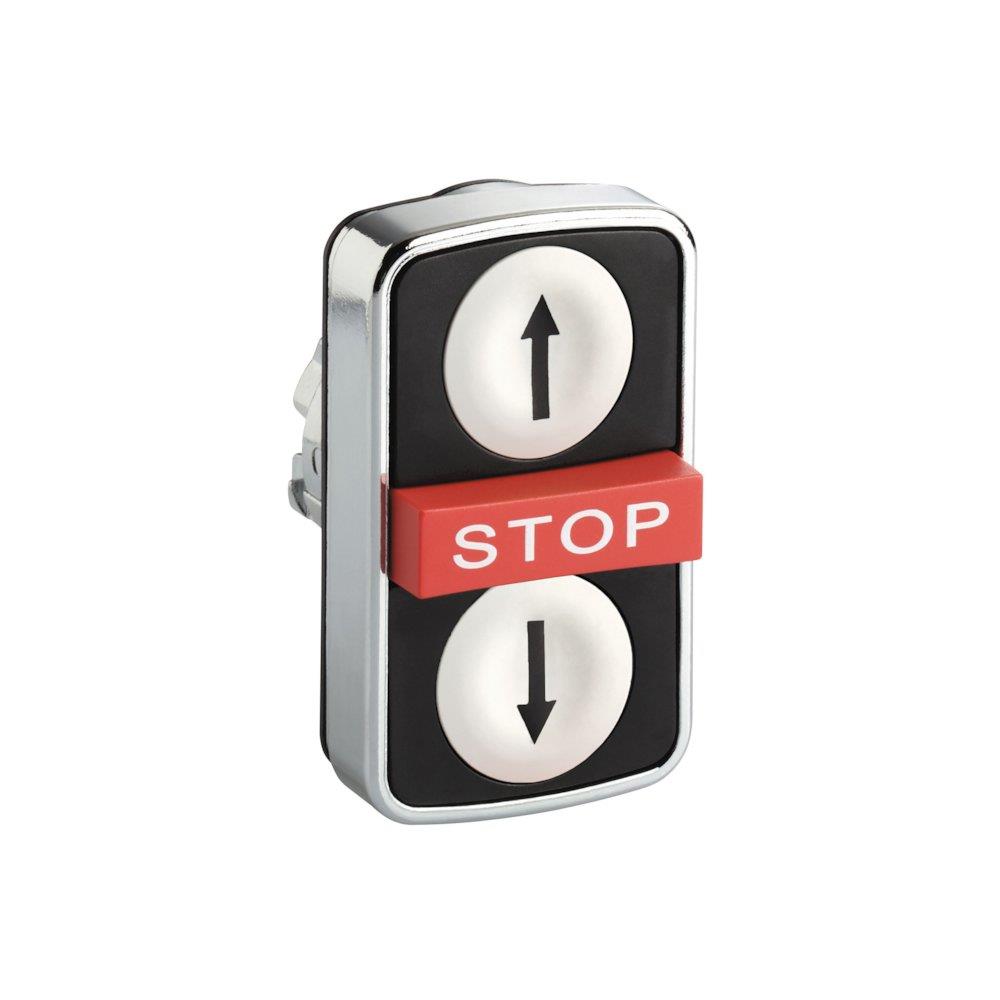

Schneider ZB4 Double Actuator - Harmony XB4, black / white, Arrow - Op - Down 3389119603539

Schneider ZB4 Double Actuator. Double click (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB4, color Black / white, marking Arrow – up – down. Supplied under manufacturer part number ZB4BA71124, EAN 3389119603539, HS code 8538.90, country of origin France.

Product type

Double click

Product group

Push buttons and signal units

Series

Harmony XB4

Color

Black / white

Marking

Arrow – up – down

Diameter

22 mm

Carbon footprint (EPD)

0.5284 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

ZB4BA71124

Range of product

Harmony XB4

Product or component type

Head for triple-headed push-button

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

2 flush - 1 central projecting STOP push-buttons

Operators description

White ''up arrow'' - black ''down arrow'' - red ''STOP''

Product weight

0.056 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Colour of marking

White marking when green, red or black caps; Black marking when white caps

Mechanical durability

1000000 cycles

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting

Device presentation

Basic element

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 60536

IP degree of protection

IP69 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-5; IEC 60947-5-4; UL 508; IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-5-1; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

200

Warranty (in months)

18

EAN

3389119603539

HS Code

8538.90

• EAN 3389119603539
• MPN ZB4BA71124
