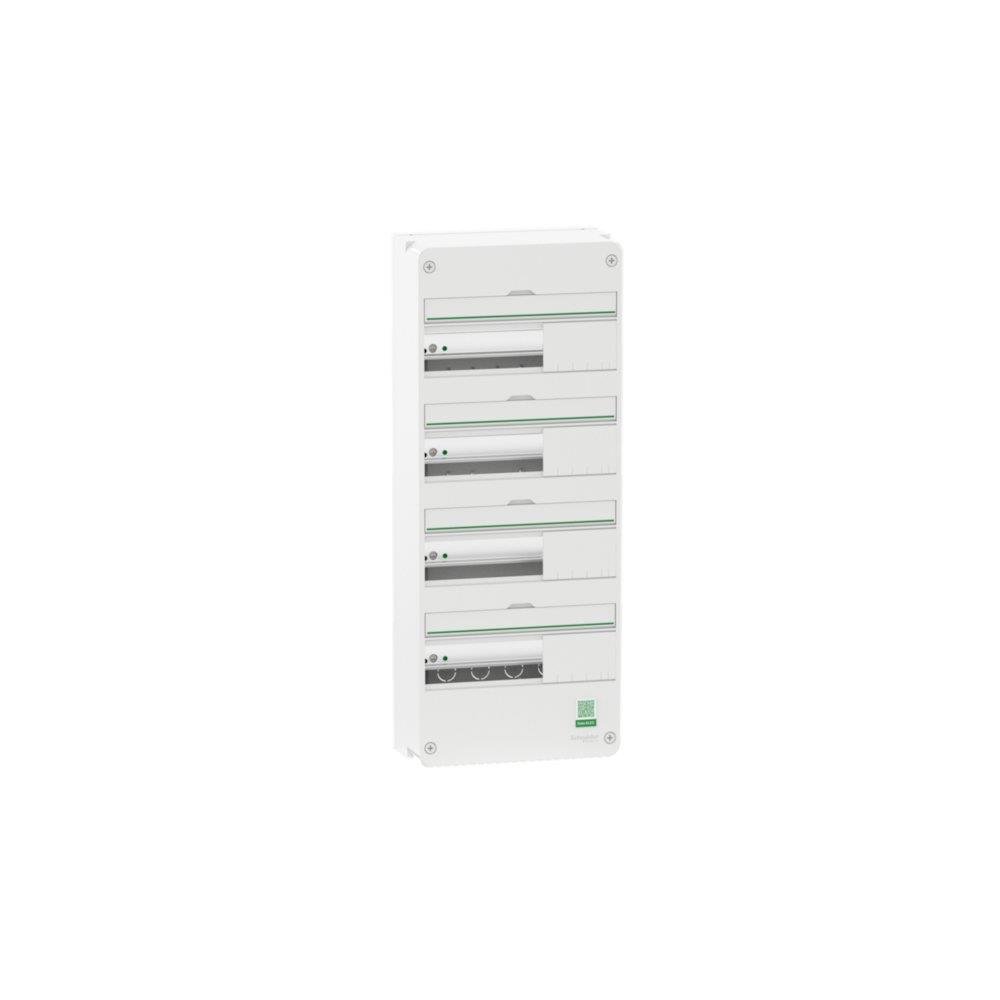

Schneider RESI9 CX Group Panel white - 4 x 13
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Resi9 CX Group Panel white. Group and scoreboards (Electrical Engineering / Tables, cabinets, and boxes). Principal data: module size 4 x 13. Supplied under manufacturer part number R9H13844, EAN 3606481185662, HS code 8538.10, country of origin Italy.
Technical Specifications
- Product type
- Group and scoreboards
- Product group
- Tables, cabinets, and boxes
- Module size
- 4 x 13
- REACH SVHC substance above 0.1%
- Lead, Octrizole
- Carbon footprint (EPD)
- 9.0500 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 85381000
- HS code
- 8538.10
- Manufacturer part number
- R9H13844
- Range
- Resi9
- Product name
- Resi9 CX
- Product or component type
- Enclosure
- enclosure type
- Distribution enclosure
- Nb of 18 mm modules per row
- 13
- Provided equipment
- 1 x terminal block support; 1 x earth terminal block; 1 x front cover; 4 x DIN rail; 4 x label protector; 4 x blanking plate; 1 x back plate
- Type of door
- Without
- Standards
- IEC 60670-1; IEC 60670-24
- Colour
- Enclosure: white (RAL 9003)
- Enclosure mounting
- Surface
- Nb of horizontal rows
- 4
- [In] rated current
- 90 A
- Type of rail
- DIN
- Mounting plate description
- Without mounting plate
- Comb busbar and distribution block compatibility
- Standard
- Number of terminal blocks
- 1 earth with 24 outgoers
- Distribution block outgoers
- 3 x 25 mm² + 21 x 4 mm² for earth
- Enclosure material
- Self-extinguishing material
- Width
- 252 mm
- Height
- 625 mm
- Depth
- 120 mm
- Internal depth
- 106 mm
- Targeted country
- Denmark
- Fire resistance
- 650 °C conforming to EN/IEC 60695-2-11
- IP degree of protection
- IP30 without door conforming to EN/IEC 60529; IP40 with door conforming to EN/IEC 60529
- IK degree of protection
- IK08 conforming to EN/IEC 62262; IK08
- Overvoltage category
- Class II
- Ambient air temperature for operation
- -15…60 °C
- Warranty (in months)
- 18
- EAN
- 3606481185662
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606481185662
- MPN R9H13844
