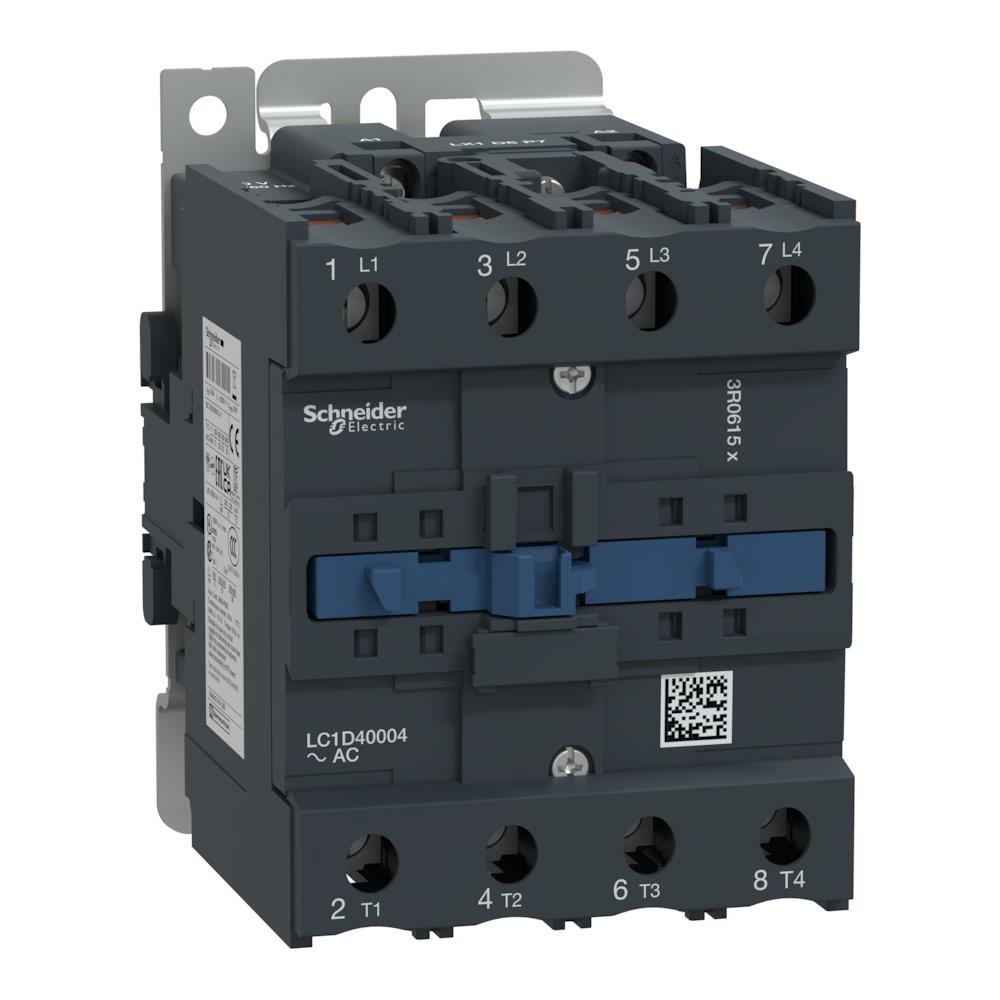

Schneider LC1D Contactor - TeSys D, 40A, 4P, 230 ACV

Schneider LC1D Contactor. Contactors and thermal relays (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, current 40 A, number of poles 4P, voltage 230 V AC. Supplied under manufacturer part number LC1D40004P7, EAN 3389110069631, HS code 8536.49, country of origin Czechia.

Product type

Contactors and thermal relays Product group: Components for panels and boxes Series: TeSys D Current: 40 A Number of poles: 4P Voltage: 230 V AC Carbon footprint (EPD): 4.3894 kg CO2e per pcs Country of origin: Czechia Customs tariff code (EU CN): 85364900 HS code: 8536.49 Manufacturer part number: LC1D40004P7 Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load Utilisation category: AC-1; AC-3; AC-3e; AC-4 Poles description: 4P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 60 A (at <60 °C) AC AC-1 for power circuit [Uc] control circuit voltage: 230 V AC 50/60 Hz Compatibility code: LC1D Pole contact composition: 4 NO Protective cover: With [Ith] conventional free air thermal current: 10 A (at 60 °C) for control circuit; 60 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for control circuit conforming to IEC 60947-5-1; 800 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 800 A at 440 V for power circuit conforming to IEC 60947 Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1; 80 A gG at <= 690 V coordination type 1 for power circuit; 80 A gG at <= 690 V coordination type 2 for power circuit Average impedance: 1.5 mOhm - Ith 60 A 50 Hz for power circuit Power dissipation per pole: 5.4 W AC-1 [Ui] rated insulation voltage: Control circuit: 600 V CSA certified; Control circuit: 600 V UL certified; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Control circuit: 690 V conforming to IEC 60947-1; Power circuit: 690 V conforming to IEC 60947-1 Overvoltage category: III [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 6 Mcycles Control circuit type: AC at 50/60 Hz standard Coil technology: Without built-in bidirectional peak limiting diode suppressor Control circuit voltage limits: 0.3...0.6 Uc (60 °C):drop-out AC 50/60 Hz; 0.8...1.1 Uc (60 °C):operational AC 50 Hz; 0.85...1.1 Uc (60 °C):operational AC 60 Hz Inrush power in VA: 140 VA cos phi 0.75 (at 20 °C); 160 VA cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 13 VA 60 Hz cos phi 0.3 (at 20 °C); 15 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 4…5 W at 50/60 Hz for control circuit Operating time: 12...26 ms closing; 4...19 ms opening Maximum operating rate: 3600 cyc/h at 60 °C Connections - terminals: Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1…35 mm² - cable stiffness: solid without cable end Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2; Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm; Power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 minimum switching voltage: 17 V for control circuit minimum switching current: 5 mA for control circuit Insulation resistance: > 10 MOhm for control circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts; 1.5 ms on energisation between NC and NO contacts Mounting support: Rail; Plate Standards: CSA C22.2 No 14; EN 60947-5-1; UL 60947-4-1; IEC 60947-4-1; EN 60947-4-1; IEC 60947-5-1 Product certifications: LROS (Lloyds register of shipping); GL; DNV; UL; CSA; RINA; BV; CCC; GOST; UKCA IP degree of protection: IP2X conforming to IEC 60529; IP2X conforming to VDE 0106 Protective treatment: TH (pollution degree 3) conforming to IEC 60068 Permissible ambient air temperature around the device: -5…60 °C; -40…70 °C at Uc Operating altitude: 3000 m without derating Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Shocks contactor open (8 Gn for 11 ms) ; Shocks contactor closed (10 Gn for 11 ms) ; Vibrations contactor opened (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) Height: 127 mm Width: 85 mm Depth: 125 mm Product weight: 1.44 kg Warranty (in months): 18 EAN: 3389110069631

HS Code

8536.49

• EAN 3389110069631
• MPN LC1D40004P7
