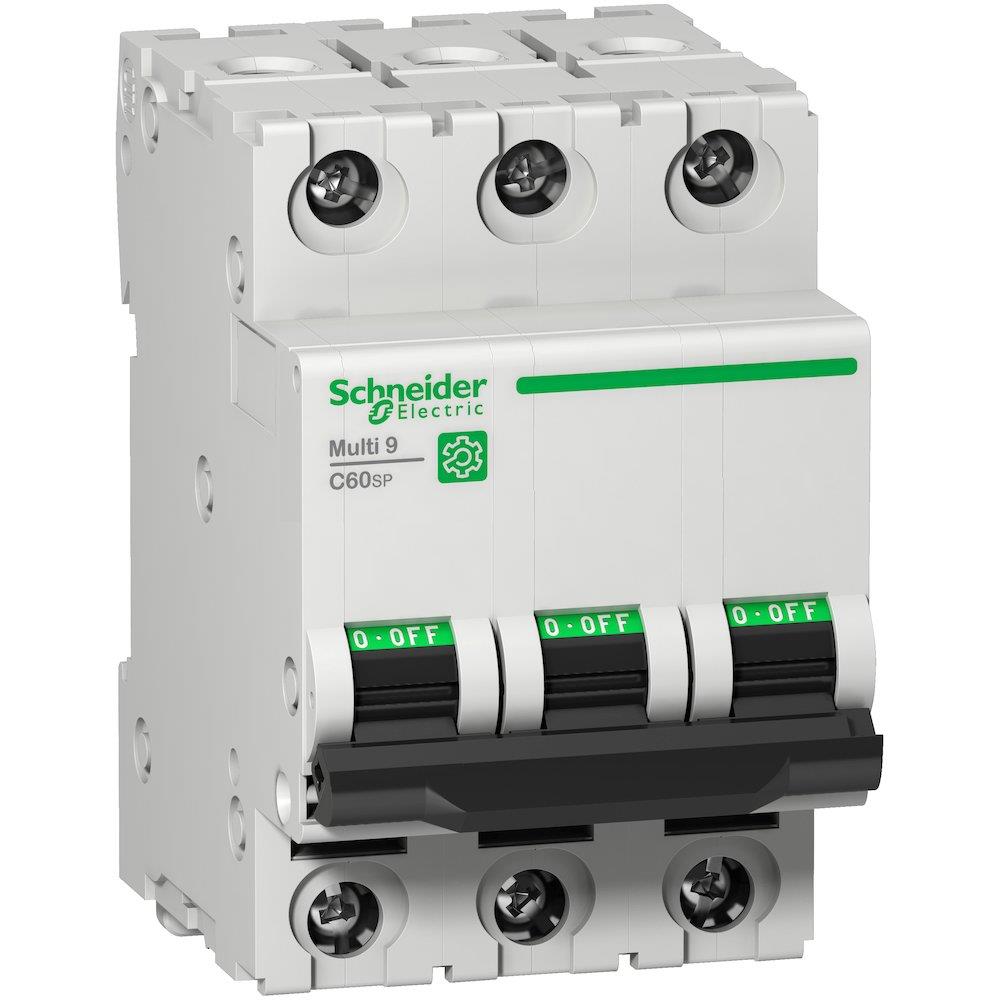

Schneider MULTI9 C60SP Circuit breaker - MULTI9 C60, 25A, 3P, D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Multi9 C60SP Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Multi9 C60, current rating 25 A, number of poles 3P, tripping characteristic D. Supplied under manufacturer part number M9F23325, EAN 3606481169129, HS code 8536.20, country of origin France.
Technical Specifications
- Product type
- Circuit breakers
- Product group
- Components for panels and boxes
- Series
- Multi9 C60
- Current rating
- 25 A
- Number of poles
- 3P
- Tripping characteristic
- D
- Breaking capacity
- 10 kA
- Width
- 54 mm
- REACH SVHC substance above 0.1%
- Triphenyl phosphate
- Carbon footprint (EPD)
- 0.7980 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- France
- Customs tariff code (EU CN)
- 85362010
- HS code
- 8536.20
- Manufacturer part number
- M9F23325
- Range
- Multi9
- Product name
- Multi9 C60
- Product or component type
- Miniature circuit-breaker
- Device short name
- C60SP
- Device application
- Distribution
- Poles description
- 3P
- Number of protected poles
- 3
- [In] rated current
- 25 A at 25 °C conforming to EN/IEC 60947-2
- Network type
- AC
- Trip unit technology
- Thermal-magnetic
- Curve code
- D
- Standards
- EN/IEC 60947-2; GB/T 14048.2; UL 1077; CSA C22.2 No 235
- Product certifications
- IEC; CCC; UR; CSA
- [Ue] rated operational voltage
- 240 V AC 50/60 Hz; 415 V AC 50/60 Hz; 440 V AC 50/60 Hz
- Magnetic tripping limit
- 12 x In +/- 20 % AC
- [Ics] rated service breaking capacity
- 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC; 7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC; 15 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC; 4.5 kA 75 % conforming to GB/T 14048.2 - 440 V AC; 7.5 kA 75 % conforming to GB/T 14048.2 - 415 V AC; 15 kA 75 % conforming to GB/T 14048.2 - 240 V AC
- [Ui] rated insulation voltage
- 500 V AC conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to EN/IEC 60947-2
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 6
- Height
- 81 mm
- Depth
- 72 mm
- Colour
- Grey
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Provision for padlocking
- Padlockable
- Connections - terminals
- Tunnel type terminal (top or bottom)1…25 mm² (18 AWG...8 AWG) - rigid; Tunnel type terminal (top or bottom)1…16 mm² (18 AWG...8 AWG) - flexible with ferrule; Tunnel type terminal (top or bottom)1…16 mm² (18 AWG...8 AWG) - flexible
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2.5 N.m top or bottom
- Earth-leakage protection
- Without
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Tropicalisation
- 2 conforming to IEC 60068-1
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -30…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Warranty (in months)
- 18
- EAN
- 3606481169129
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3606481169129
- MPN M9F23325
