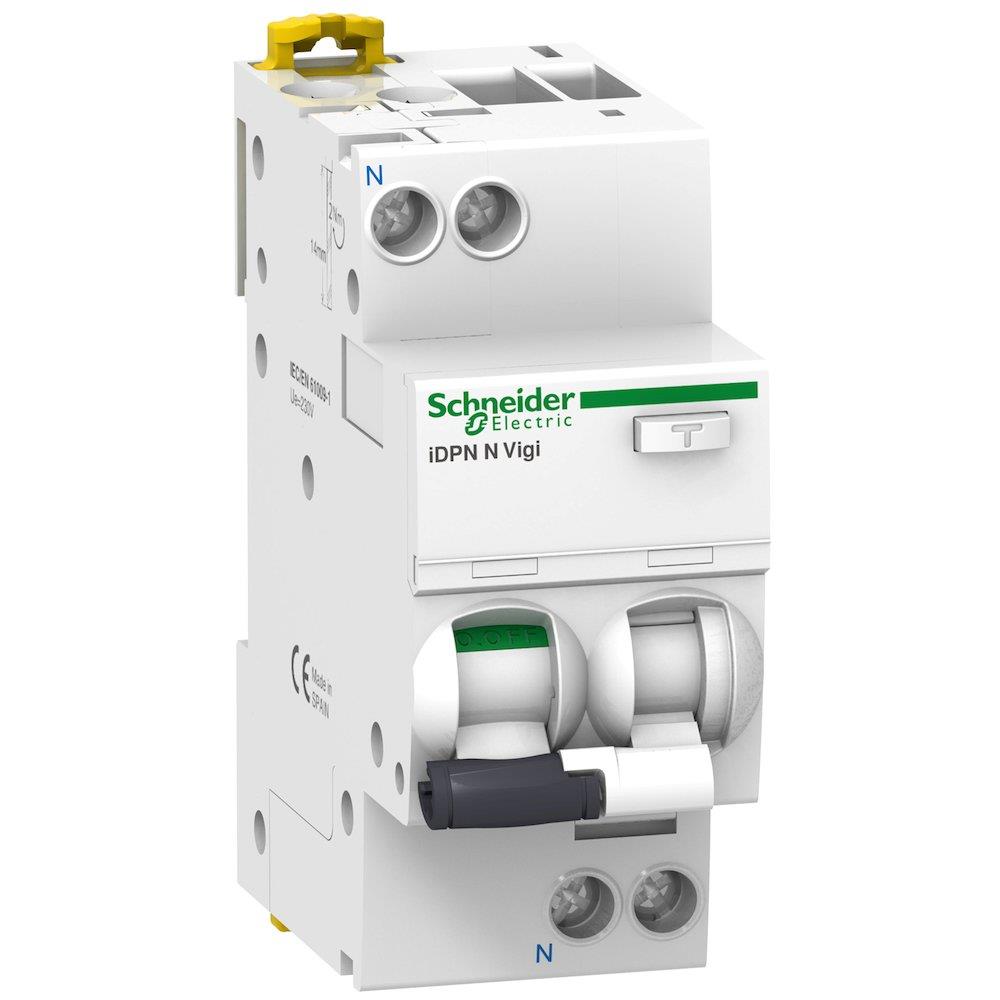

Schneider ACTI9 iDPNN Vigi Combination Switch - ACTI9 iDPN Vigi, 20A, C, A, 100MA

Schneider Acti9 iDPNN Vigi Combination Switch. Residual current devices (RCD, PFI, Combo) (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iDPN Vigi, current rating 20 A, tripping characteristic C, class A. Supplied under manufacturer part number A9D52620, EAN 3606480472473, HS code 8536.20, country of origin Spain.

Product type

Residual current devices (RCD, PFI, Combo)

Product group

Components for panels and boxes

Series

Acti9 iDPN Vigi

Current rating

20 A

Tripping characteristic

C

Class

A

Rated residual current

100 mA

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead tetroxide, Lead-monoxide, Octrizole

Sales unit

Pack

Carbon footprint (EPD)

1.6000 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

Spain

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

A9D52620

Range

Acti9

Product name

Acti9 iDPN Vigi

Product or component type

Residual current breaker with overcurrent protection (RCBO)

Device short name

iDPN N Vigi

Device application

Distribution

Poles description

1P + N

Number of protected poles

1

Neutral position

Left

[In] rated current

20 A

Network type

AC

Network frequency

50 Hz

Trip unit technology

Thermal-magnetic

Curve code

C

Earth-leakage sensitivity

100 mA

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Device location in system

Outgoer

[Ue] rated operational voltage

230...240 V AC 50 Hz

Magnetic tripping limit

5...10 x In

Residual current tripping technology

Voltage independent

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Breaking capacity

6000 A Icn at 230...240 V AC 50 Hz conforming to EN/IEC 61009-2-1

[Ics] rated service breaking capacity

6000 A 100 % x Icn at 230...240 V AC 50 Hz conforming to EN/IEC 61009-2-1

Rated breaking and making capacity

Idm 6000 A at 230...240 V AC 50 Hz conforming to EN/IEC 61009-2-1

Limitation class

3 conforming to EN/IEC 61009-2-1

[Ui] rated insulation voltage

400 V AC 50 Hz

[Uimp] rated impulse withstand voltage

4 kV

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON, OFF, fault trip

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES

Connection pitch

9 mm between phase and neutral

9 mm pitches

4

Height

85 mm

Width

36 mm

Depth

73 mm

Product weight

125 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

20000 cycles

Locking options description

Padlocking device

Connections - terminals

Single terminal top or bottom 1…16 mm² rigid; Single terminal top or bottom 1…10 mm² flexible; Single terminal top or bottom 1…10 mm² flexible with ferrule

Wire stripping length

15 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Integrated

Standards

EN/IEC 61009-2-1

Product certifications

VDE

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3

Overvoltage category

III conforming to IEC 60364

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

EAN

3606480472473

HS Code

8536.20

• EAN 3606480472473
• MPN A9D52620
