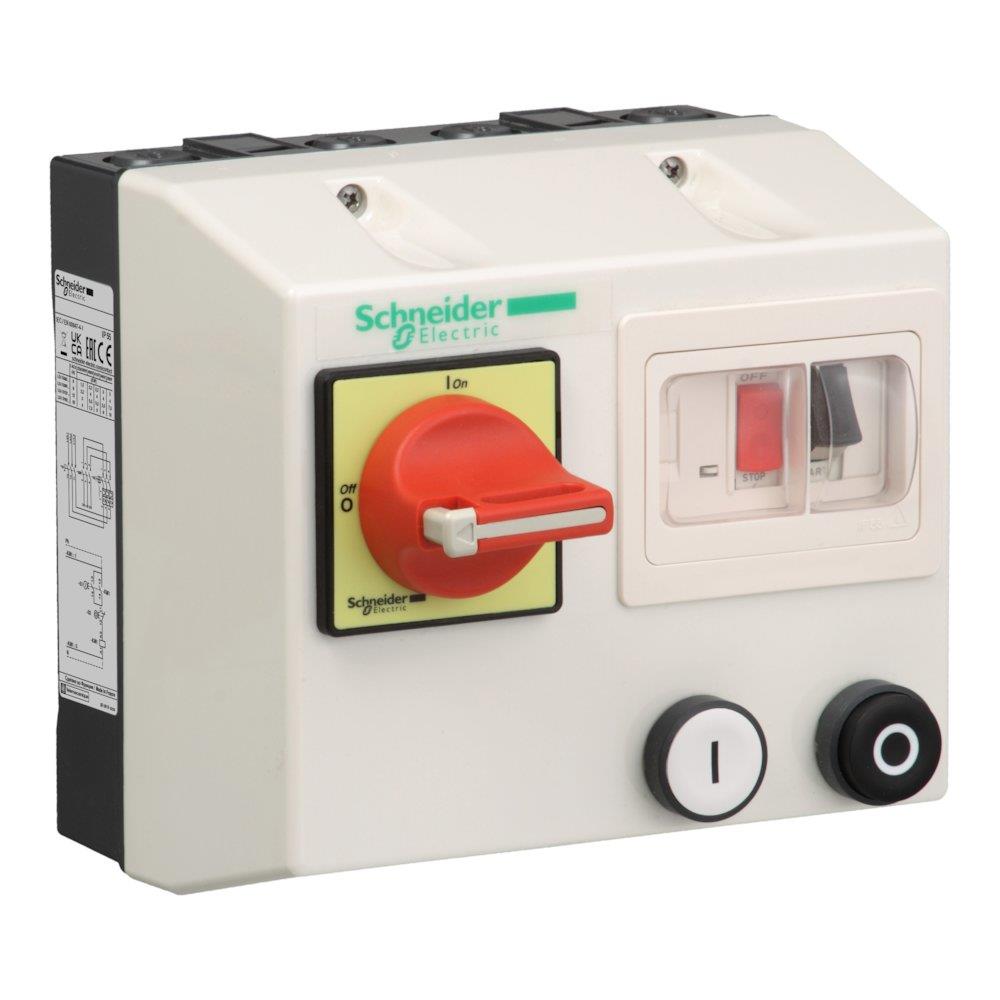

Schneider LG1K Motor Starter - 220V, 0.55kW, 65
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider LG1K Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 220 V, power 0.55 kW, protection class (ip) 65. Supplied under manufacturer part number LG1K065M706, EAN 3389110653656, HS code 8537.10, country of origin France.
Technical Specifications
- Product type
- Motor starters
- Product group
- Components for panels and boxes
- Voltage
- 220 V
- Power
- 0.55 kW
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Octamethylcyclotetrasiloxane, Octrizole
- Carbon footprint (EPD)
- 17.7076 kg CO2e per pcs
- Country of origin
- France
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- LG1K065M706
- Range
- TeSys
- Product name
- TeSys LG
- Device short name
- LG1K
- Product or component type
- Enclosed DOL starter
- Device application
- Safety
- Utilisation category
- AC-3
- Device composition
- Contactor; Switch disconnector; Circuit-breaker
- Motor power kW
- 0.25 kW at 220/230 V AC 50/60 Hz; 0.55 kW at 400/415 V AC 50/60 Hz; 0.55 kW at 440 V AC 50/60 Hz
- Thermal protection adjustment range
- 1…1.6 A
- [Uc] control circuit voltage
- 220/230 V AC 50/60 Hz
- Control type
- Push-button start white I; Push-button stop black O; Rotary handle emergency stop red
- Cable entry number
- 4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom
- Width
- 175 mm
- Height
- 165 mm
- Depth
- 165 mm
- Product weight
- 0.97 kg
- Standards
- IEC 60947-4-1; IEC 60204-1
- Product certifications
- CE; UKCA
- Material
- Polycarbonate
- IK degree of protection
- IK07 conforming to IEC 60529
- IP degree of protection
- IP55 conforming to IEC 60529
- Environmental characteristic
- Standard environment
- Warranty (in months)
- 18
- EAN
- 3389110653656
