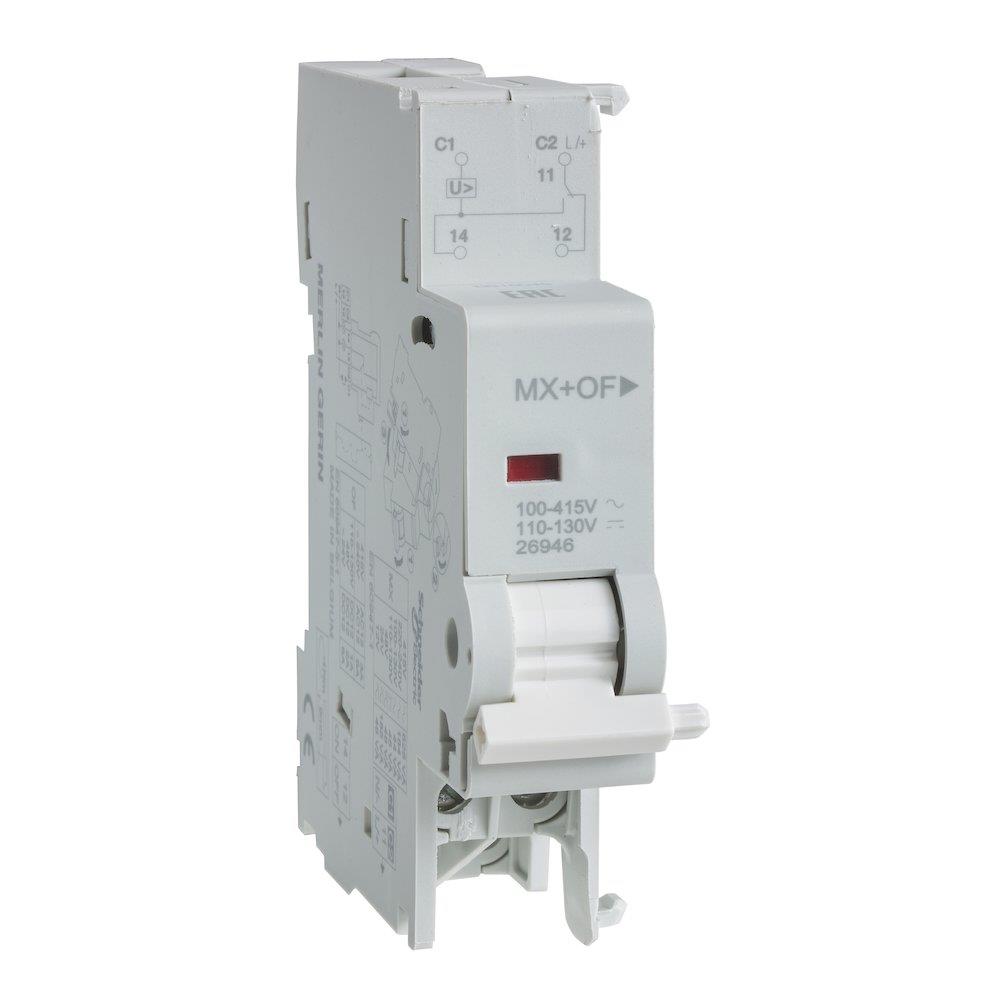

Schneider MULTI9 C60 MX OF Tripping Coil

Schneider Multi9 C60 MX OF Tripping Coil. Accessories for fuses (Electrical Engineering / Components for panels and boxes / Fuses and accessories). Supplied under manufacturer part number M9A26948, EAN 3606480639098, HS code 8536.30, country of origin Belgium.

Product type

Accessories for fuses

Product group

Components for panels and boxes

REACH SVHC substance above 0.1%

None

Carbon footprint (EPD)

0.3465 kg CO2e per pcs

Country of origin

Belgium

Customs tariff code (EU CN)

85363010

HS code

8536.30

Manufacturer part number

M9A26948

range of product

Multi9

Product or component type

Shunt trip release with OC contact

Device short name

MX + OF

Signal contacts composition

1 C/O

[In] rated current

6 A at <= 240 V, AC

[Uc] control circuit voltage

12...24 V AC 50/60 Hz; 12...24 V DC

9 mm pitches

2

Range compatibility

Multi9 C60BP; Multi9 C60BPR; Multi9 C60SP; Multi9 GFP; Multi9 C60H-DC

Local signalling

Action indicator

mounting mode

Fixed

Mounting support

DIN rail

Height

82.5 mm

Width

18 mm

Depth

68 mm

Product weight

0.065 kg

Connections - terminals

Clamp terminal (bottom) - 1 cable(s) 2.5 mm² (14 AWG) - rigid; Clamp terminal (bottom) - 2 cable(s) 1.5 mm² (16 AWG) - rigid

Wire stripping length

9 mm for bottom connection

Tightening torque

1 N.m bottom

Standards

EN/IEC 60947-2

Product certifications

CCC; PCT; UL; UR

Pollution degree

3

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

72

Warranty (in months)

18

EAN

3606480639098

HS Code

8536.30
