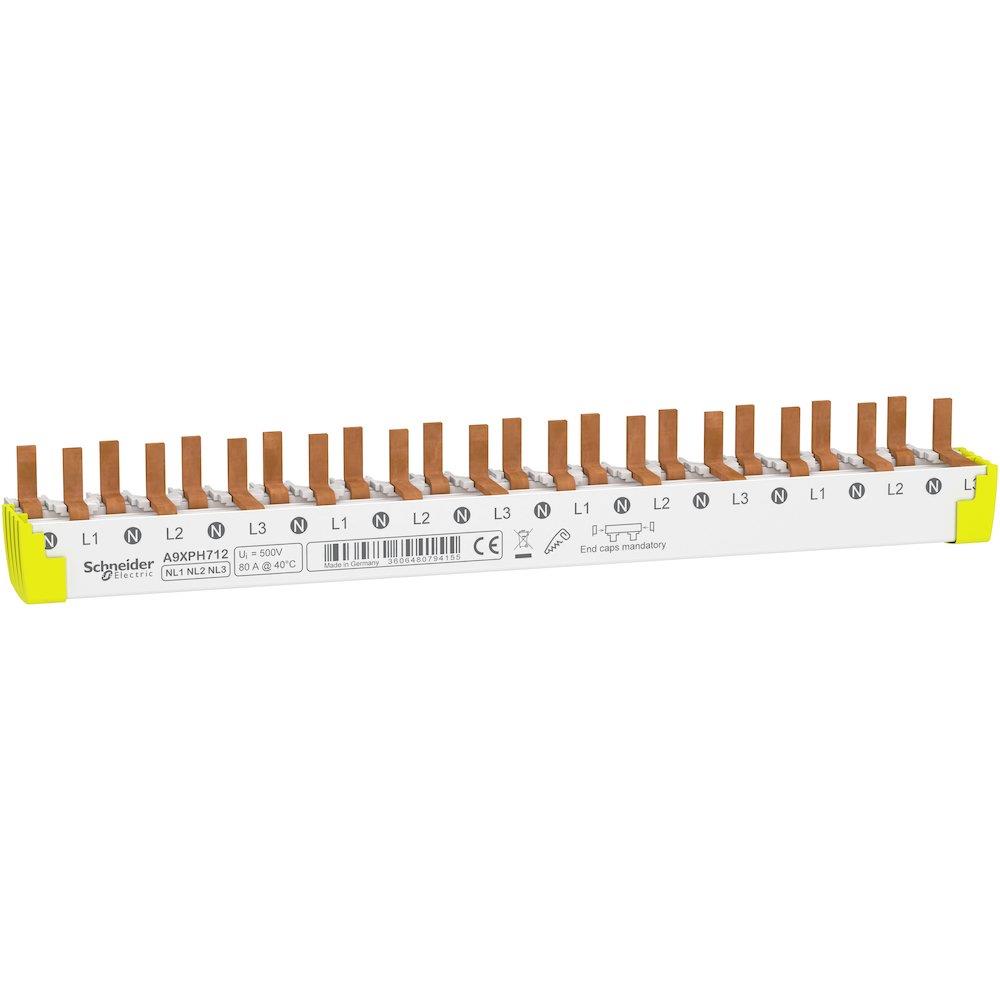

Schneider ACTI9 Loop Rail - 3606480794155

Schneider Acti9 Loop Rail. Various machine installations (Electrical Engineering / Branching material). Supplied under manufacturer part number A9XPH712, EAN 3606480794155, HS code 8536.90, country of origin Germany.

Product type

Various machine installations

Product group

Branching material

Carbon footprint (EPD)

1.2773 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

85369095

HS code

8536.90

Manufacturer part number

A9XPH712

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

3L + N

Length in 18 mm modules

12

Standards

EN/IEC 61439-1

Number of ways

12 ways N + L

Distribution type

N L1 N L2 N L3

Poles configuration for 1 way

1 x 1P + N; 0.33 x 3P; 0.33 x 3P + N

Connection pitch

9 mm between phase and neutral; 18 mm between phases

Connector type

Tooth

Distance between way

18 mm

Marking

N L1 N L2 N L3

Insulation

Insulated

Device presentation

Cuttable

[Ie] rated operational current

80 A at 40 °C

[Ue] rated operational voltage

230 V AC Ph/N; 400 V AC Ph/Ph

[Ui] rated insulation voltage

500 V AC conforming to IEC 61439-1

[Uimp] rated impulse withstand voltage

6 kV

Mounting location

Bottom on tunnel type terminals

9 mm pitches

24

Height

30 mm

Width

220 mm

Depth

30 mm

Colour

White (RAL 9003)

Range compatibility

Acti9 iDPN; Acti9 iDPN Vigi; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40; Resi9

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7-1

IP degree of protection

IP20 with end-pieces and tooth covers

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

40

Warranty (in months)

18

EAN

3606480794155

HS Code

8536.90

• EAN 3606480794155
• MPN A9XPH712
