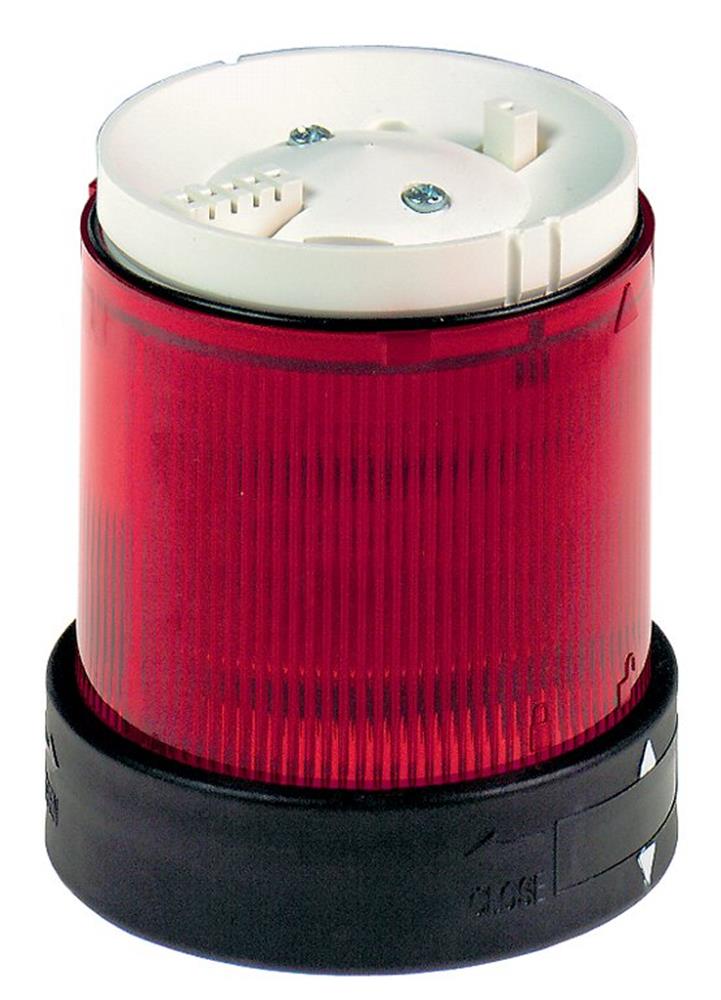

Schneider XVBC Light unit - Harmony XVB Universal, 24 AC/DCV, red, Blink, 70mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider XVBC Light unit. Signal units (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XVB Universal, voltage 24 V AC/DC, color Red, type Blink. Supplied under manufacturer part number XVBC5B4, EAN 3389110144710, HS code 8531.80, country of origin Indonesia.
Technical Specifications
- Product type
- Signal units
- Product group
- Push buttons and signal units
- Series
- Harmony XVB Universal
- Voltage
- 24 V AC/DC
- Color
- Red
- Type
- Blink
- Diameter
- 70 mm
- Protection class (IP)
- 65
- REACH SVHC substance above 0.1%
- Lead, Diarylmethane, Diboron-trioxide, Lead-monoxide
- Sales unit
- Carton
- Carbon footprint (EPD)
- 1.4611 kg CO2e per pcs
- Country of origin
- Indonesia
- Customs tariff code (EU CN)
- 85318070
- HS code
- 8531.80
- Manufacturer part number
- XVBC5B4
- Range of product
- Harmony XVB Universal
- Product or component type
- Indicator bank
- Beacon or indicator bank unit type
- Illuminated unit
- Signalling type
- Flashing
- Mounting diameter
- 70 mm
- Component name
- XVBC
- Material
- Polycarbonate
- Light source
- Integral LED, red
- Bulb type
- Protected LED
- [Us] rated supply voltage
- 24 V AC/DC
- Assembly style
- Customer assembly, up to 5 units
- Connections - terminals
- Screw clamp terminals, <= 1 x 1.5 mm² with cable end
- [Ui] rated insulation voltage
- 250 V conforming to IEC 60947-1
- Nominal voltage limit
- 0.85...1.1 Un conforming to IEC 60947-5-1
- Current consumption
- < 47 mA AC/DC
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to IEC 60947-1
- Flashing frequency
- 1 Hz
- CAD overall width
- 70 mm
- CAD overall height
- 63 mm
- CAD overall depth
- 70 mm
- Product weight
- 0.17 kg
- Pollution degree
- 2
- Product certifications
- CCC; EAC; CSA C22-2 No 14; UL 508
- Standards
- IEC 60947-5-1
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Electrical shock protection class
- Class I on support tube conforming to IEC 61140; Class II on base unit conforming to IEC 61140
- IP degree of protection
- IP65 on fixing base XVBZ0. conforming to IEC 60529; IP66 on base unit conforming to IEC 60529
- NEMA degree of protection
- UL type 4X conforming to UL (indoor)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 36
- Warranty (in months)
- 18
- EAN
- 3389110144710
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389110144710
- MPN XVBC5B4
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 1A, 2P, D
A9F05201
Schneider Electric
Schneider Harmony P6 Interface Card - HMIYP6MPR23P4
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 20A, 1P + N, B
A9F03620
Schneider Electric
Schneider Thalassa PLA Floor Cabinet - 1500 x 1000mm, 420mm 3606480775727
NSYPLAZ15104G
Schneider Electric

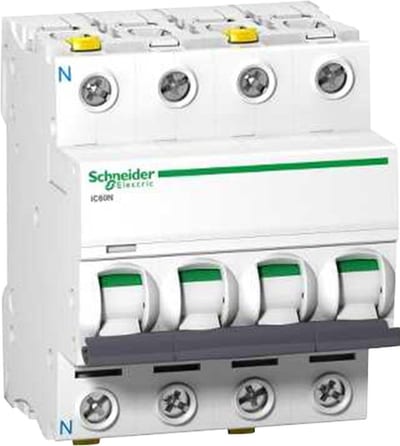

Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 2A, 3P + N, C
A9F04702
Schneider Electric

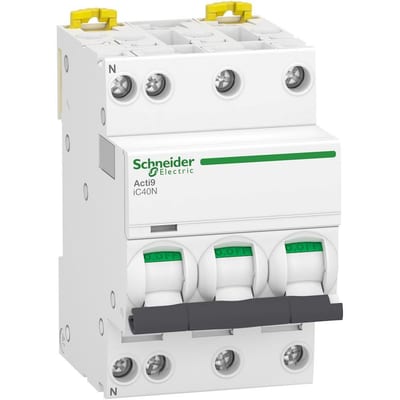

Schneider ACTI9 IC40N Circuit breaker - ACTI9 IC40, 25A, 3P + N, D
A9P64725
Schneider Electric

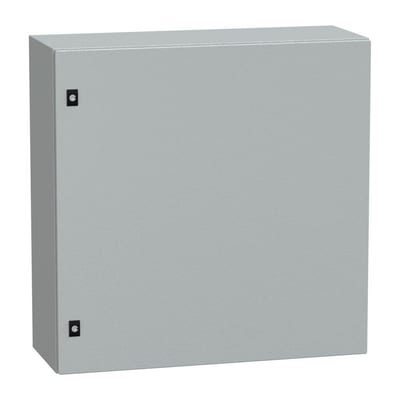

Schneider Spacial CRN Wall cabinet - 800 x 800mm, 300mm 3606480211737
NSYCRN88300
Schneider Electric

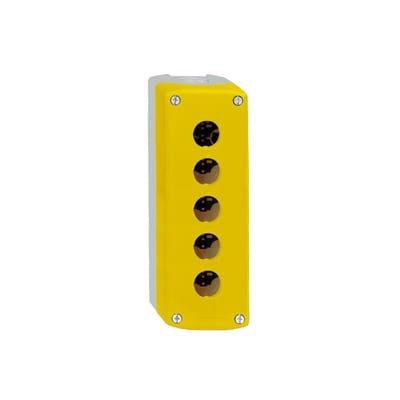

Schneider XALK Push button box - Harmony XALK, yellow 3389110127348
