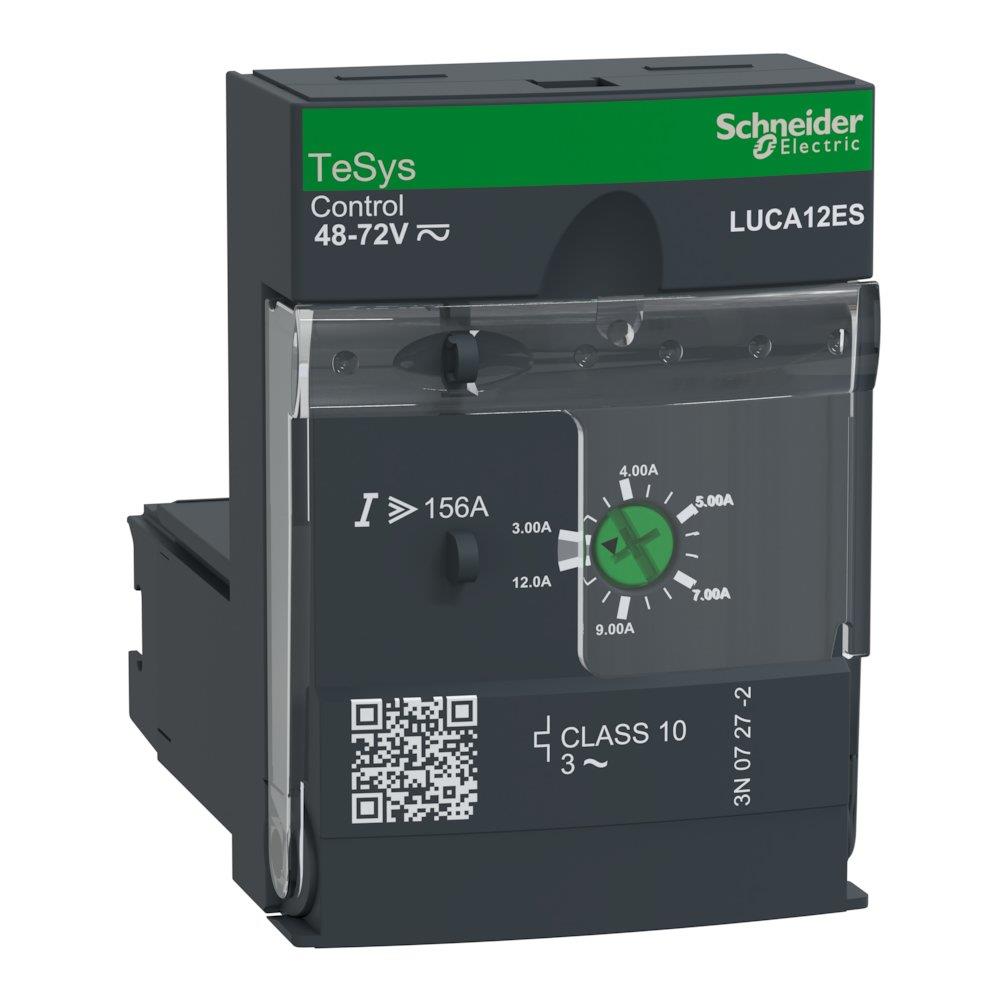

Schneider LUCA Power Module - TeSys Ultra, 48 AC / 48-72 DCV 3389110363975

Schneider LUCA Power Module. Motor protection and accessories (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys Ultra, voltage 48 AC / 48-72 V DC. Supplied under manufacturer part number LUCA12ES, EAN 3389110363975, HS code 8536.30, country of origin France.

Product type

Motor protection and accessories

Product group

Components for panels and boxes

Series

TeSys Ultra

Voltage

48 AC / 48-72 V DC

REACH SVHC substance above 0.1%

2-methylimidazole, Lead, Diarylmethane, Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

9.4500 kg CO2e per pcs

Environmental declaration

PEP ECO Passport

Country of origin

France

Customs tariff code (EU CN)

85363010

HS code

8536.30

Manufacturer part number

LUCA12ES

Range

TeSys

Range of product

TeSys Ultra

Product name

TeSys Ultra

Device short name

LUCA

Product or component type

Standard control unit

Device application

Motor control; Motor protection

Product specific application

Basic protection requirements for motor starters: overload and short-circuit

main function available

Earth fault protection; Manual reset; Protection against overload and short-circuit; Protection against phase failure and phase imbalance

Product compatibility

Power base LUB12; Power base LUB32; Power base LUB38; Power base LUB120; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B12ES; Reversing contactor breaker LU2B32ES

[Ue] rated operational voltage

690 V AC

Network frequency

40...60 Hz

Load type

3-phase motor - cooling: self-cooled

Utilisation category

AC-43; AC-44; AC-41

Motor power kW

5.5 kW at 400...440 V AC 50/60 Hz; 5.5 kW at 500 V AC 50/60 Hz; 9 kW at 690 V AC 50/60 Hz

rated motor current adjustment range

3…12 A

Thermal overload class

Class 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C conforming to IEC 60947-6-2; Class 10 - frequency limit: 40…60 Hz - temperature compensation: -25…70 °C conforming to UL 508

Tripping threshold

14.2 x Ir +/- 20 %

Phase failure sensitivity

Yes

[Uc] control circuit voltage

48 V AC; 48...72 V DC

Control circuit voltage limits

38.5...72 V for AC circuit 48 V in operation; 38.5...93 V for DC circuit 48...72 V in operation; 29 V for AC circuit 48 V drop-out; 29 V for DC circuit 48...72 V drop-out

Typical current consumption

280 mA at 48 V AC I maximum while closing with LUB12; 280 mA at 48 V AC I maximum while closing with LUB32; 280 mA at 48 V AC I maximum while closing with LUB38; 280 mA at 48...72 V DC I maximum while closing with LUB12; 280 mA at 48...72 V DC I maximum while closing with LUB32; 280 mA at 48...72 V DC I maximum while closing with LUB38; 35 mA at 48 V AC I rms sealed with LUB12; 45 mA at 48 V AC I rms sealed with LUB32; 45 mA at 48 V AC I rms sealed with LUB38; 35 mA at 48...72 V DC I rms sealed with LUB12; 45 mA at 48...72 V DC I rms sealed with LUB32; 45 mA at 48...72 V DC I rms sealed with LUB38

Heat dissipation

2 W for control circuit with LUB12; 3 W for control circuit with LUB32; 3 W for control circuit with LUB38

Operating time

35 ms opening with LUB12 for control circuit; 35 ms opening with LUB32 for control circuit; 35 ms opening with LUB38 for control circuit; 60 ms closing with LUB12 for control circuit; 60 ms closing with LUB32 for control circuit; 60 ms closing with LUB38 for control circuit

Standards

EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier

Product certifications

CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine

[Ui] rated insulation voltage

690 V conforming to IEC 60947-6-2; 600 V conforming to UL 60947-4-1; 600 V conforming to CSA C22.2 No 60947-4-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-6-2

Safe separation of circuit

400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1

Fixing mode

Plug-in (front face)

Width

45 mm

Height

66 mm

Depth

60 mm

Product weight

0.135 kg

Compatibility code

LUCA

IP degree of protection

IP20 front panel and wired terminals conforming to IEC 60947-1; IP20 other faces conforming to IEC 60947-1; IP40 front panel outside connection zone conforming to IEC 60947-1

Protective treatment

TH conforming to IEC 60068

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

2000 m

Fire resistance

960 °C parts supporting live components conforming to IEC 60695-2-12; 650 °C conforming to IEC 60695-2-12

Shock resistance

10 gn power poles open conforming to IEC 60068-2-27; 15 gn power poles closed conforming to IEC 60068-2-27

Vibration resistance

2 gn, 5…300 Hz, power poles open conforming to IEC 60068-2-6; 4 gn, 5…300 Hz, power poles closed conforming to IEC 60068-2-6

Resistance to electrostatic discharge

8 kV level 3 in open air conforming to IEC 61000-4-2; 8 kV level 4 on contact conforming to IEC 61000-4-2

Non-dissipating shock wave

1 kV serial mode conforming to IEC 60947-6-2; 2 kV common mode conforming to IEC 60947-6-2

Resistance to radiated fields

10 V/m 3 conforming to IEC 61000-4-3

Resistance to fast transients

2 kV class 3 serial link conforming to IEC 61000-4-4; 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4

Immunity to radioelectric fields

10 V conforming to IEC 61000-4-6

Immunity to microbreaks

3 ms

Immunity to voltage dips

70 % / 500 ms conforming to IEC 61000-4-11

Warranty (in months)

18

EAN

3389110363975

HS Code

8536.30
