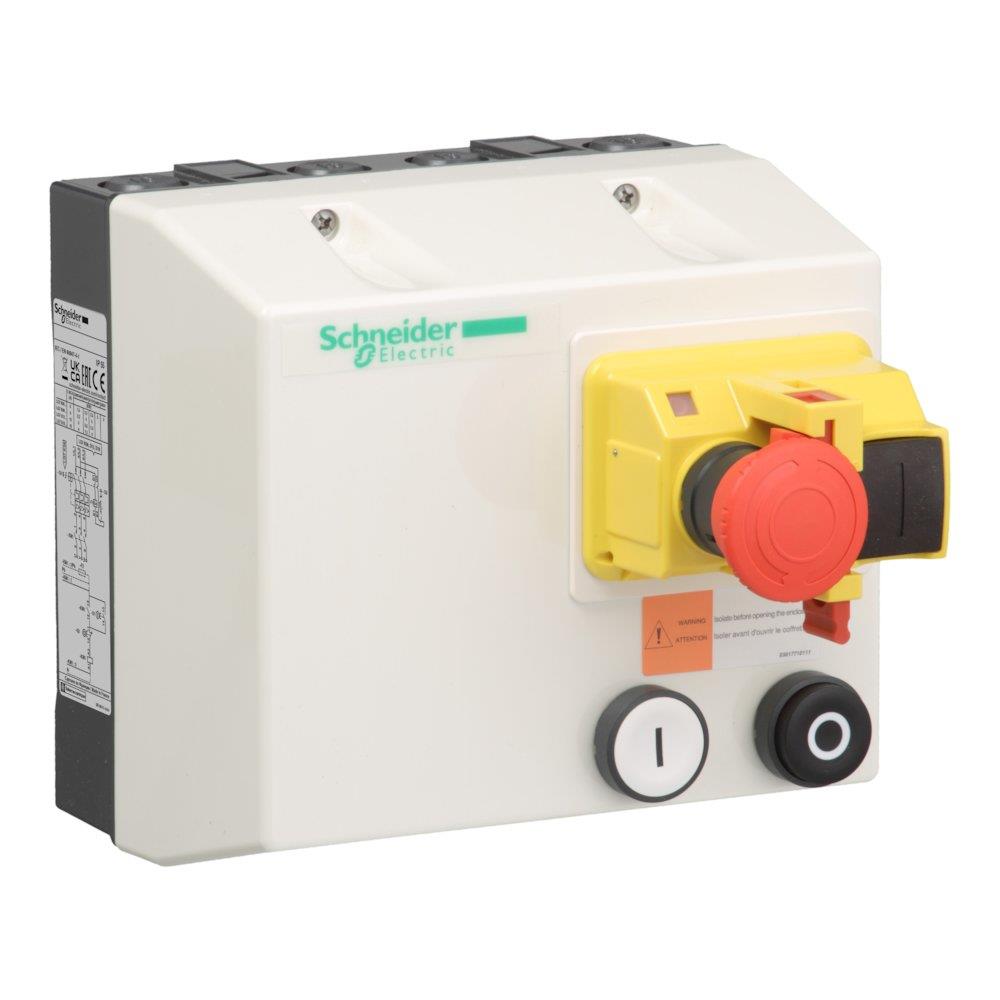

Schneider LJ7K Motor Starter - 400V, 0.75kW, 65

Schneider LJ7K Motor Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 400 V, power 0.75 kW, protection class (ip) 65. Supplied under manufacturer part number LJ7K06Q707, EAN 3389110787320, HS code 8537.10, country of origin France.

Product type

Motor starters

Product group

Components for panels and boxes

Voltage

400 V

Power

0.75 kW

Protection class (IP)

65

REACH SVHC substance above 0.1%

Lead, Octamethylcyclotetrasiloxane, Octrizole

Carbon footprint (EPD)

20.2373 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85371098

HS code

8537.10

Manufacturer part number

LJ7K06Q707

Range

TeSys

Product name

TeSys LJ

Device short name

LJ7K

Product or component type

Enclosed DOL starter

Device application

Safety

Utilisation category

AC-3

Device composition

Contactor; Control transformer; Circuit-breaker

Motor power kW

0.75 kW at 380/400 V AC 50 Hz

Thermal protection adjustment range

1.6…2.5 A

[Uc] control circuit voltage

24 V AC 50/60 Hz

Control type

Push-button start white I; Push-button stop black O; Mushroom head push-button emergency stop red

Cable entry number

4 2 Pg 13 + 2 Pg 16 top; 4 2 Pg 13 + 2 Pg 16 bottom

Width

175 mm

Height

165 mm

Depth

177 mm

Product weight

2.27 kg

Standards

IEC 60204-1; IEC 60947-4-1

Material

Polycarbonate

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 60529

Environmental characteristic

Standard environment

Warranty (in months)

18

EAN

3389110787320

HS Code

8537.10

• EAN 3389110787320
• MPN LJ7K06Q707
