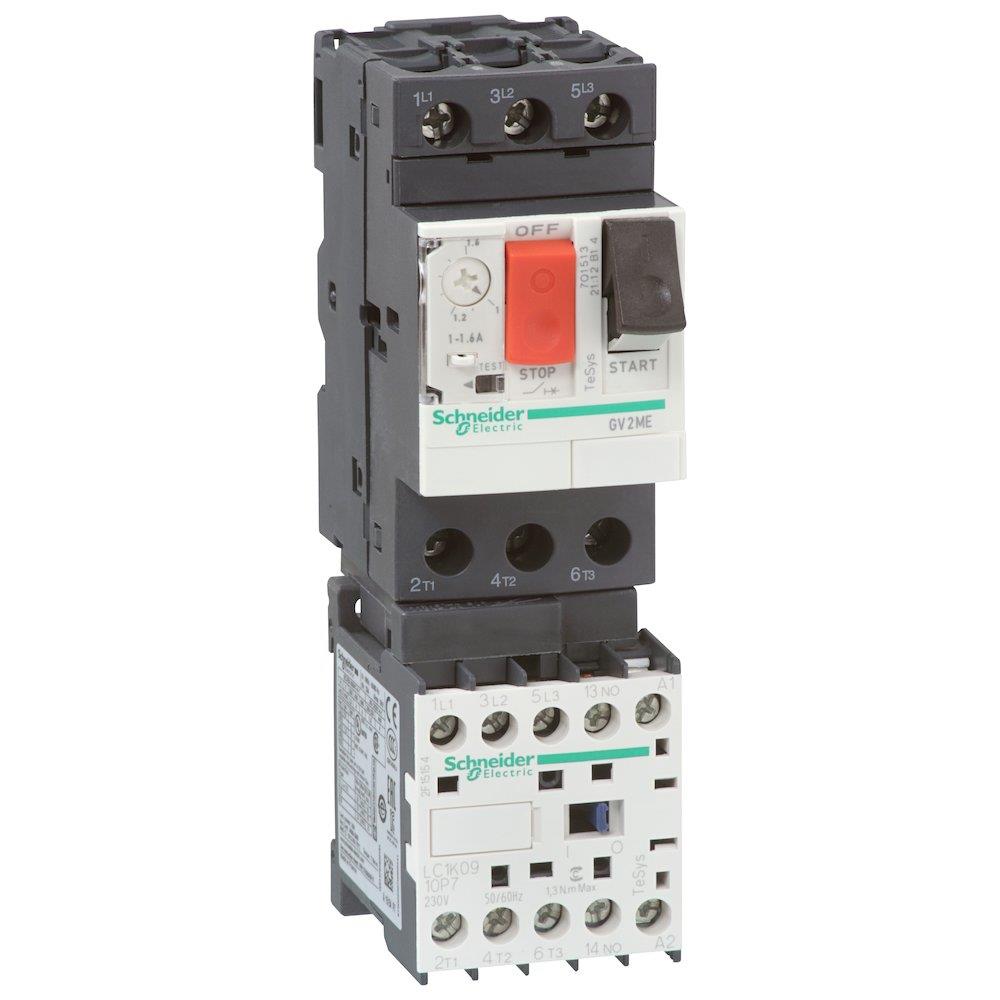

Schneider GV2ME Combination Starter - 24V 3389110948684

Schneider GV2ME Combination Starter. Motor starters (Electrical Engineering / Components for panels and boxes). Principal data: voltage 24 V. Supplied under manufacturer part number GV2ME08K1BW3, EAN 3389110948684, HS code 8537.10, country of origin France.

Product type

Motor starters

Product group

Components for panels and boxes

Voltage

24 V

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

3.3464 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85371098

HS code

8537.10

Manufacturer part number

GV2ME08K1BW3

Range

TeSys

Device short name

GV2ME

Product or component type

Motor starter

Motor starter type

Non reversing

Poles description

3P

Utilisation category

AC-3; AC-3e

Motor power kW

1.1 kW at 400/415 V AC 50/60 Hz; 1.5 kW at 400/415 V AC 50/60 Hz; 1.5 kW at 440 V AC 50/60 Hz; 1.5 kW at 500 V AC 50/60 Hz; 2.2 kW at 500 V AC 50/60 Hz

[Uc] control circuit voltage

24 V DC

Magnetic tripping current

51 A

Device composition

1 combination block GV2AF01; 1 motor circuit breaker type GV2ME; 1 3-pole contactor

Coordination type

Type 1

thermal protection adjustment range

2.5…4 A

Breaking capacity

50 kA Iq at 400/415 V AC 50/60 Hz conforming to IEC 60947-4-1; 50 kA Iq at 440 V AC 50/60 Hz conforming to IEC 60947-4-1; 50 kA Iq at 500 V AC 50/60 Hz conforming to IEC 60947-4-1

Product weight

0.46 kg

Height

152 mm

Width

45 mm

Depth

87 mm

Number of Units in Package 1

1

Number of Units in Package 2

12

Warranty (in months)

18

EAN

3389110948684

HS Code

8537.10

• EAN 3389110948684
• MPN GV2ME08K1BW3
